Custom-Made Hydraulic Cylinders: Superior Value, Ideal for Harsh Conditions

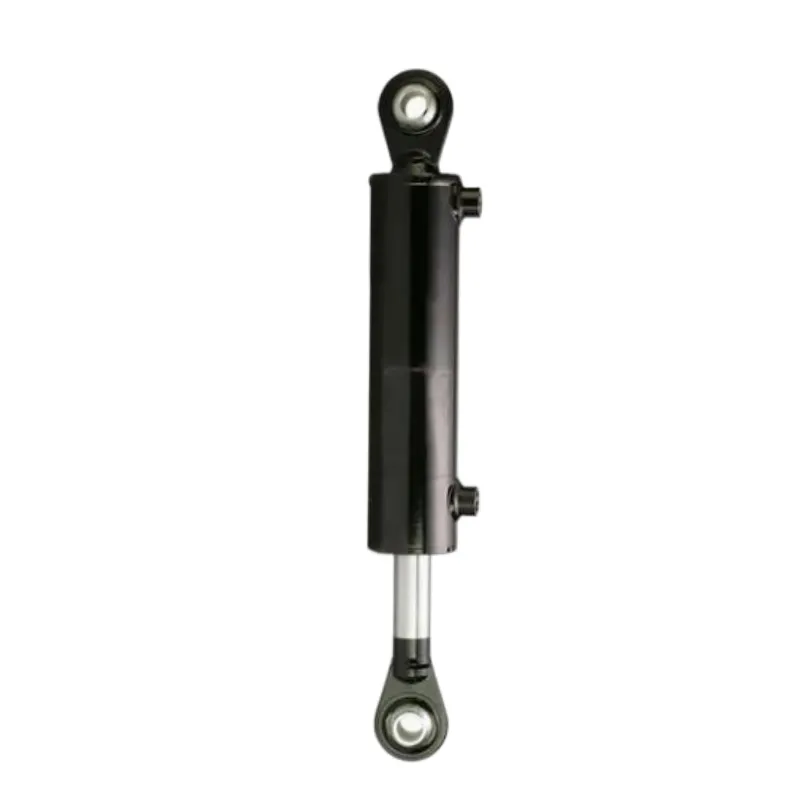

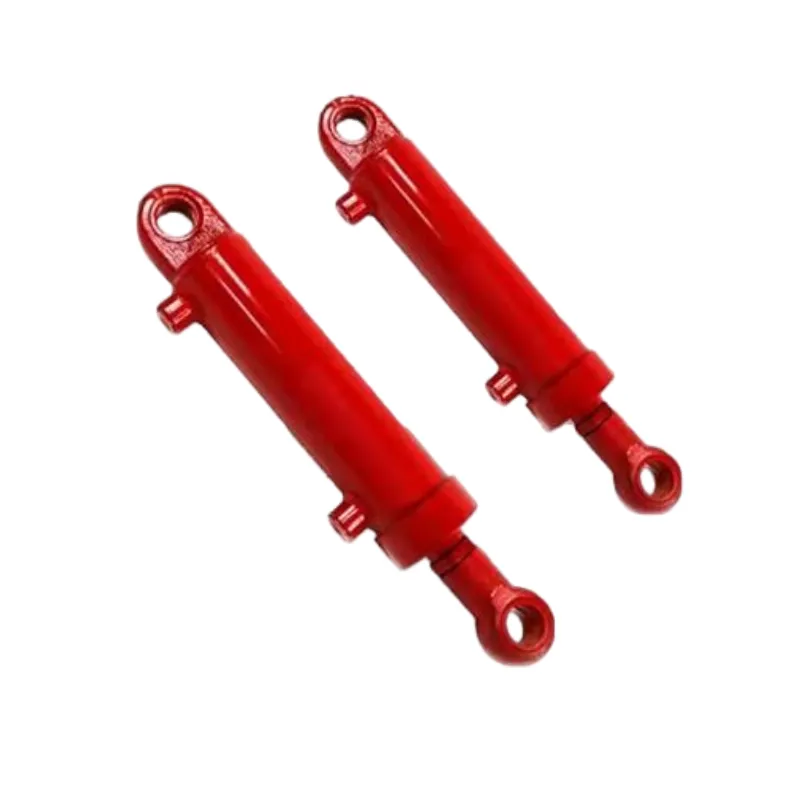

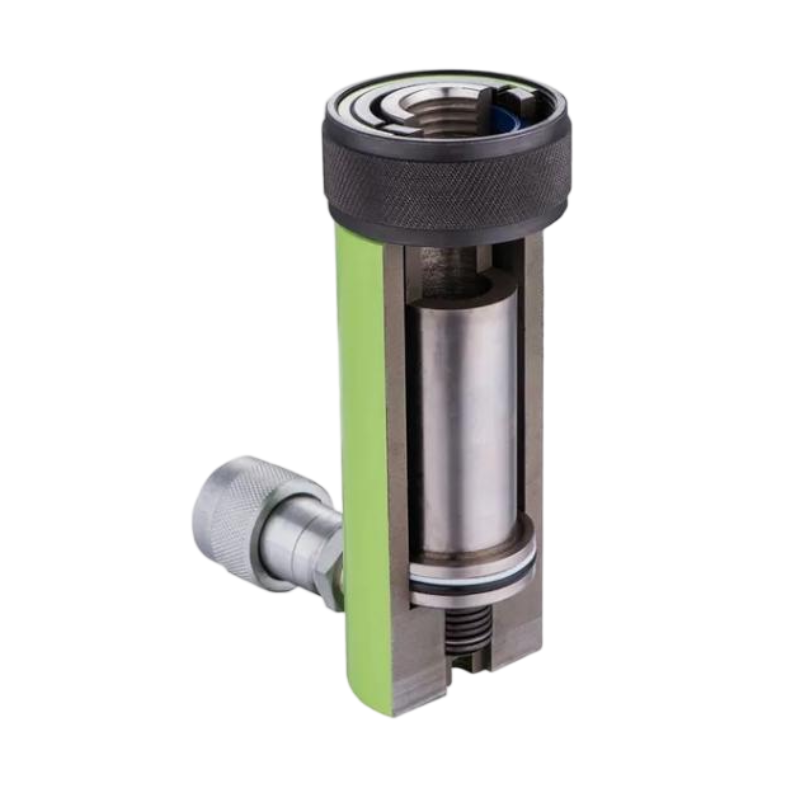

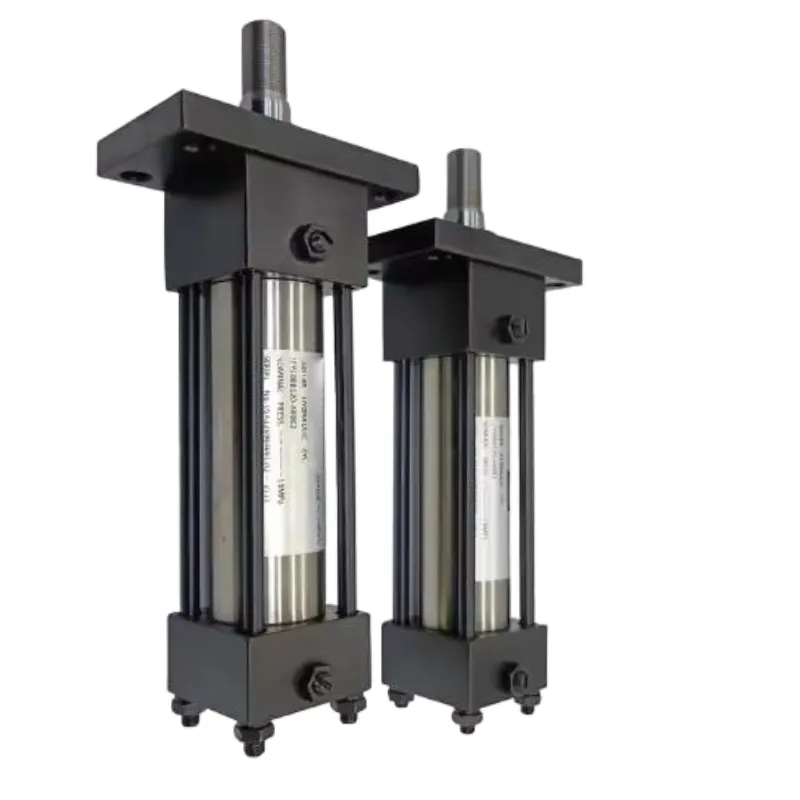

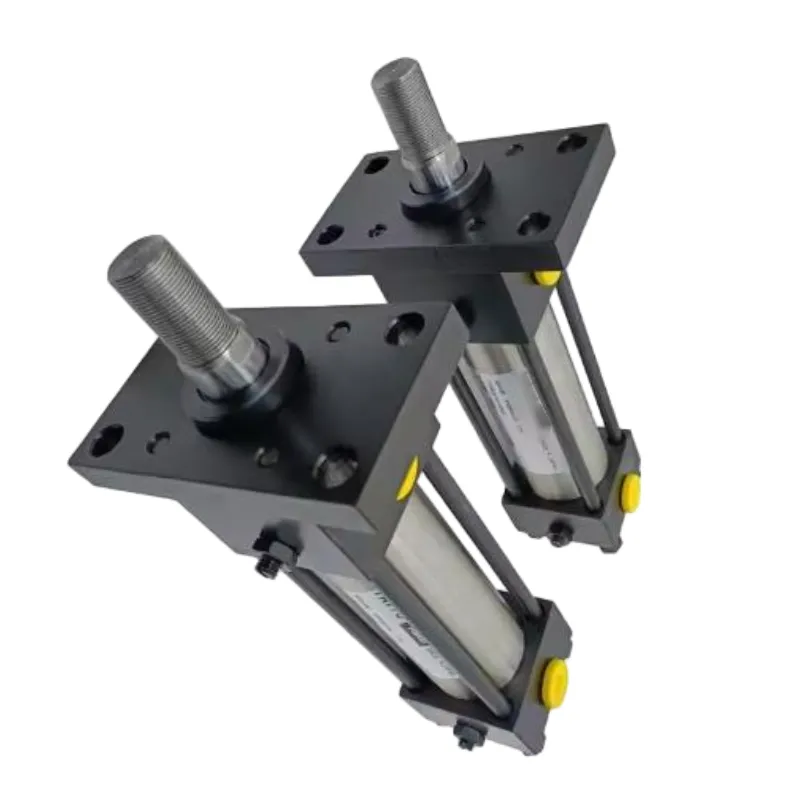

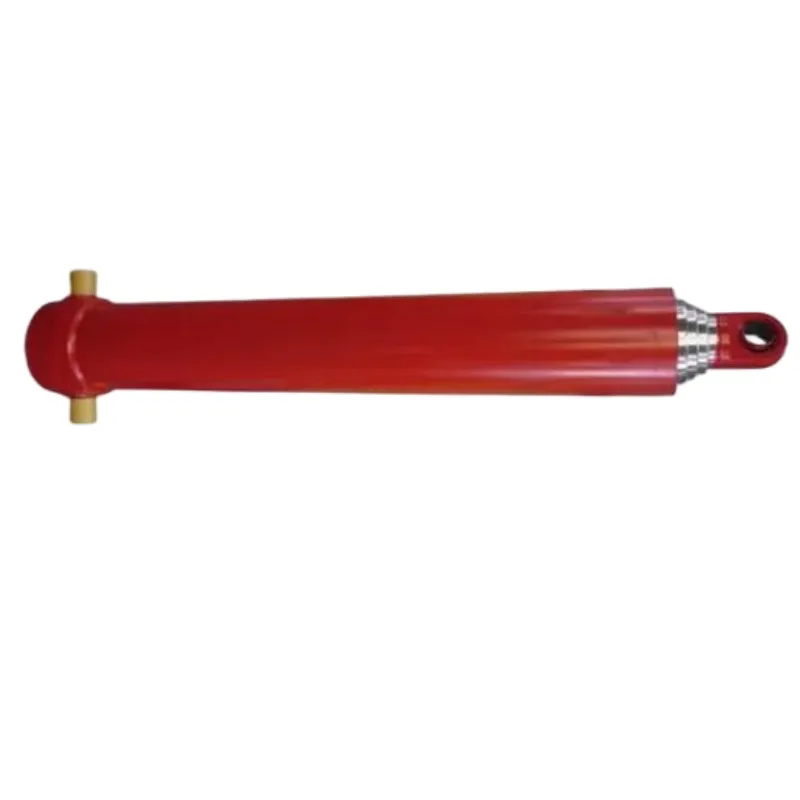

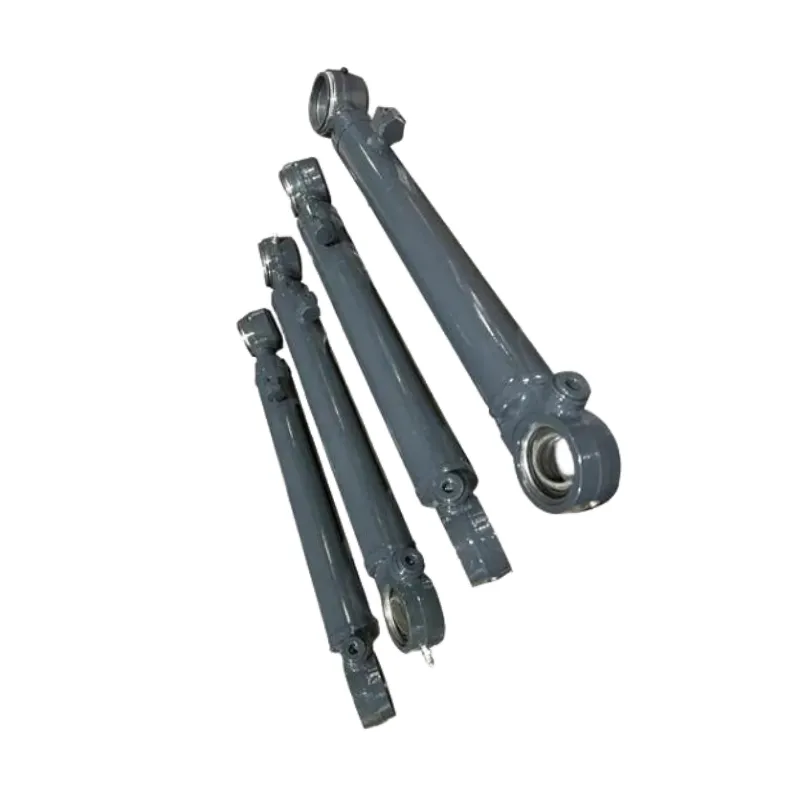

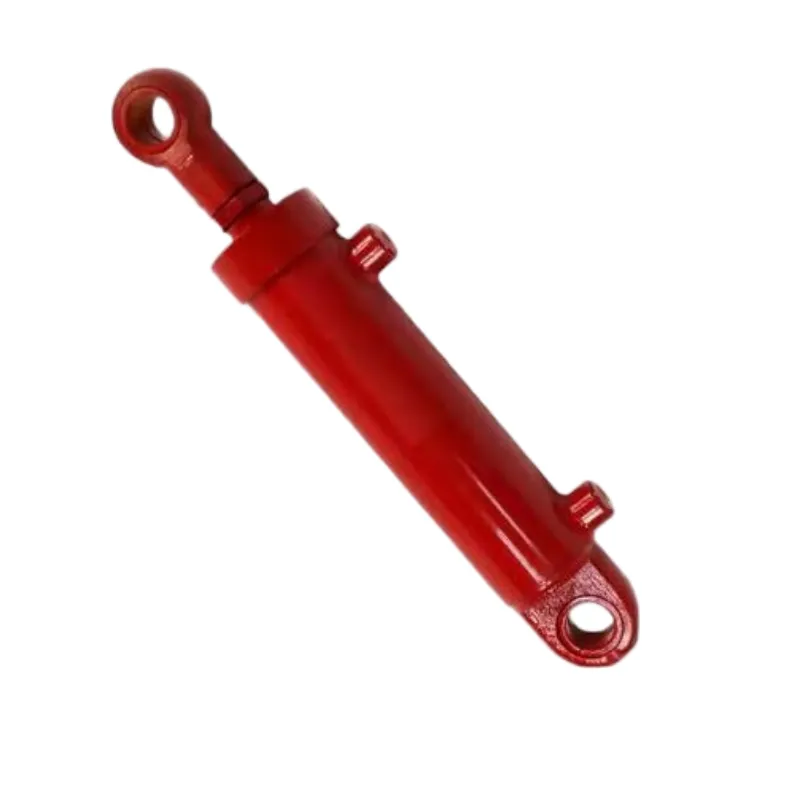

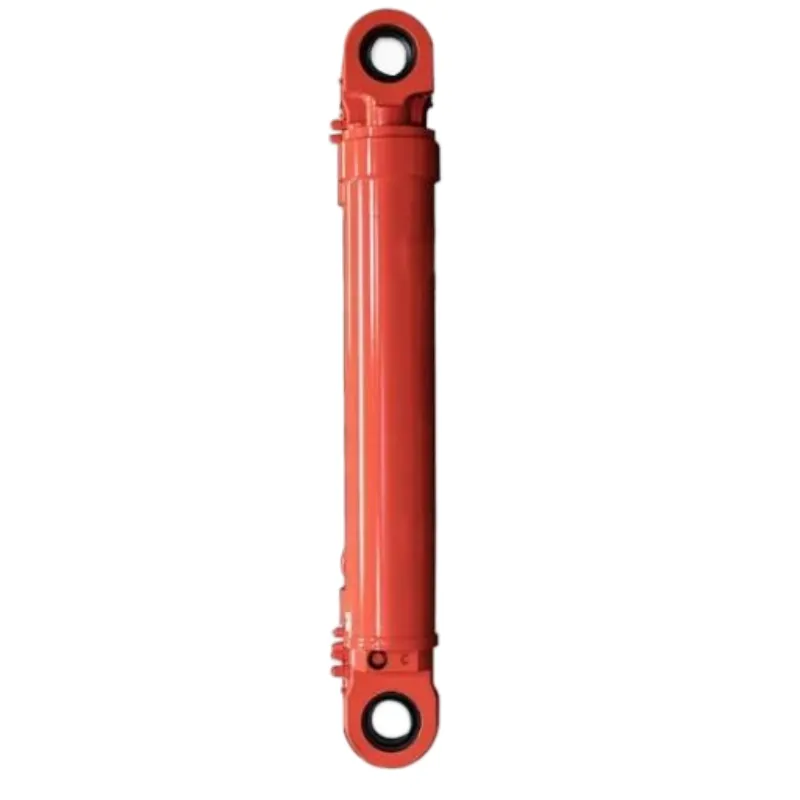

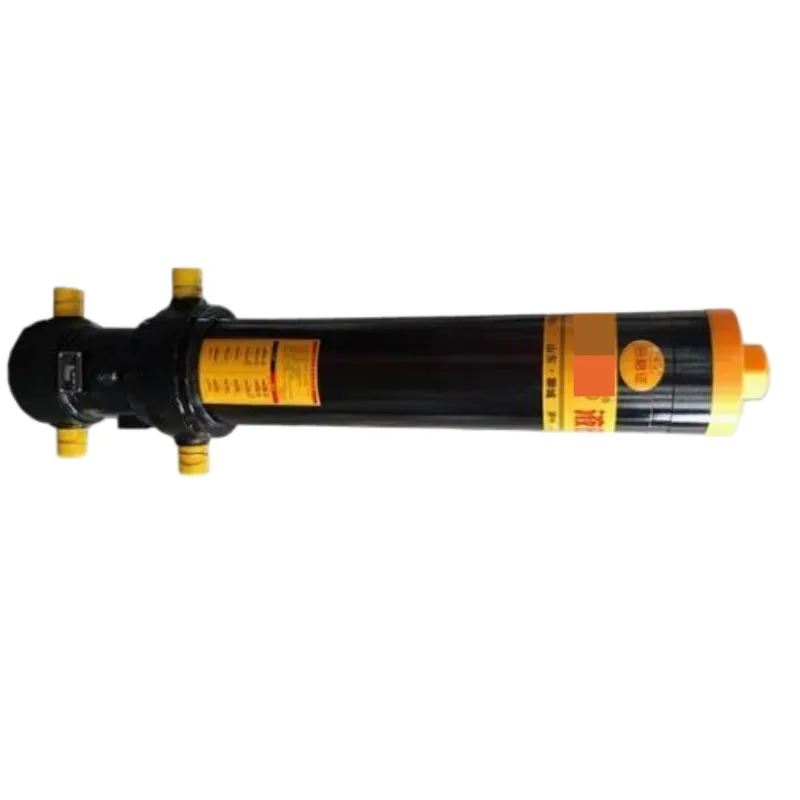

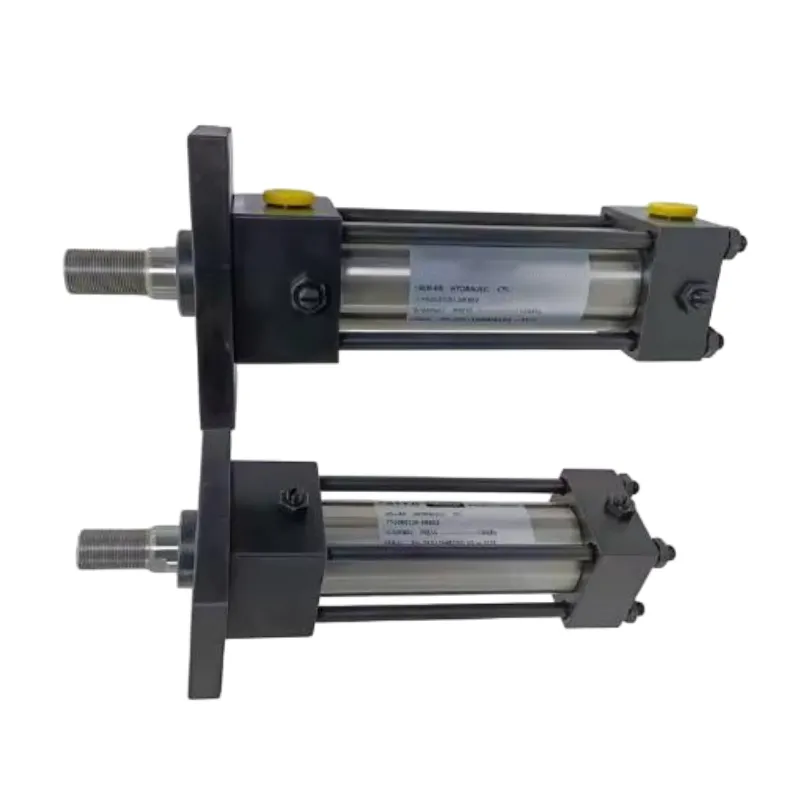

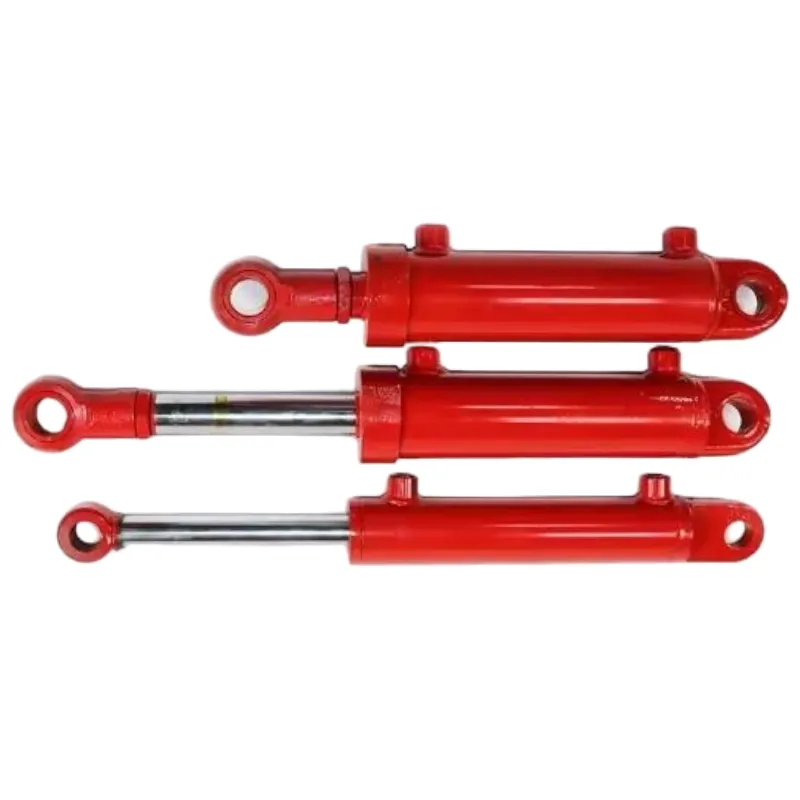

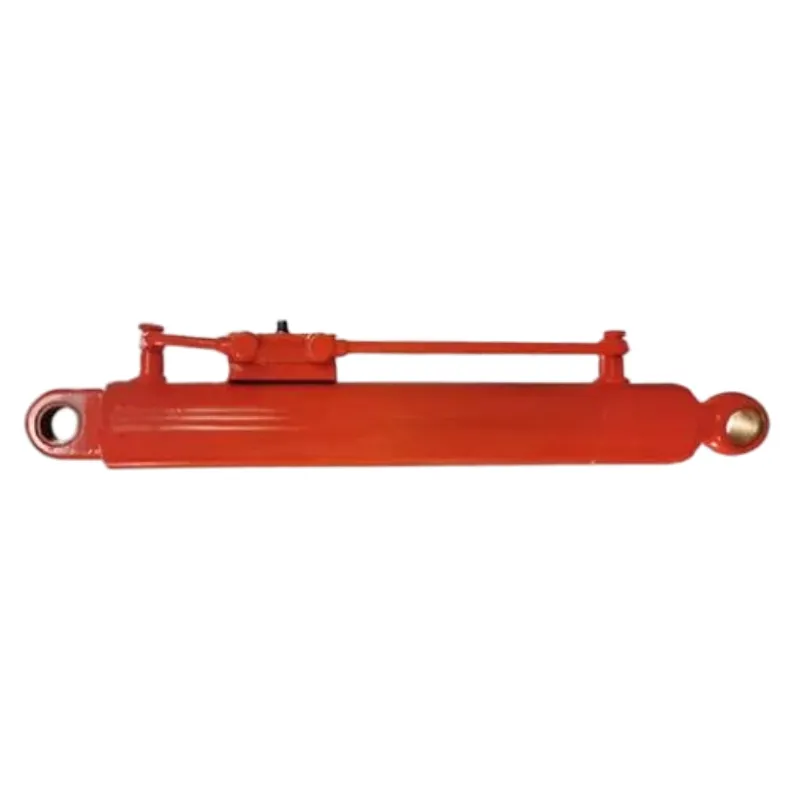

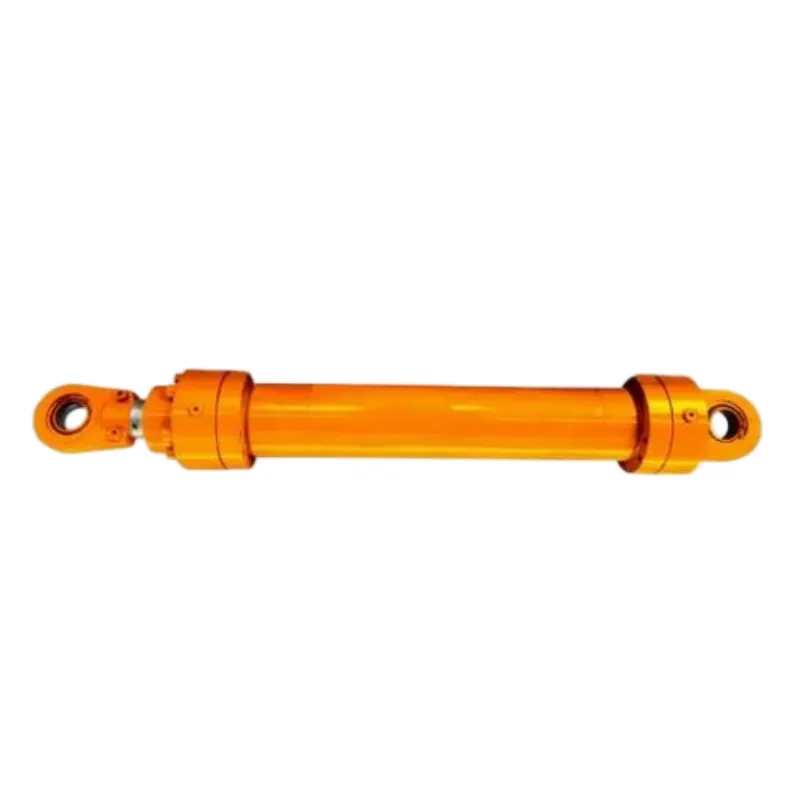

With 10 years of expertise and an integrated supply chain, we stand as a professional manufacturer of high-quality non-standard custom hydraulic cylinders, offering an extensive range that includes single/double-acting, telescopic, plunger, piston, tie rod, and welded types.

Our integrated supply chain ensures streamlined sourcing of premium materials and efficient production processes, enabling our engineers to craft cylinders tailored to your exact dimensions, pressure requirements, and mounting specifications with greater agility. These top-grade materials, paired with rigorous testing and advanced facilities, guarantee durability even in harsh environments and pinpoint precision.

A standout advantage: our custom cylinders deliver superior value compared to standard models. They come at the same production cost but with higher quality. While standard options may have lower upfront prices, their poor fit leads to increased long-term costs from maintenance, inefficiency, and early replacement. Our tailored solutions, supported by a robust supply chain, minimize energy loss, reduce wear, extend service life, and cut overall expenses significantly.

We provide direct pricing, comprehensive after-sales support, and cater to industries like construction and agriculture. Explore our case images to see real-world applications and exceptional craftsmanship.

Inquire Now

Connection Method Table for Cylinder Head and Cylinder Body

Number	Connection method	Remarks
1	Cylinder head ear ring with bushing
2	Cylinder head ear ring with ball bearing
3	Hinge shaft	For cylinder diameter
4	End flange	D≥φ80
5	Middle flange	(Refers to key connection)

Connecting Method Table for Piston Rod Ends

Number	Connection method	Remarks
1	Thread at the end of the rod
2	Threaded end of the rod	Applicable for cylinder diameters D ≥ 463
3	End cap with external thread, ear ring with insert sleeve
4	End of the rod with internal thread, rod head ear ring with bushing	Applicable for cylinder diameters D ≥ 463
5	End of the rod with external thread, rod head, ear ring with joint bearing
6	Rod end with internal thread, rod head, ear ring with joint bearing	Applicable for cylinder diameters D ≥ 463
7	Integral piston rod ear ring with bushing	Only applicable to cylinder diameters of φ40 and φ50
8	Integral piston rod ear with joint bearing	Only applicable to cylinder diameters of φ40 and φ50

Technical Specifications

Model	Nominal Pressure (MPa)	Cylinder Bore D(mm)	Speed Ratio						The minimum travel for the connection between the non-parallel shaft and the middle flange (mm)
			1.33		1.46		2
			Rod Diameter	Maximum Stroke	Rod Diameter	Maximum Stroke	Rod Diameter	Maximum Stroke
			d(mm)	S(mm)	d(mm)	S(mm)	d(mm)	S(mm)
KC-HSGL01-40/dE	16	40	20	320	22	400	25	480	30
KC-HSGL01-50/dE		50	25	400	28	500	32	600	40
KC-HSGL01-63/dE		63	32	500	35	630	45	750	40
KC-HSGL01-80/dE		80	40	640	45	800	55	950	40
KC-HSGK01-80/dE		80	40	640	45	800	/	/	35
KC-HSGK01-90/dE		90	45	720	50	900	63	1080	45
KC-HSGK01-100/dE		100	50	800	55	1000	70	1200	50
KC-HSGK01-110/dE		110	55	880	63	1100	80	1320	40
KC-HSGK01-125/dE		125	63	1000	70	1250	90	1500	45
KC-HSGK01-140/dE		140	70	1120	80	1400	100	1680	45
KC-HSGK01-150/dE		150	75	1200	85	1500	105	1800	50
KC-HSGK01-160/dE		160	80	1280	90	1600	110	1900	55
KC-HSGK01-180/dE		180	90	1450	100	1800	125	2150
KC-HSGK01-200/dE		200	100	1600	110	2000	140	2400
KC-HSGK01-220/dE		220	110	1760	125	2200	160	2640
KC-HSGK01-250/dE		250	125	2000	140	2500	180	3000

FAQ

How do you ensure product reliability without in-house production?

We hold ISO 9001/TS 16949 certifications and have over 15 years of hydraulic manufacturing experience. Each batch undergoes a 5-stage quality verification, including pressure cycle testing and material composition analysis.
How to handle component failures during the warranty period?

We offer a 12-month limited warranty (covering manufacturing defects). Simply send a diagnostic video via our platform, and our engineers will confirm repair/replacement solutions online.
Can technical drawings be provided for custom projects?

After confirming the deposit, engineering schematics can be shared under an NDA. Our advanced production system shortens lead times by 30% compared to traditional suppliers.
What is the minimum order quantity (MOQ) for hydraulic valves?

Standard models have a flexible MOQ of 50 pieces. Sample orders start from 20 pieces.
How to handle urgent breakdowns?

Our national partners stock critical spare parts in 6 regional centers, with priority delivery services available at major ports.
What are the payment terms for new customers?

A 50% T/T advance payment is required for the first transaction. Payment terms can be further discussed after three consecutive successful deliveries.
Are certification documents available?

Each shipment includes CE/ISO/REACH certificates. Special certifications (e.g., ATEX) require 45 days' prior notice.
Can you provide samples?

Yes. We can supply samples for your testing and verification needs. For sample requests, please inform us of the specific product model, quantity, and any special requirements. We’ll communicate details like sample preparation time, shipping arrangements, and relevant costs (e.g., sample production fees, logistics charges; partial costs may be negotiable under certain conditions).
