For Kawasaki K3V series (Originals): 100% Interchangeable

KC-K3V Series is a 100% Direct Replacement for Kawasaki K3V Series hydraulic pumps, offering the following key advantages:

Seamless Compatibility: Direct replacement without system modifications, significantly reducing costs and downtime.

Warranty Assurance: Comes with a 12-month warranty, matching OEM reliability standards.

High Performance:KC-K3V series pumps are high-pressure axial piston pumps with a swashplate design. They feature variable displacement for flexible flow adjustment, high operating pressure to handle heavy loads, and an open-center system for efficient oil flow control. Additionally, they offer excellent durability, stable operation under harsh conditions, and compact structure for easy integration.

Wide Applicability:Hydraulic excavators

Wheel loaders

Mining dump trucks

Road rollers

Concrete mixers

Other heavy-duty hydraulic-driven equipment requiring high-pressure and reliable power output.

Get Optimal Quote Next Prodcut

Specific Model & Advantages

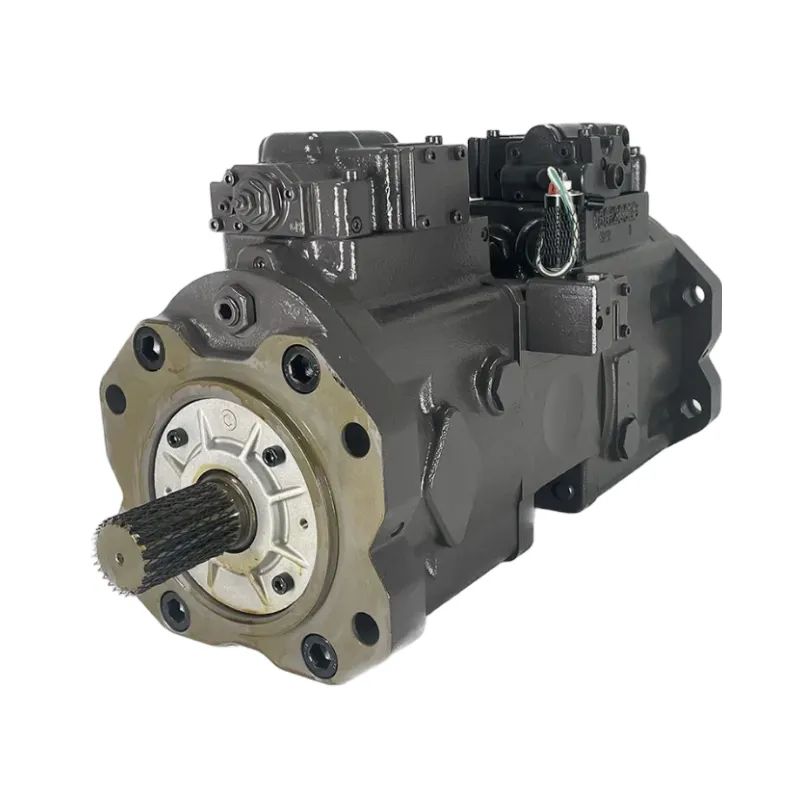

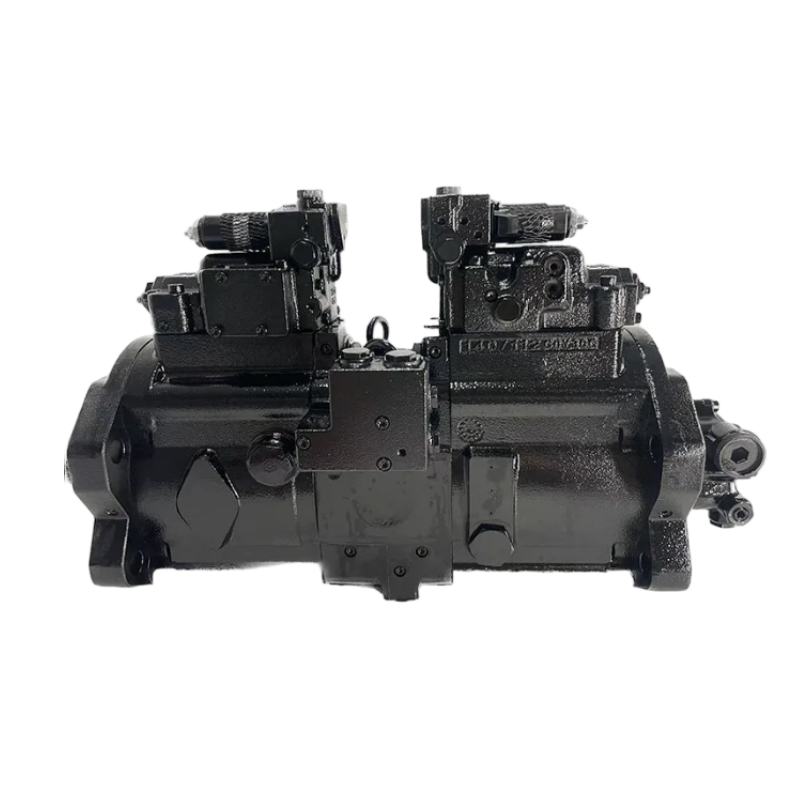

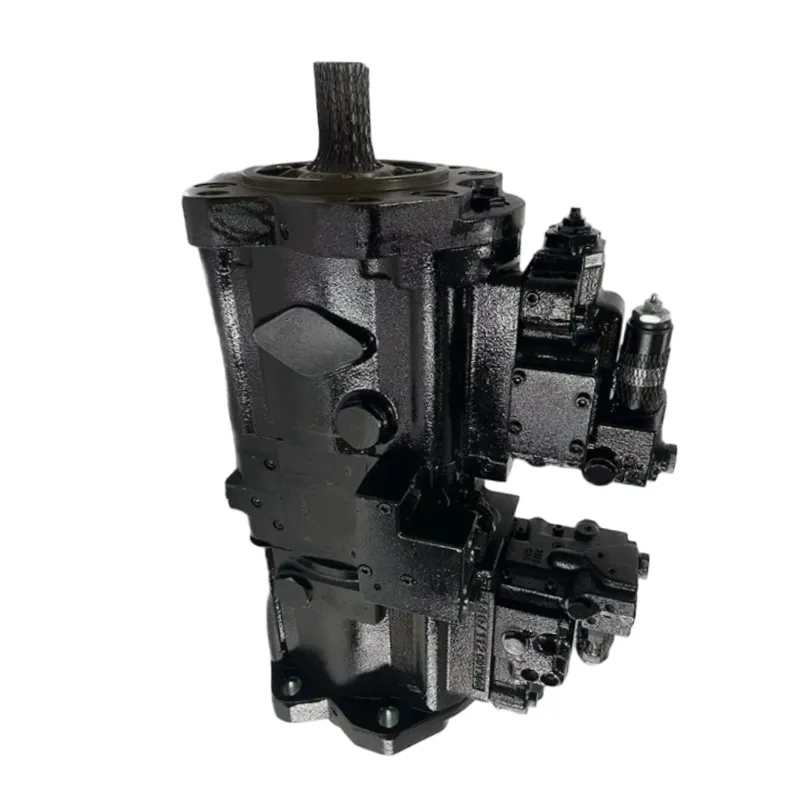

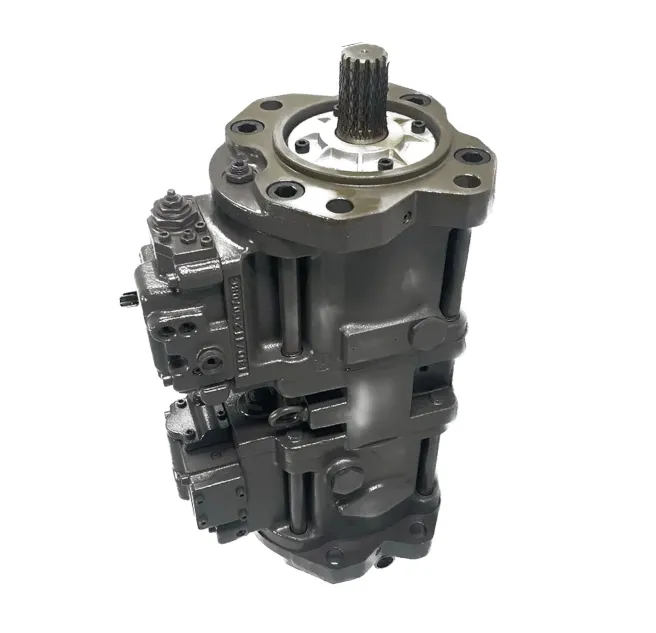

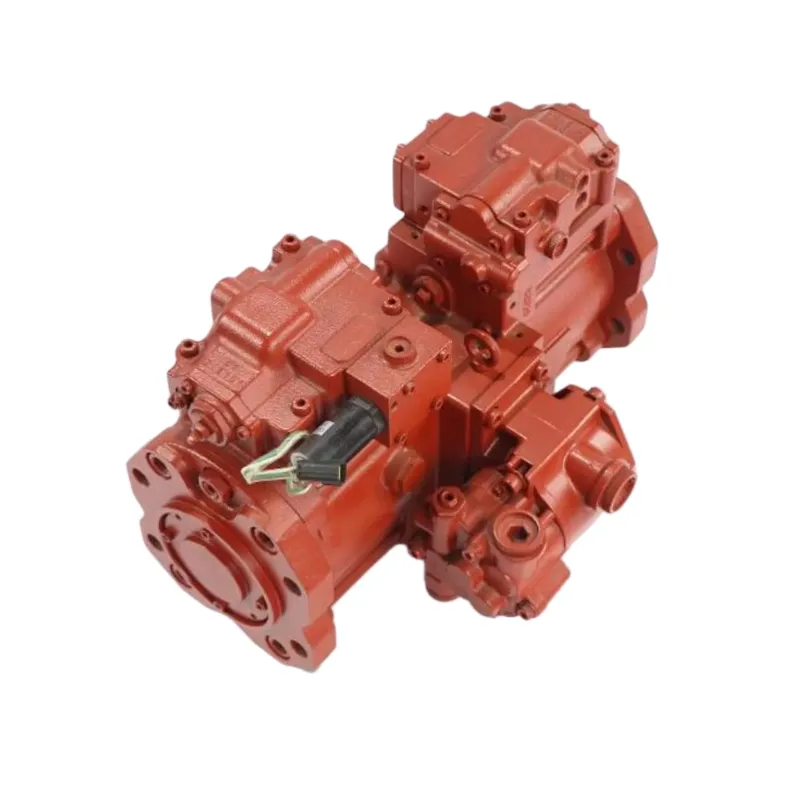

KC-K3V63/KC-K3V63DT

100% Interchangeable Replacement | For Kawasaki K3V63/K3V63DT

The Kawasaki K3V series pumps are high-pressure axial piston pumps with a swashplate design. They boast variable displacement for flexible flow adjustment, high operating pressure to handle heavy loads, and an open-center system for efficient oil flow control, ensuring excellent durability and stable operation even in harsh conditions. Notably, the KC - K3V series can be a complete replacement for the Kawasaki K3V series, offering comparable performance and compatibility in various applications.

Technical Data

Type	Displacement(cm³/rev)	Rated Pressure (MPa)	Maximum Pressure (MPa)	Rated Speed (rpm)	Maximum Speed (rpm)
K3V63	63	32	39	2200	2800
K3V63DT	63	34.3	39.2	2200	2800

Application

Hydraulic Excavators: Komatsu PC200 - 8 uses the K3V63DT hydraulic pump. This excavator is suitable for medium - sized earthwork and mining operations, where the stable performance of the K3V pump ensures smooth bucket movement and arm operation.

Wheel Loaders: Caterpillar 950H incorporates the K3V series pump. It is mainly used in construction sites, quarries, and material handling in ports. The high - pressure capacity of the K3V pump helps the loader to efficiently load and transport bulk materials.

Mini - Excavators: Take the Yanmar ViO55 as an example, which may adopt the K3V series pump. This mini - excavator is often used in urban construction, landscaping, and indoor demolition projects. The compact and reliable K3V pump provides the necessary hydraulic power for its precise operation.
