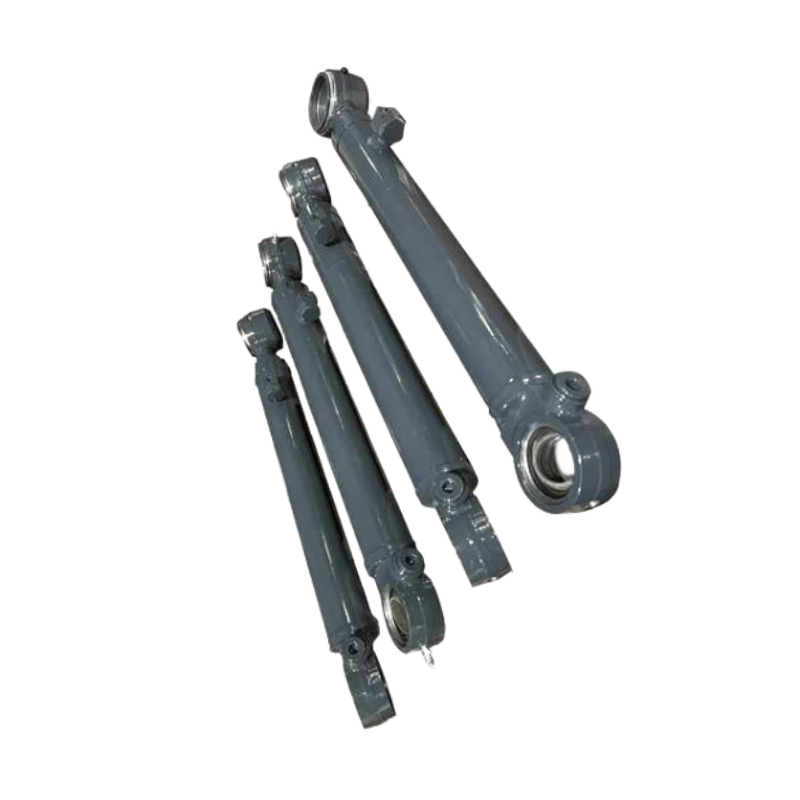

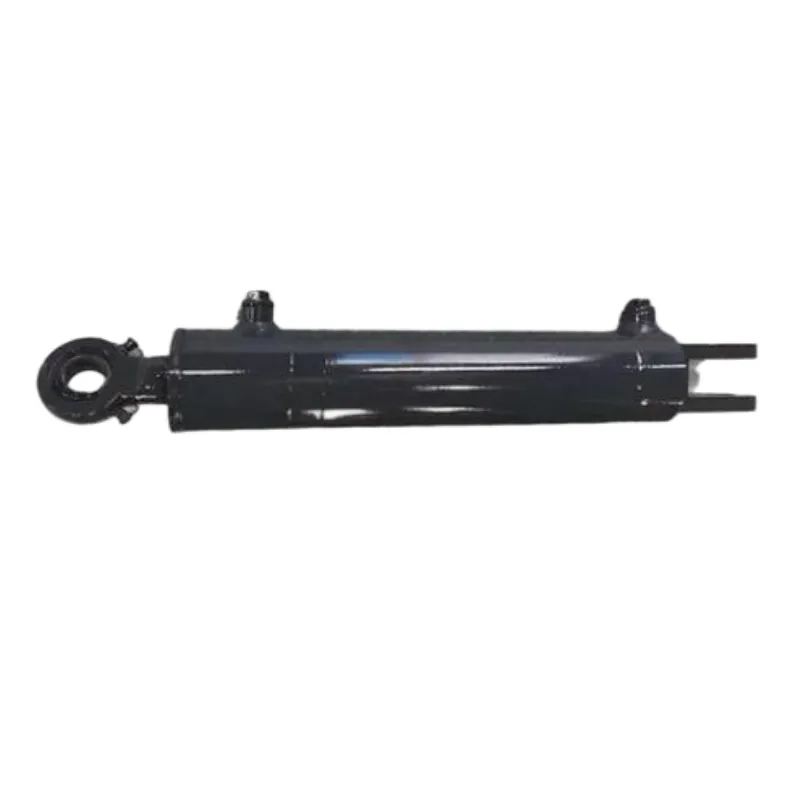

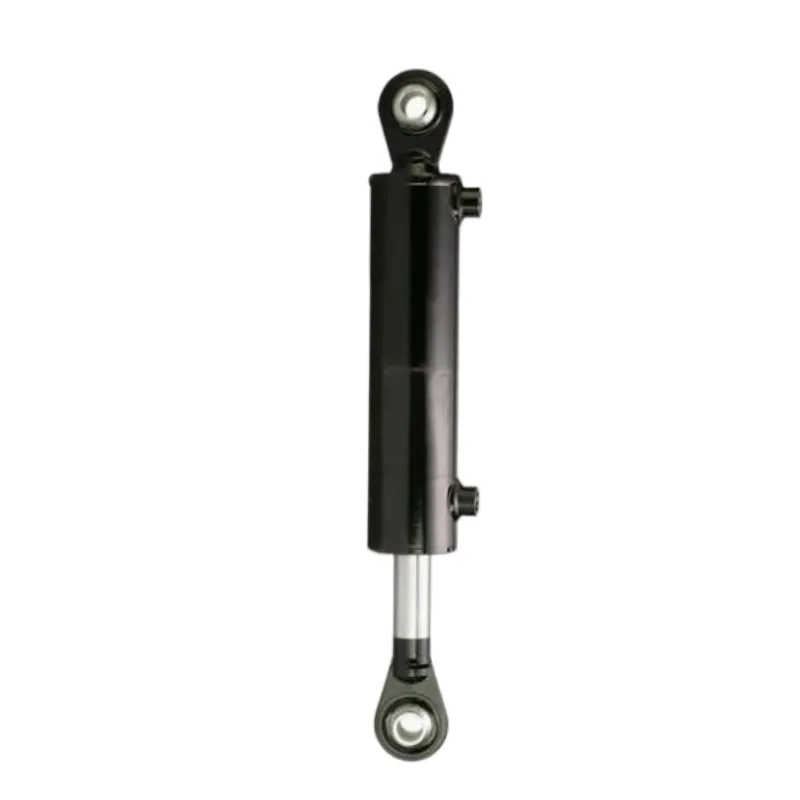

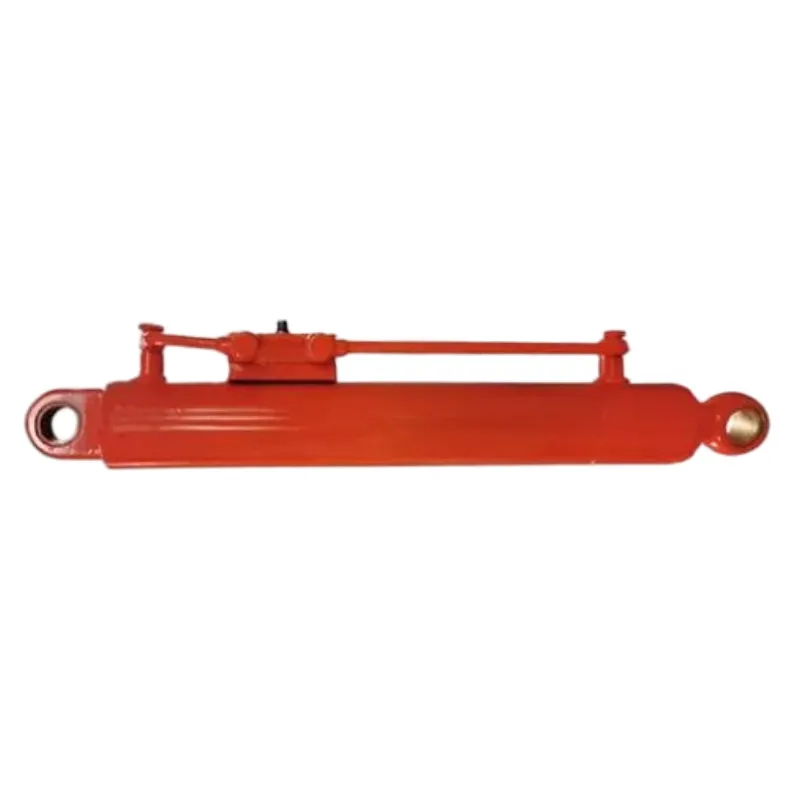

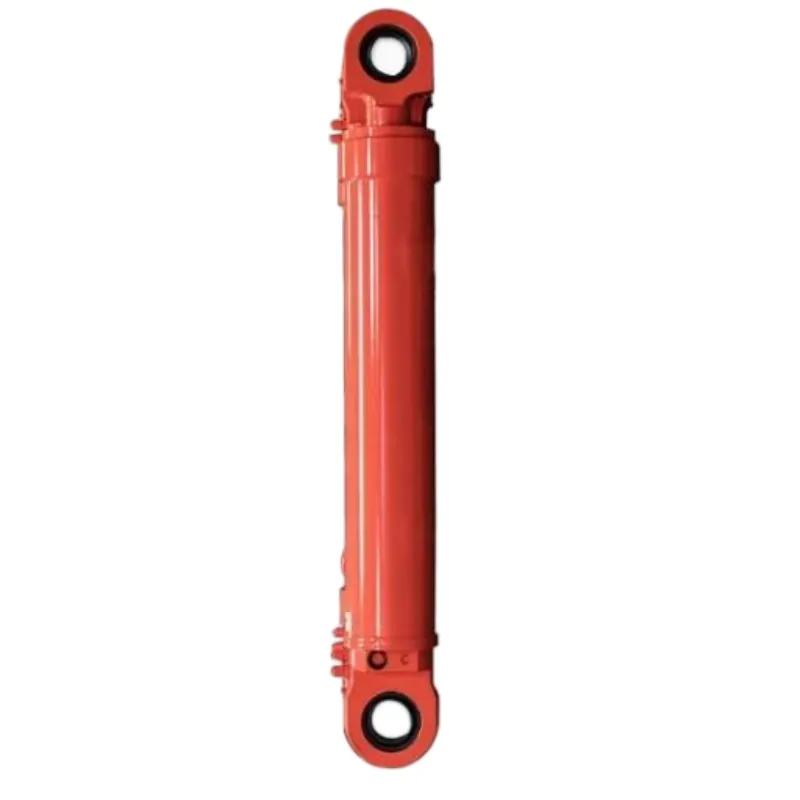

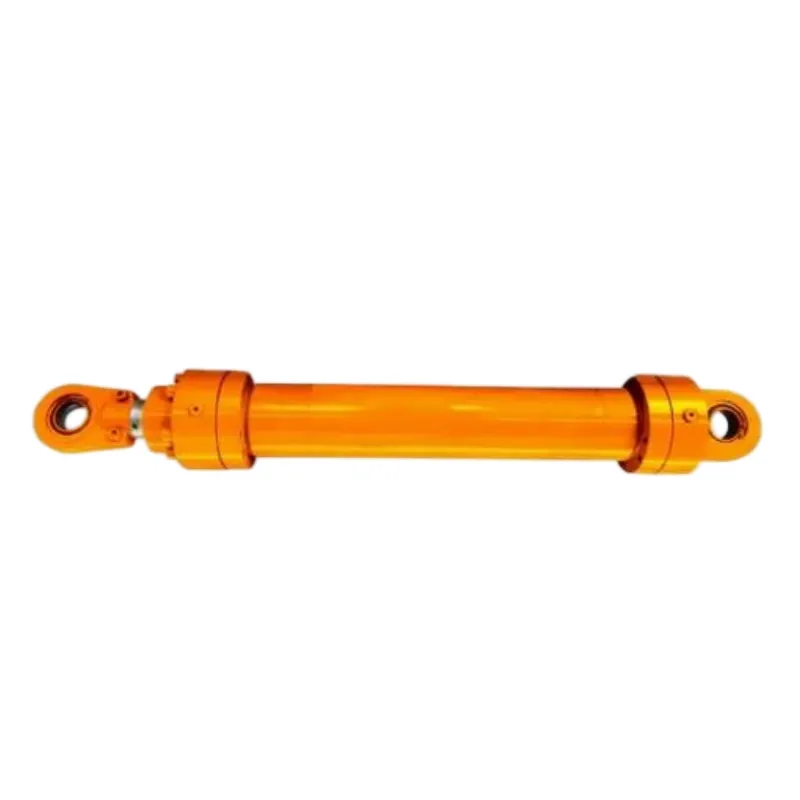

KC-ISO 6022 Servo Cylinder Industrial Machinery Agricultural Machinery

ISO 6022 is an international standard defining mounting dimensions for single-rod hydraulic cylinders operating at 25 MPa (250 bar).

Inquire Now Next Prodcut

Advantages

SM (Standardized Mounting): Interchangeable dimensions across manufacturers ensure easy replacement and compatibility .

HP (High Pressure): Continuous 250 bar (3,625 psi) pressure rating with static proof pressure up to 375 bar for heavy-duty operations .

DR (Durable Reliability): Heavy-duty steel construction, honed surfaces, and wear-resistant seals ensure long service life in harsh environments .

HS (High Stroke Length): Strokes up to 6 meters for extended linear motion requirements .

LC (Load Capacity): High thrust output (up to 300+ kN) for heavy machinery applications .

ER (Environmental Resistance): IP65/IP67 protection against dust, moisture, and corrosion .

MC (Multi-Control): Supports modular valve integration for precise pressure/flow control .

MD (Modular Design): Interchangeable accessories (e.g., clevis mounts, trunnions) enable flexible configurations .

LR (Low Maintenance): Simplified design reduces downtime and service costs .

FR (Fast Response): Hydraulic actuation ensures rapid motion control (up to 0.5 m/s) .

CM (Cost-Effective): Standardized production lowers manufacturing and replacement costs .

TS (Through-Shaft Option): Enables multi-cylinder setups for complex systems

Technical Data

Model	Cylinder diameter (mm)	Rod diameter (mm)	Rated pressure (MPa)	Maximum pressure (MPa)	Stroke range (mm)
ISO 6022	25-400	16-160	20	25	50-300

FAQ

How do you ensure product reliability without in-house production?

We hold ISO 9001/TS 16949 certifications and have over 15 years of hydraulic manufacturing experience. Each batch undergoes a 5-stage quality verification, including pressure cycle testing and material composition analysis.
How to handle component failures during the warranty period?

We offer a 12-month limited warranty (covering manufacturing defects). Simply send a diagnostic video via our platform, and our engineers will confirm repair/replacement solutions online.
Can technical drawings be provided for custom projects?

After confirming the deposit, engineering schematics can be shared under an NDA. Our advanced production system shortens lead times by 30% compared to traditional suppliers.
What is the minimum order quantity (MOQ) for hydraulic valves?

Standard models have a flexible MOQ of 50 pieces. Sample orders start from 20 pieces.
How to handle urgent breakdowns?

Our national partners stock critical spare parts in 6 regional centers, with priority delivery services available at major ports.
What are the payment terms for new customers?

A 50% T/T advance payment is required for the first transaction. Payment terms can be further discussed after three consecutive successful deliveries.
Are certification documents available?

Each shipment includes CE/ISO/REACH certificates. Special certifications (e.g., ATEX) require 45 days' prior notice.
Can you provide samples?

Yes. We can supply samples for your testing and verification needs. For sample requests, please inform us of the specific product model, quantity, and any special requirements. We’ll communicate details like sample preparation time, shipping arrangements, and relevant costs (e.g., sample production fees, logistics charges; partial costs may be negotiable under certain conditions).
