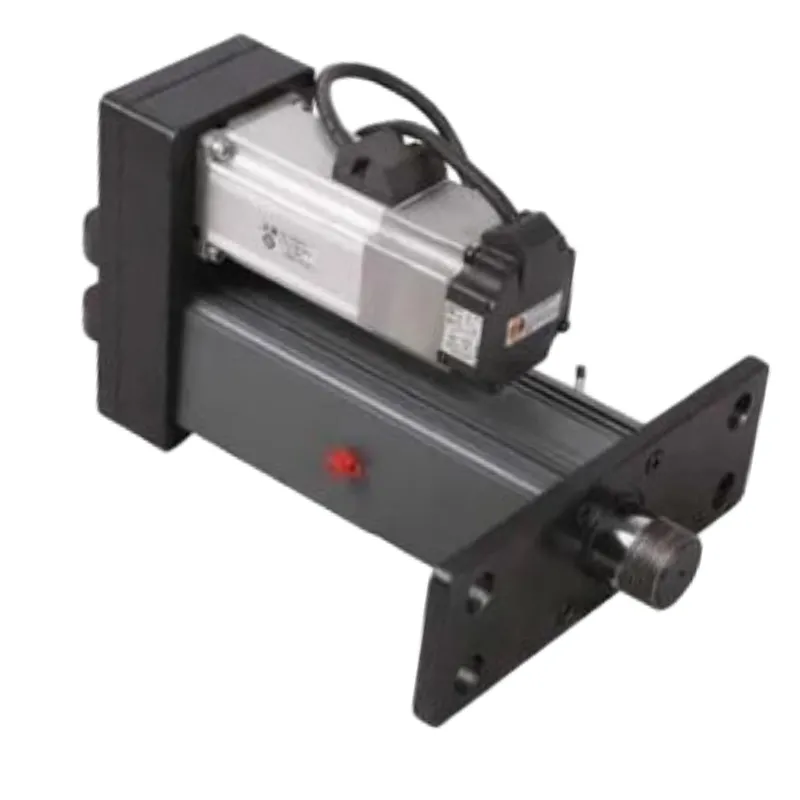

KC-IMB20 Tec series Servo Cylinder Industrial Machinery

The Lim-Tec IMB20 is a high-precision servo electric cylinder designed for industrial automation and robotics.

Inquire Now Next Prodcut

Advantages

HS (High Speed): Maximum speed 350 mm/s with rapid dynamic response.

HLC (High Load Capacity): Rated thrust 3,500 N (0.35 tons) for medium-duty applications.

EE (Energy Efficient): 100% continuous duty cycle reduces energy consumption vs. hydraulic systems.

LN (Low Noise): Optimized ball screw and gearbox design minimizes operational noise.

ER (Environmental Resistance): IP55/IP56 protection ensures reliability in dusty/moist environments.

AR (Anti-Rotation Mechanism): Built-in anti-rotation feature maintains positional stability under lateral loads.

MD (Modular Design): Interchangeable components for flexible multi-axis configurations.

LSL (Long Service Life): Heavy-duty ball screw and wear-resistant materials ensure >10,000 hours of operation.

DR (Dynamic Response): High acceleration/deceleration (up to 3 m/s²) for fast-cycle tasks.

PR (Programmable Control): Compatible with PLC/CNC systems for customizable motion profiles.

CC (Closed-Loop Control): Optional load sensors achieve 1% thrust accuracy for critical processes.

Technical Data

Model	Cylinder diameter (mm)	Rod diameter (mm)	Rated pressure (MPa)	Maximum pressure (MPa)	Stroke range (mm)
IMB20	20	10 - 14	20	25	50-500

FAQ

How do you ensure product reliability without in-house production?

We hold ISO 9001/TS 16949 certifications and have over 15 years of hydraulic manufacturing experience. Each batch undergoes a 5-stage quality verification, including pressure cycle testing and material composition analysis.
How to handle component failures during the warranty period?

We offer a 12-month limited warranty (covering manufacturing defects). Simply send a diagnostic video via our platform, and our engineers will confirm repair/replacement solutions online.
Can technical drawings be provided for custom projects?

After confirming the deposit, engineering schematics can be shared under an NDA. Our advanced production system shortens lead times by 30% compared to traditional suppliers.
What is the minimum order quantity (MOQ) for hydraulic valves?

Standard models have a flexible MOQ of 50 pieces. Sample orders start from 20 pieces.
How to handle urgent breakdowns?

Our national partners stock critical spare parts in 6 regional centers, with priority delivery services available at major ports.
What are the payment terms for new customers?

A 50% T/T advance payment is required for the first transaction. Payment terms can be further discussed after three consecutive successful deliveries.
Are certification documents available?

Each shipment includes CE/ISO/REACH certificates. Special certifications (e.g., ATEX) require 45 days' prior notice.
Can you provide samples?

Yes. We can supply samples for your testing and verification needs. For sample requests, please inform us of the specific product model, quantity, and any special requirements. We’ll communicate details like sample preparation time, shipping arrangements, and relevant costs (e.g., sample production fees, logistics charges; partial costs may be negotiable under certain conditions).
