Medium-sized Excavator

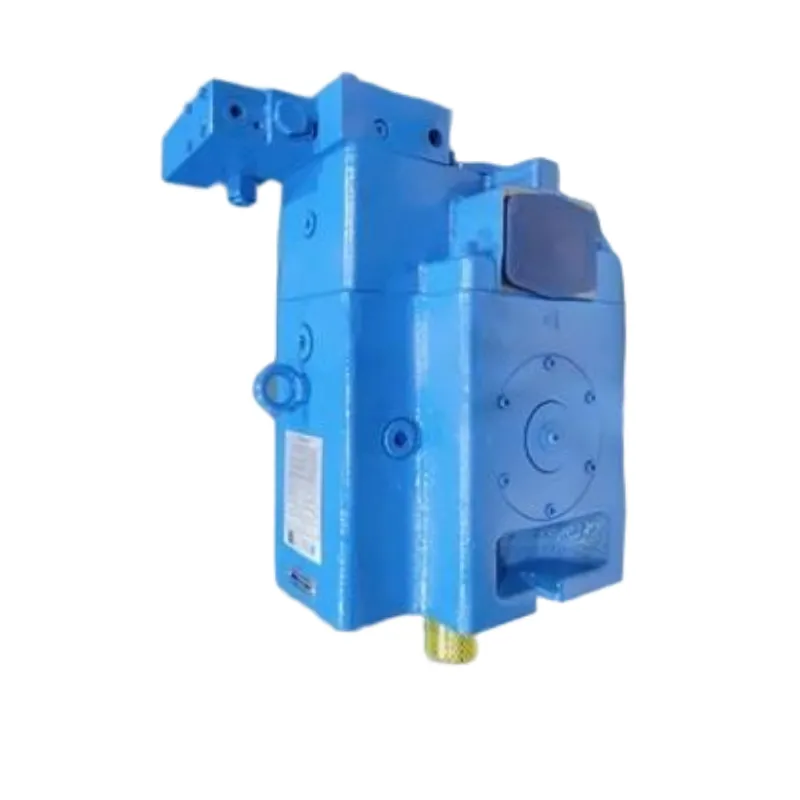

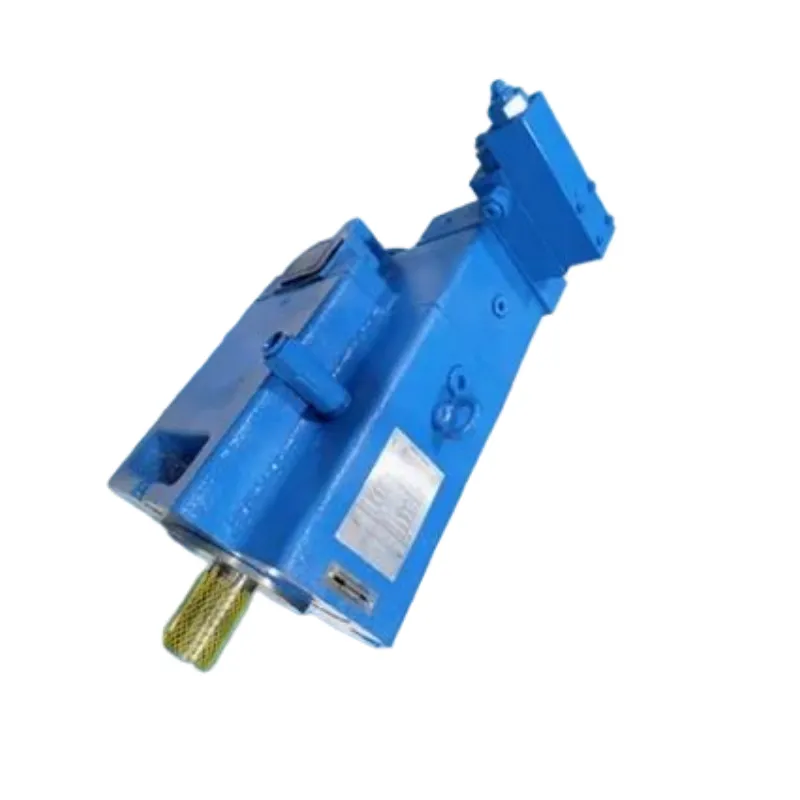

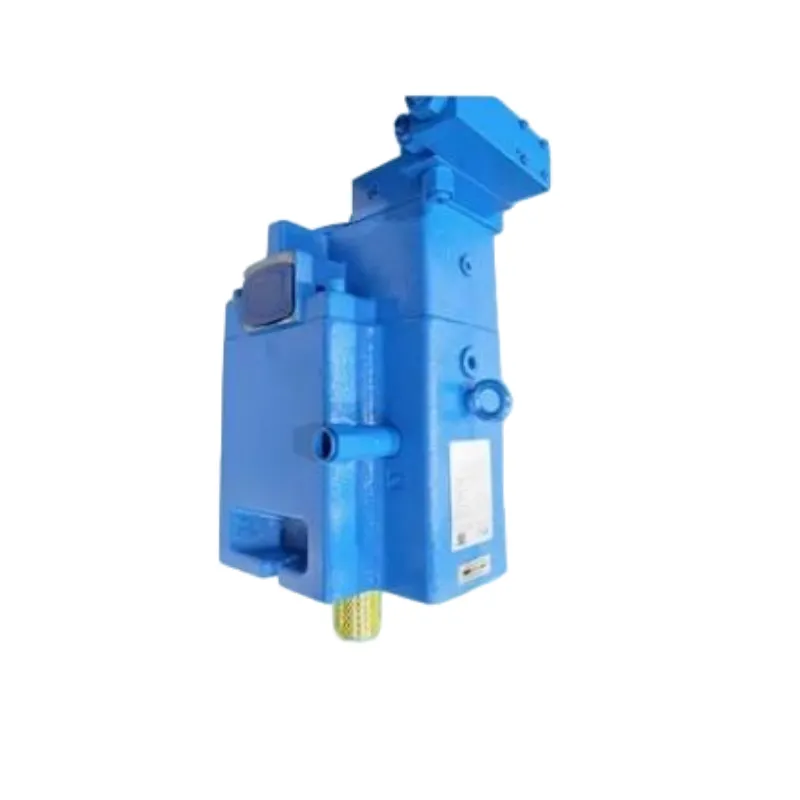

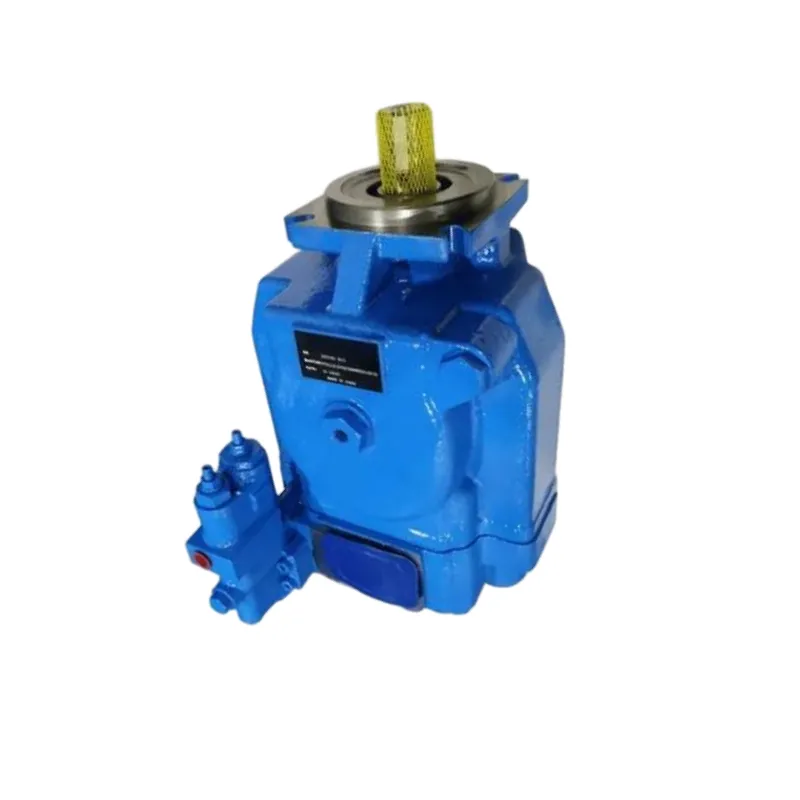

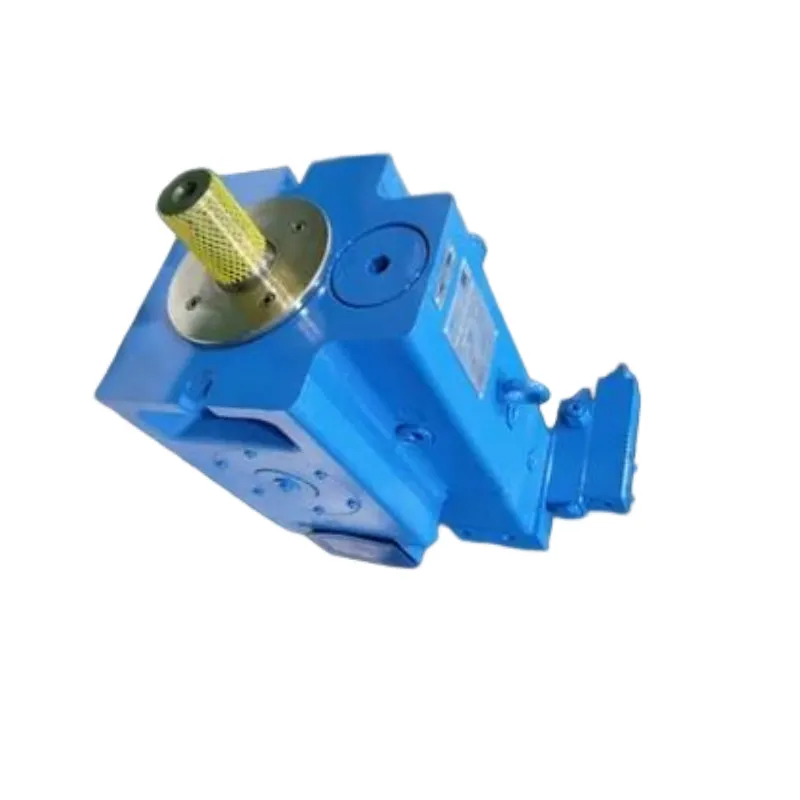

PVH is an axial piston variable pump , suitable for medium to high-pressure hydraulic systems in industrial machinery, construction machinery and other fields. Its displacement is 73.7cm³/rev, the rated pressure is 250 bar (25MPa), and the peak pressure can reach 280 bar (28MPa). The pump adopts a swashplate structure and can dynamically adjust the flow according to system requirements through various control methods such as pressure compensation and load sensing, with significant energy-saving effects.
Advantages
Energy Efficiency: Flow is adjusted on demand, saving about 15% - 20% energy compared to fixed displacement pumps.
High-Pressure Stability: Can work stably under high pressure to meet the power needs of heavy equipment.
Low-Noise Operation: Optimized design reduces pressure pulsation, with low operating noise, ≤70dB(A).
Durability and Reliability: Critical components are made of high-strength materials, resistant to wear and pollution, with a long service life.
Strong Adaptability: Multiple control modes facilitate integration with different hydraulic systems.
Compact Structure: Small size and light weight, with low installation space requirements.
Technical Data
| Type | Displacement(cm³/rev) | Rated Pressure (MPa) | Maximum Pressure (MPa) | Rated Speed (rpm) | Maximum Speed (rpm) |
| PVH74 | 73.7 | 25 | 28 | 1800 | 2200 |
| PVH98 | 98.3 | 25 | 28 | 1800 | 2200 |
FAQ
How do you ensure product reliability without in-house production?
We hold ISO 9001/TS 16949 certifications and have over 15 years of hydraulic manufacturing experience. Each batch undergoes a 5-stage quality verification, including pressure cycle testing and material composition analysis.
How to handle component failures during the warranty period?
Can technical drawings be provided for custom projects?
What is the minimum order quantity (MOQ) for hydraulic valves?
How to handle urgent breakdowns?
What are the payment terms for new customers?
Are certification documents available?
Can you provide samples?
