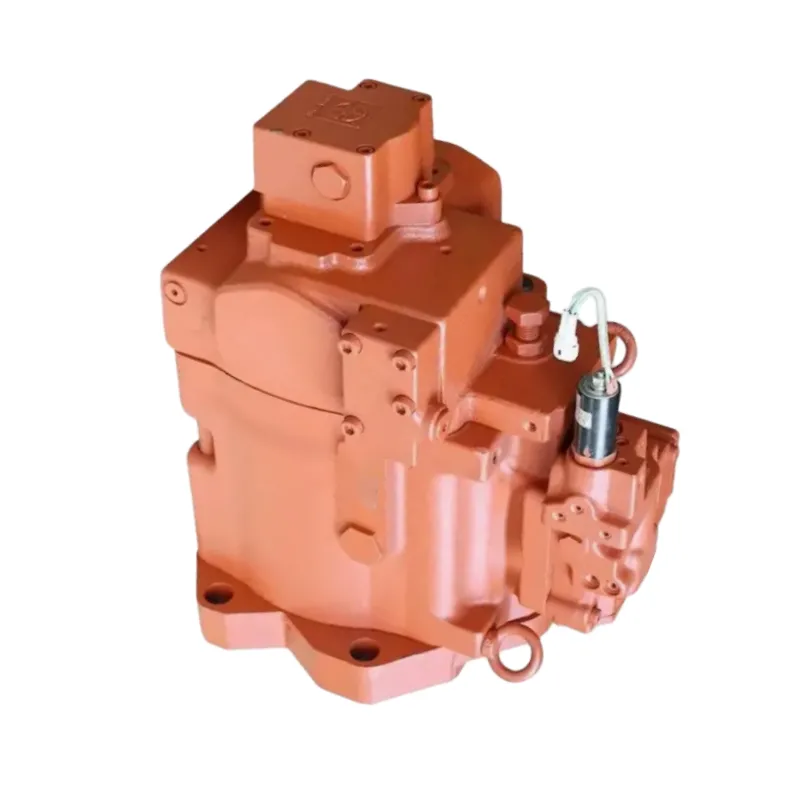

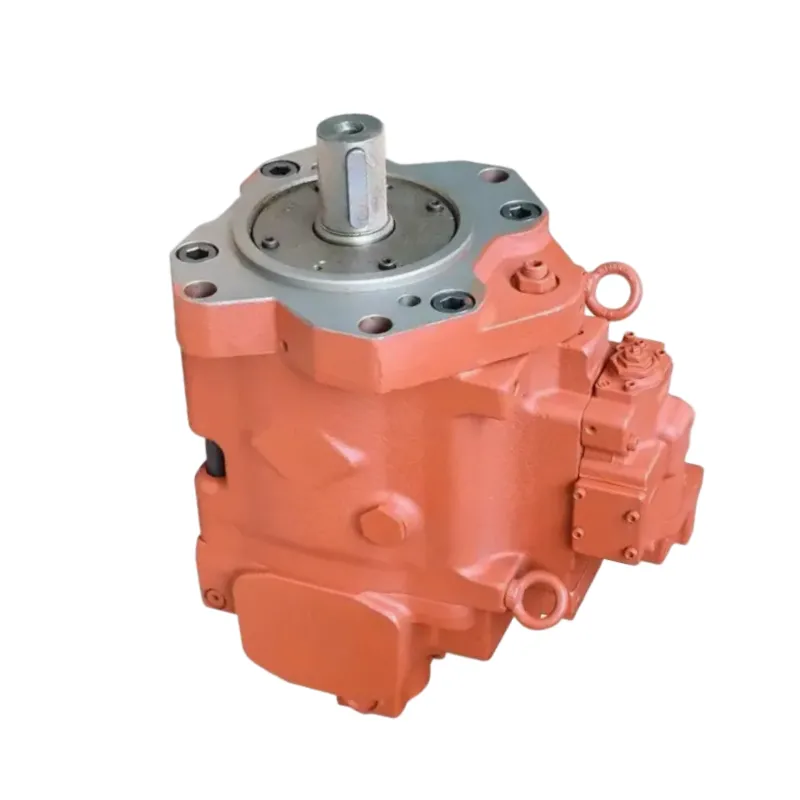

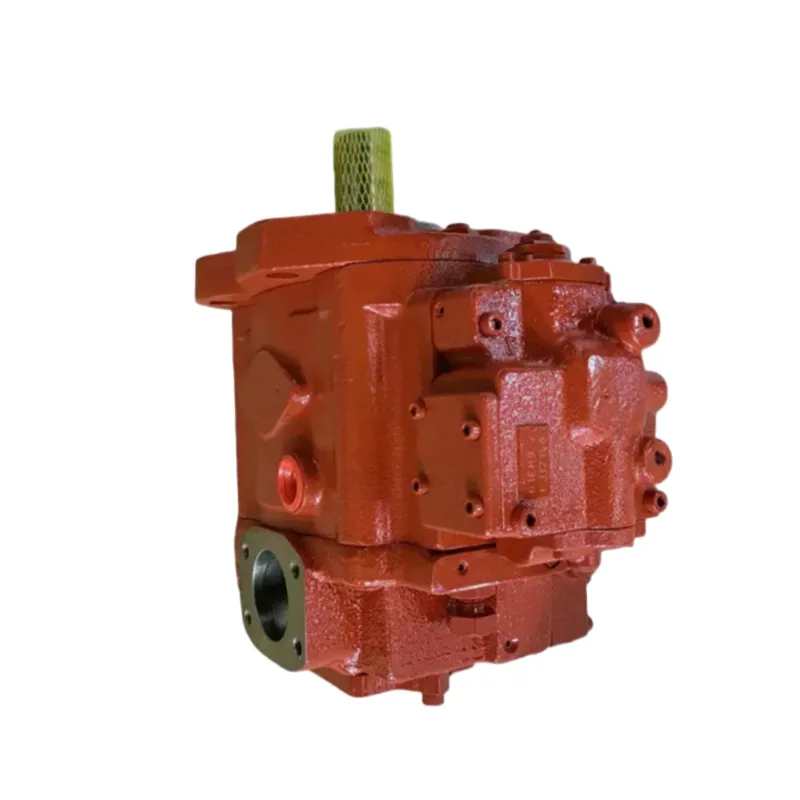

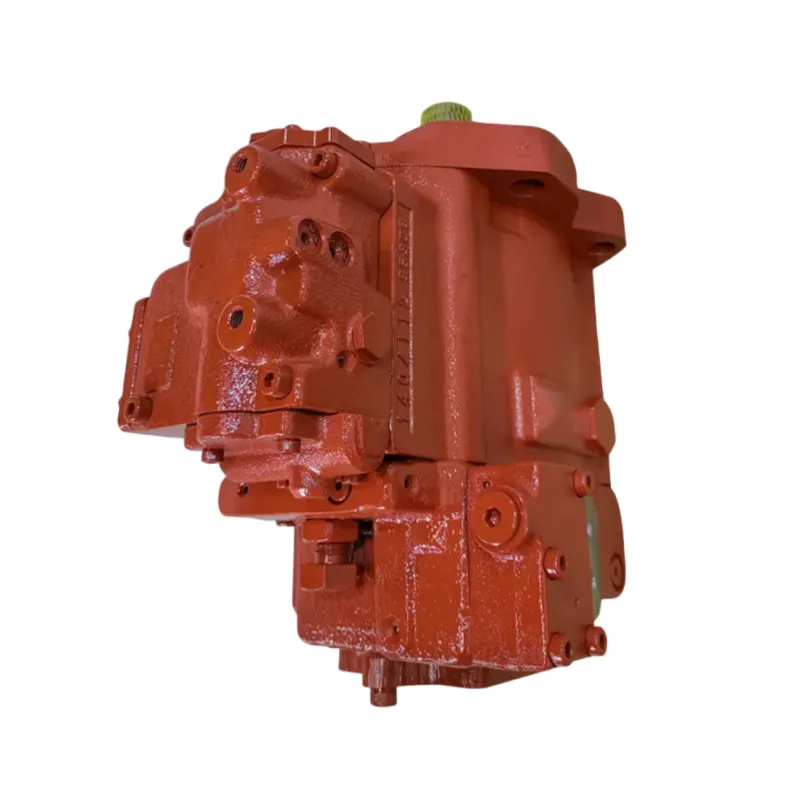

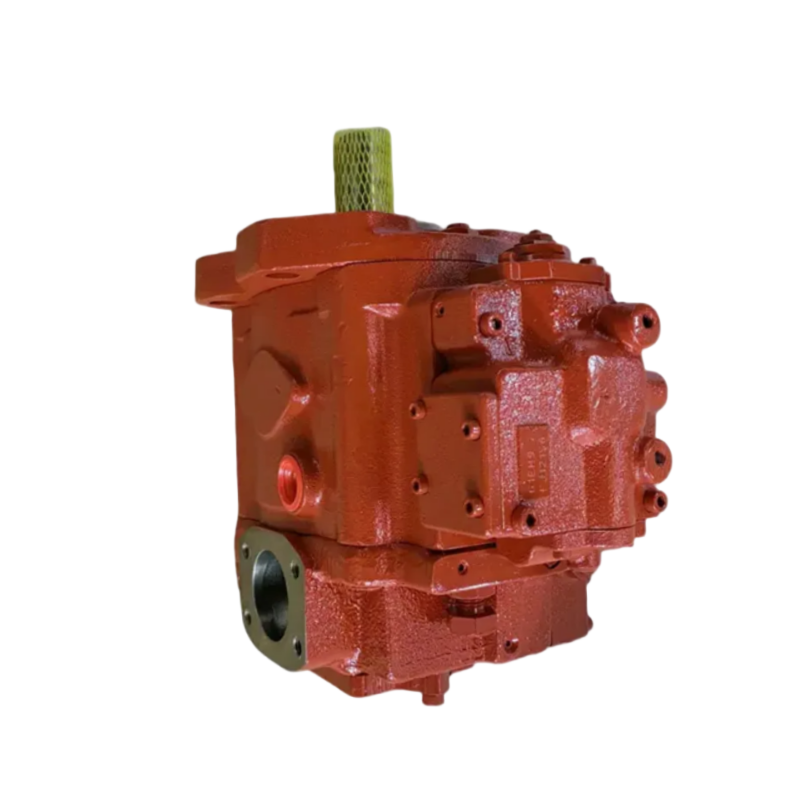

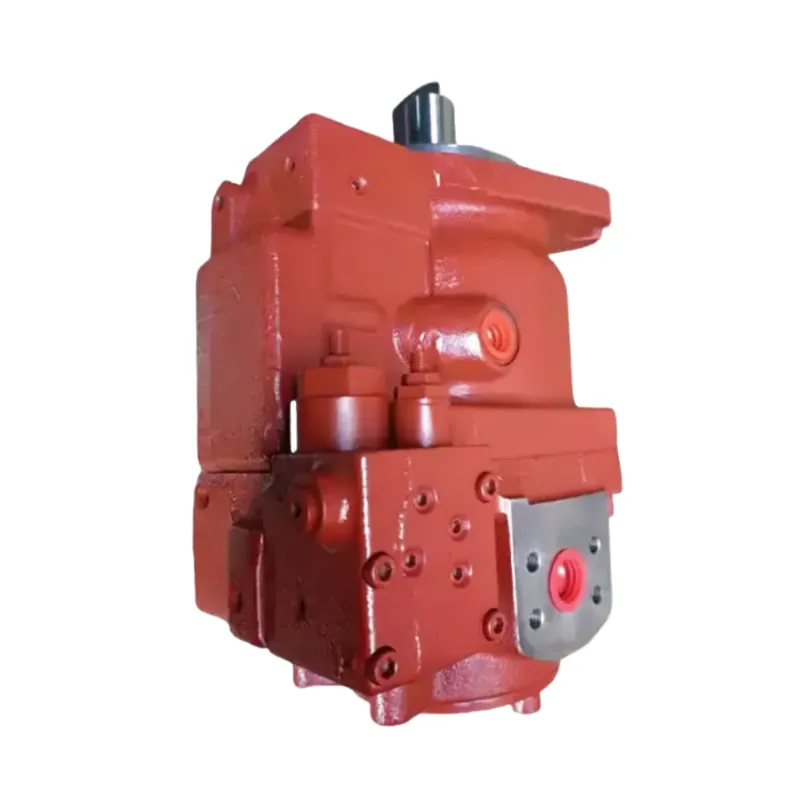

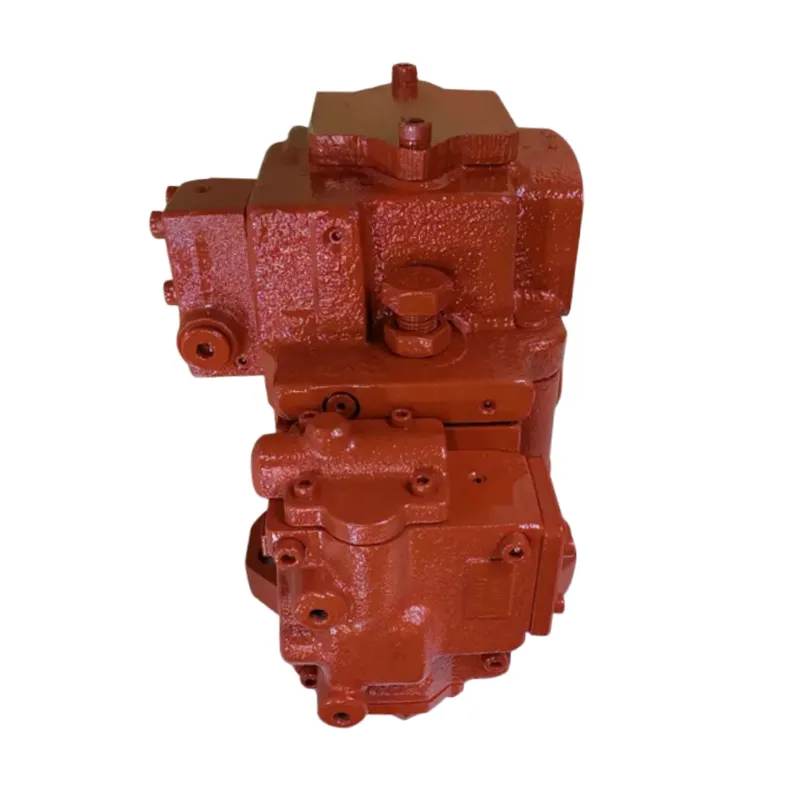

KC-K3VG280DT Kawasaki series Pump Agricultural Machinery

K3VG280DT is a variable displacement axial piston pump (swash plate type) with a tandem dual-pump configuration, designed for high-pressure hydraulic systems in heavy industrial machinery such as tunnel boring machines, plastic injection presses, and large-scale construction equipment .

Inquire Now Next Prodcut

Advantages

Dual-Pump Tandem Design: Independent control of two hydraulic circuits for multi-function operation

High Power Density: Compact layout with 560 cm³/rev total displacement for heavy-duty applications

ILIS Servo Control: Optional intelligent linear servo regulator enables precise flow control via electrical commands

High Efficiency: Spherical valve plate and hydraulic balance ensure >90% peak efficiency, even at low speeds/pressures

Durable Build: Heavy-duty piston/slipper assembly with wear-compensating mechanisms for extended service life

Low Noise: Optimized valve plate and rigid casing reduce vibration and noise levels

Wide Control Options: Supports load sensing, constant power control, and electro-hydraulic proportional control

Self-Priming: Reliable start-up without external priming

Through-Shaft Integration: Enables mounting of a third pump or pilot pump

Modular Design: Easy maintenance with interchangeable components

Fire-Resistant Fluid Compatibility: Suitable for applications requiring specialized hydraulic fluids

Technical Data

Type	Displacement(cm³/rev)	Rated Pressure (MPa)	Maximum Pressure (MPa)	Rated Speed (rpm)	Maximum Speed (rpm)
K3VG280DT	280	34.3	39.2	1,600	2,000

FAQ

What Is The Difference Between KICAN Pump & OEM Pump?

Price: KICAN pump are much cheaper than OEM pump.
Availability: KICAN pumps are often more available than OEM ones.
Variety: KICAN offers an extensive variety of pumps, allowing the possibility of finding any parts you need in just one stop.
Quality: All KICAN pumps must be tested as the original standard before the delivery, making which 100% equivalent to OEM pumps.
Do You Provide Samples? Are They Free?What are the shipping methods?

We can provide samples, and the sample costs will be refunded to you in the form of deducted payments in the later stages.In the freight link, we support a variety of express delivery methods, which can directly deliver the samples to you, including:Railway Express;Air Express;Waterway Express.
Currency and Payment Methods?

We support multiple currencies and diverse payment methods, such as T/T, L/C, bank transfer, and more.
Can KICAN's independently developed brand products directly replace original parts?

Yes, its independently developed brand products have the same performance as original parts, achieve full OEM equivalence, and can be directly replaced.
Which international brands' equivalent OEM products does KICAN provide?

KICAN provides OEM products fully equivalent to internationally renowned brands such as Parker Hannifin, Kawasaki Heavy Industries, Eaton, Sauer, NACHI, Yuken, Danfoss, and Rexroth.
What is KICAN's product strategy?

KICAN adheres to a dual-track strategy of "independent R&D + brand OEM." It not only develops independent brands such as Parsle and RYD but also provides OEM products fully equivalent to internationally renowned brands like Parker Hannifin and Kawasaki Heavy Industries.
What is the minimum order quantity (MOQ) for hydraulic valves?

Standard models have a flexible MOQ of 50 pieces. Sample orders start from 20 pieces.
How to handle urgent breakdowns?

Our national partners stock critical spare parts in 6 regional centers, with priority delivery services available at major ports.
What are the payment terms for new customers?

A 30% T/T advance payment is required for the first transaction. Payment terms can be further discussed after three consecutive successful deliveries.
Are certification documents available?

Each shipment includes CE/ISO/REACH certificates. Special certifications (e.g., ATEX) require 45 days' prior notice.
