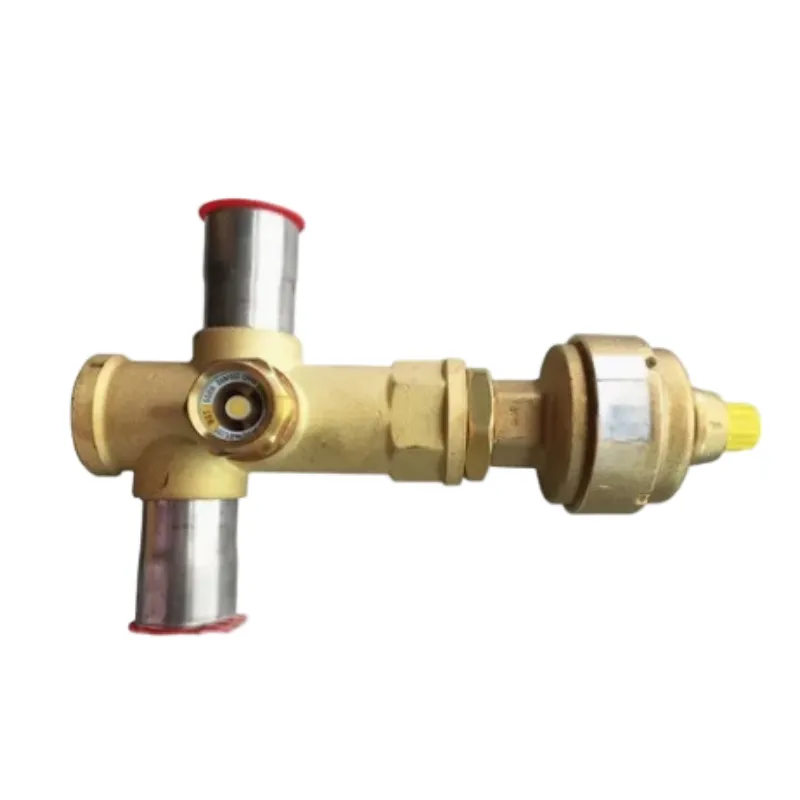

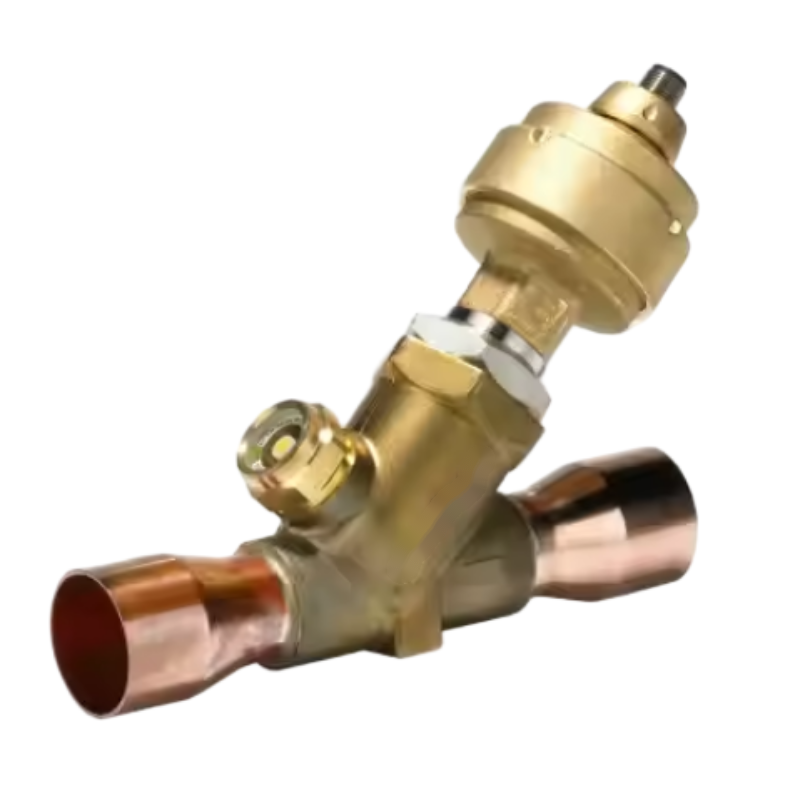

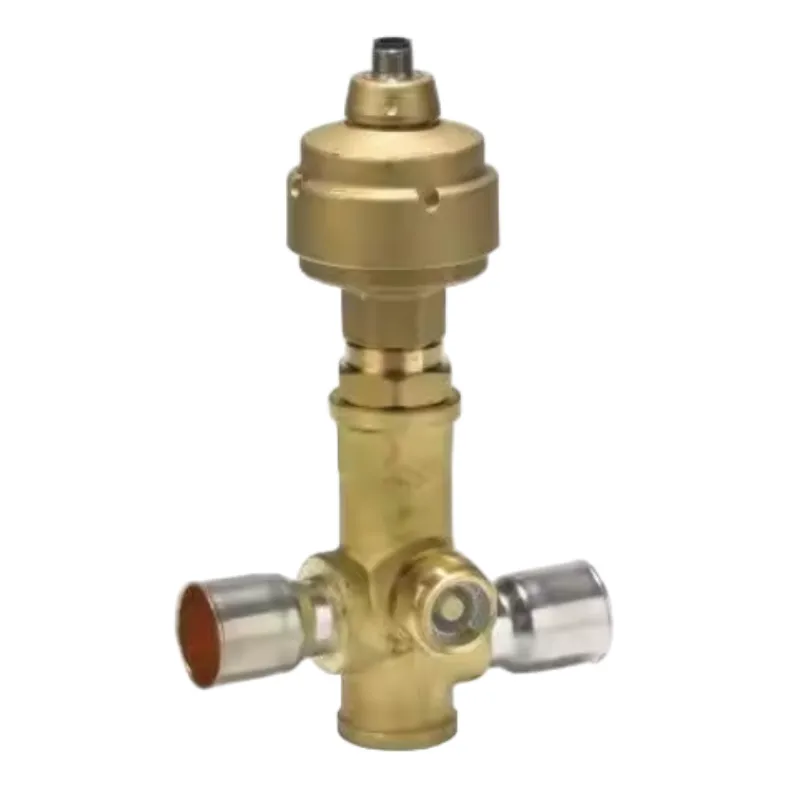

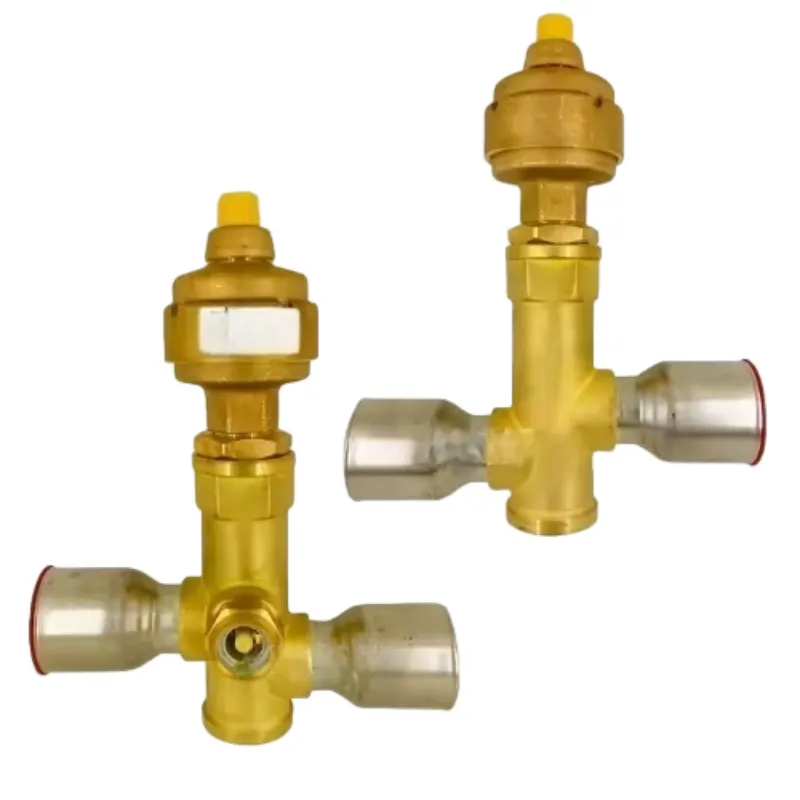

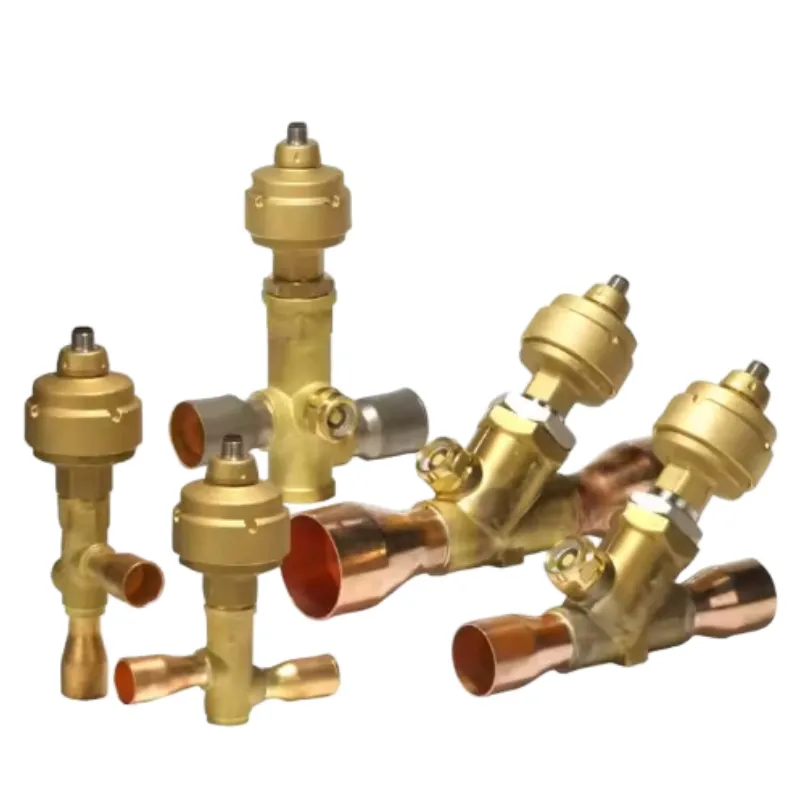

KC-ETS2-20 Rexroth series Electronic Expansion Valves Industrial Machinery

ETS is an electronic expansion valve. The valve body is mostly made of brass, and some models have copper or bimetal connections (stainless steel/copper), which have good corrosion resistance. Its principle is driven by a bipolar motor, and the valve opening is accurately adjusted after receiving the electrical signal to achieve precise injection of the refrigerant liquid in the evaporator, and the valve is completely balanced, with a two-way flow function, and has electromagnetic tight closing function in both flow directions.

Inquire Now Next Prodcut

Advantages

Precise flow regulation.

Fully balanced design with bi - flow feature.

Internal and external corrosion - resistant.

Low power consumption.

Technical Data

Type	Max. inlet pressure (P)	Max. work port press. (A/B)（A/B）bar	Nominal flow rate L/min	Max. Flow L/min	Number of ports
ETS 2	42	42	3	3	2
ETS4	42	42	7	8	2
ETS6	42	42	10	12	2
ETS8	42	42	13	16	2
ETS12	42	42	20	24	2
ETS20	42	42	33	40	2

Applications

Heat pumps.

Computer room air conditioners (CRAC).

Process chillers.

Modular chillers.

FAQ

How do you ensure product reliability without in-house production?

We hold ISO 9001/TS 16949 certifications and have over 15 years of hydraulic manufacturing experience. Each batch undergoes a 5-stage quality verification, including pressure cycle testing and material composition analysis.
How to handle component failures during the warranty period?

We offer a 12-month limited warranty (covering manufacturing defects). Simply send a diagnostic video via our platform, and our engineers will confirm repair/replacement solutions online.
Can technical drawings be provided for custom projects?

After confirming the deposit, engineering schematics can be shared under an NDA. Our advanced production system shortens lead times by 30% compared to traditional suppliers.
What is the minimum order quantity (MOQ) for hydraulic valves?

Standard models have a flexible MOQ of 50 pieces. Sample orders start from 20 pieces.
How to handle urgent breakdowns?

Our national partners stock critical spare parts in 6 regional centers, with priority delivery services available at major ports.
What are the payment terms for new customers?

A 50% T/T advance payment is required for the first transaction. Payment terms can be further discussed after three consecutive successful deliveries.
Are certification documents available?

Each shipment includes CE/ISO/REACH certificates. Special certifications (e.g., ATEX) require 45 days' prior notice.
Can you provide samples?

Yes. We can supply samples for your testing and verification needs. For sample requests, please inform us of the specific product model, quantity, and any special requirements. We’ll communicate details like sample preparation time, shipping arrangements, and relevant costs (e.g., sample production fees, logistics charges; partial costs may be negotiable under certain conditions).
