Excavator Hydraulic Cylinder - Custom Replacement for Boom, Stick, Bucket

Application Areas

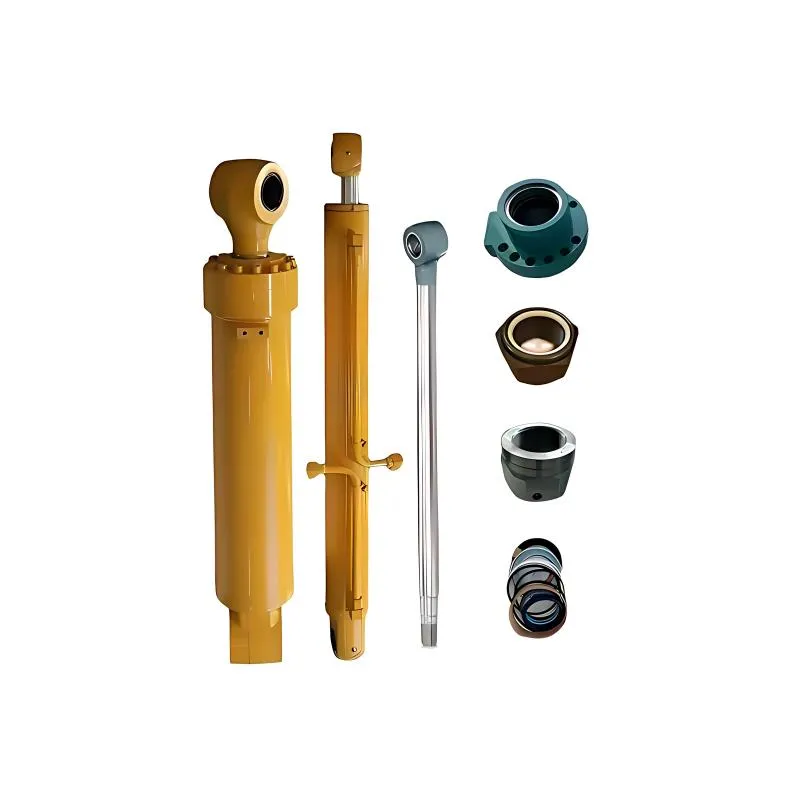

Excavator hydraulic cylinders are critical components that power the main working mechanisms of excavators. We produce three main types for different functions:

1. Boom Cylinder: Controls the raising and lowering of the excavator boom, carrying the majority of the working load. Designed to withstand repeated impact and heavy bending moments.

2. Stick (Arm) Cylinder: Controls the extension and retraction of the stick, providing precise digging motion. Requires high positional accuracy and smooth operation.

3. Bucket Cylinder: Controls the tilting and curling of the bucket for efficient digging and material dumping. Operates with high frequency and must be durable enough for constant cycling.

Our cylinders fit a wide range of excavator sizes from 1-ton mini excavators up to 100-ton large mining excavators, and are compatible with all major brands including Caterpillar, Komatsu, Hitachi, Volvo, Doosan, and JCB.

Quality Control Standards

Quality is at the core of our manufacturing process. We implement a multi-stage inspection system to ensure every excavator cylinder meets international standards:

• Raw Material Inspection: All steel and components are inspected for chemical composition and mechanical properties before production

• Machining Tolerance Check: Critical dimensions are verified with precision measuring instruments to ensure proper fit

• Weld Quality Inspection: Non-destructive testing checks for internal defects in welds

• Pressure Testing: Each cylinder undergoes a 1.5x rated pressure holding test to check for leaks and structural integrity

• Surface Finish Inspection: Chrome plating thickness and surface roughness are measured to guarantee long seal life

• Final Assembly Check: Complete assembly verification and movement testing before packaging

All our hydraulic cylinders come with a 12-month warranty against manufacturing defects.

Customization Services

We understand that every excavator application has unique requirements. That's why we specialize in custom hydraulic cylinder manufacturing:

• Custom Dimensions: We can match any bore, rod, stroke combination you need for your replacement or OEM project

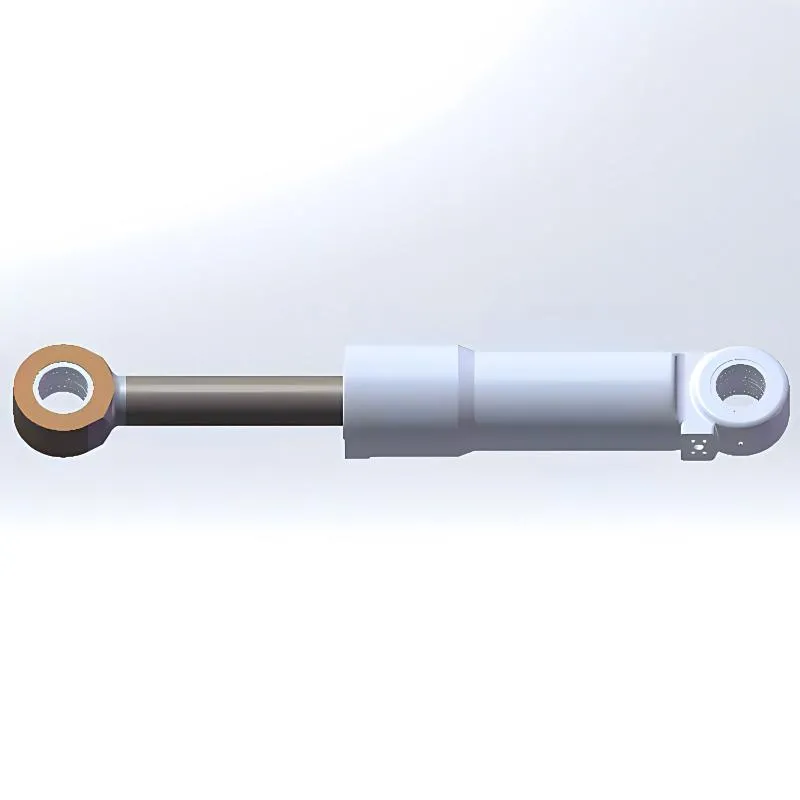

• Different Mounting Styles: Flange, trunnion, clevis, foot - whatever mounting configuration you require

• Special Material Options: Stainless steel for corrosive environments, higher strength steel for extreme pressure applications

• Special Surface Treatments: Extra corrosion-resistant coatings for marine or underground applications

• Sample-based Manufacturing: If you have an old cylinder that needs replacement, we can reverse-engineer it from your sample

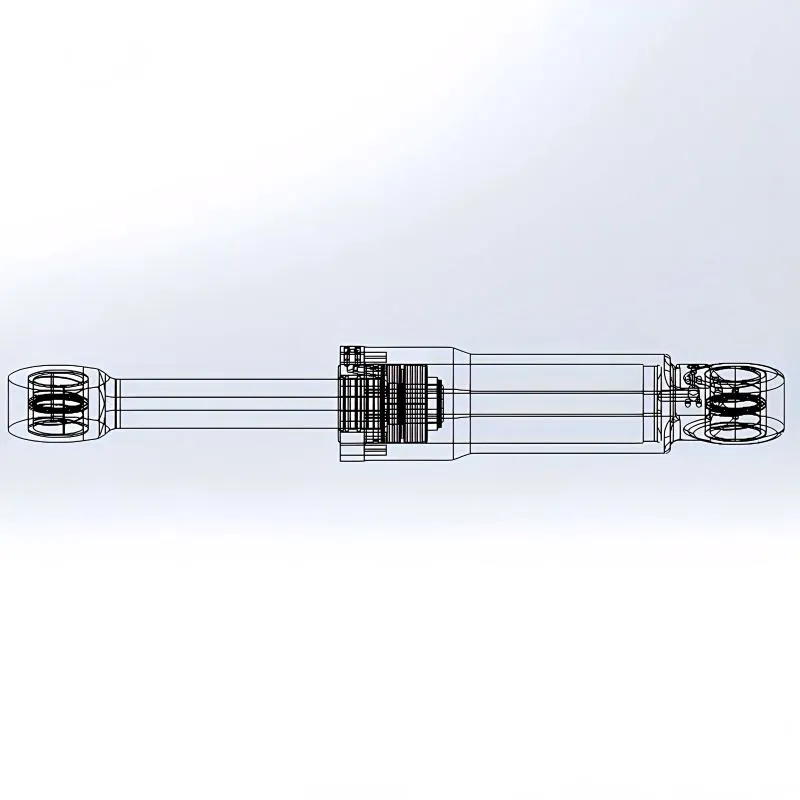

• Drawing-based Manufacturing: Send us your engineering drawings and we'll produce exactly what you specified

Our engineering team works closely with you to ensure all requirements are met before production begins.

Global Export Capabilities

As a professional hydraulic cylinder manufacturer based in China, we export to customers worldwide with reliable shipping and documentation:

• Export Experience: We have over 10 years of export experience serving customers in North America, Europe, Australia, Southeast Asia and South America

• Packaging: Standard seaworthy export packaging - plastic wrapped, then crated in plywood boxes to prevent damage during long-distance shipping

• Documentation: Complete export documentation including commercial invoice, packing list, bill of lading, certificate of origin, and any other documents required by your country

• Shipping Options: We work with major freight forwarders to offer both sea freight and air freight options to your nearest port

• Lead Time: Standard custom orders ship within 15-25 working days after drawing approval

• Technical Support: We provide lifetime technical support for all our products, answering any installation or maintenance questions

Frequently Asked Questions

Q: Can you manufacture hydraulic cylinders according to my drawing or sample?

A: Yes, that's one of our specialties. We regularly produce custom cylinders based on customer drawings or reverse-engineer from existing samples. Just send us your drawing, photos, or sample, and we'll quote and manufacture exactly what you need.

Q: What is your minimum order quantity?

A: We accept single-piece orders for custom replacement cylinders. We understand that sometimes you just need one replacement cylinder for an excavator that's already in service, and we're happy to help.

Q: How long is your production lead time?

A: For standard custom excavator cylinders, production typically takes 15-25 working days after we confirm all drawing details with you. Urgent orders can be accommodated - please let us know your deadline and we'll do our best to meet it.

Q: What warranty do you offer?

A: All our hydraulic cylinders come with a 12-month warranty against manufacturing defects. If you experience any issues related to manufacturing quality within the warranty period, we'll repair or replace it at no cost to you.
