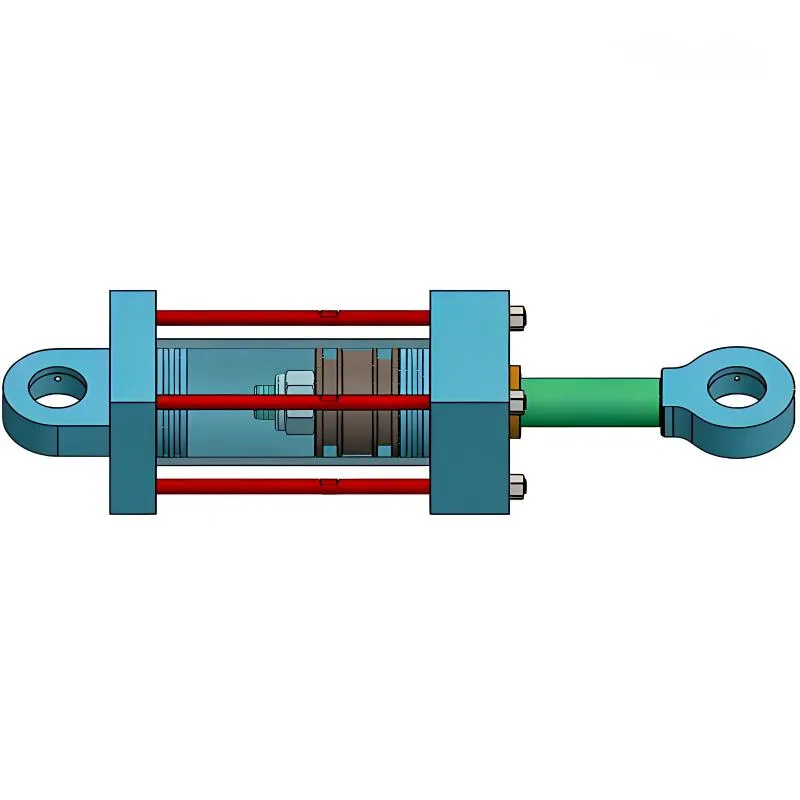

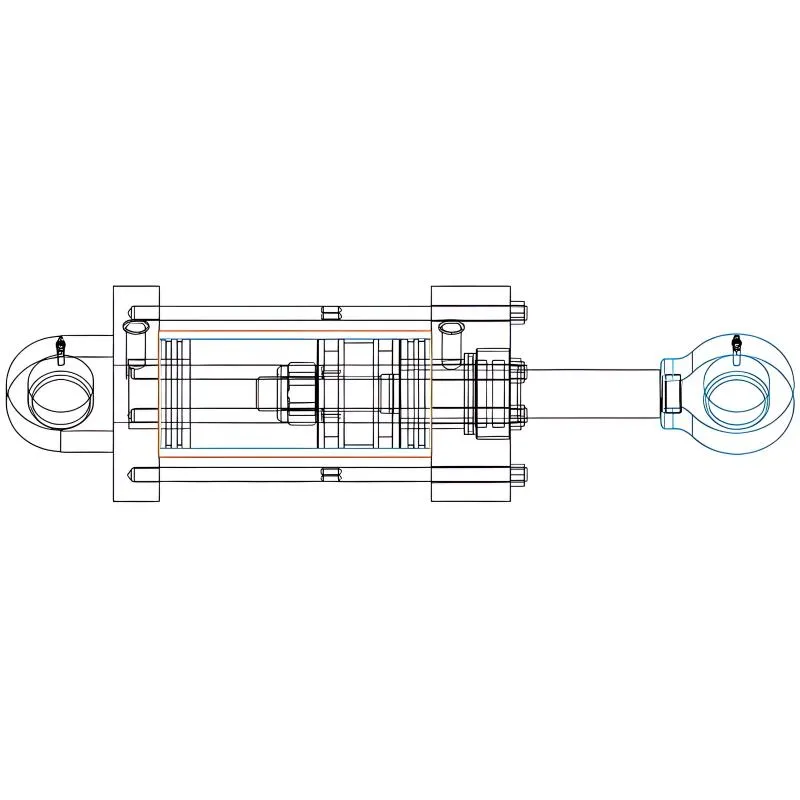

Customized Hydraulic Cylinder
Our double acting hydraulic cylinders use hydraulic pressure to provide power in both extend and retract directions, offering precise bidirectional control for a wide range of industrial applications. Whether you need a standard double acting cylinder or a custom designed cylinder for special applications, we manufacture high-quality cylinders that match your exact performance specifications. Every cylinder undergoes strict pressure testing and quality inspection to ensure reliable bidirectional operation. With precision machining and high-quality sealing, our double acting cylinders deliver smooth, consistent performance and long service life.
Key Features of Custom Double Acting Hydraulic Cylinder
•Bidirectional Power Control: Hydraulic power in both extend and retract directions for precise movement control
•Precision Operation: Precision honed bore ensures smooth and consistent piston movement
•Leak-Proof Sealing: High-quality sealing system prevents leakage during bidirectional cycling
•Wide Application Range: Suitable for almost all industrial hydraulic applications
•Fully Customizable: Complete customization of dimensions, mounting styles, and pressure ratings
Rigorous Testing: Each cylinder undergoes bidirectional pressure cycling testing before delivery
Technical Specifications of Double Acting Hydraulic Cylinder
| Cylinder Head Mounting Types | ||
| Mounting Type | Code | Typical Applications |

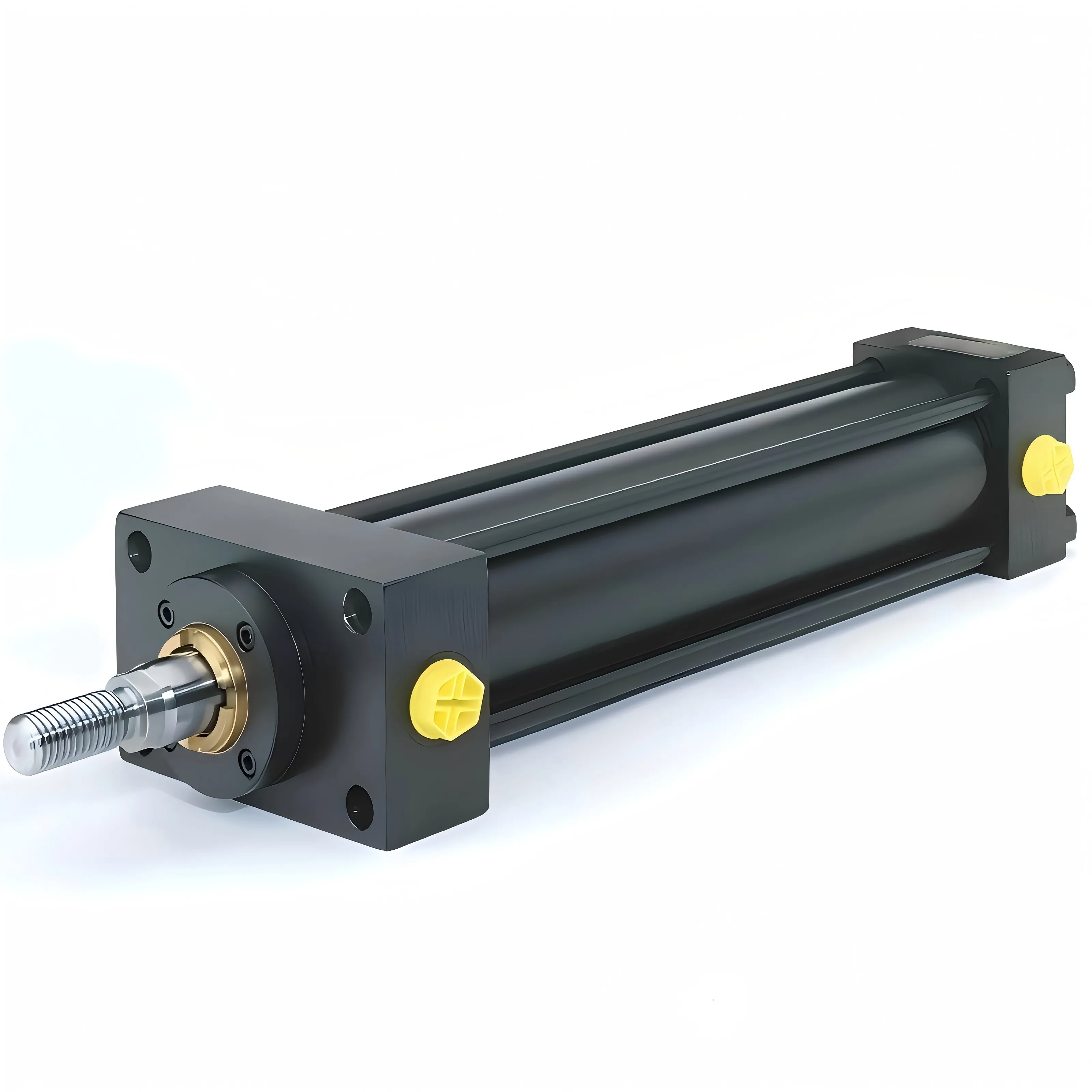

| Flange Mounting | F | Fixed installation, high rigidity |
| 法兰连接 | F | 固定安装，刚度大 |
| Trunnion Mounting | T | Allows slight swinging during operation |
| 耳轴连接 | T | 工作中允许轻微摆动 |

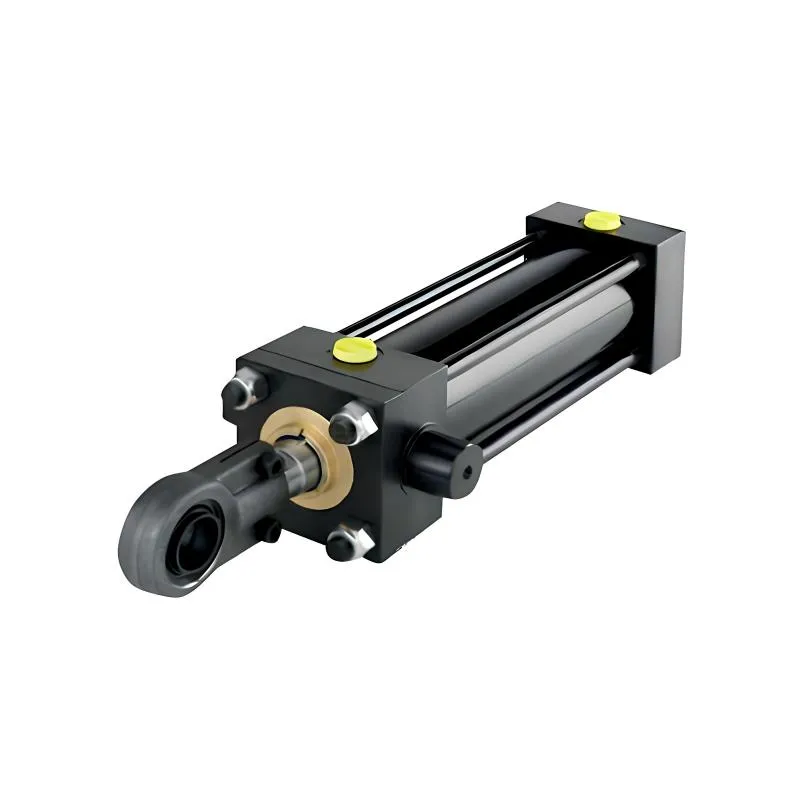

| Clevis Mounting | C | Flexibility for articulated movement |
| 铰头连接 | C | 适合铰接运动，灵活性好 |
| Foot Mounting | G | Bottom fixed installation |
| 脚架连接 | G | 底部固定安装 |
| Piston Rod End Mounting Types | ||
| Mounting Type | Code | Typical Applications |
| Threaded Rod | M | Direct connection to working mechanism |
| 螺纹杆 | M | 直接连接工作机构 |
| Clevis | C | Articulated connection for pivoting movement |
| 铰头 | C | 铰接连接，适应转动运动 |
| Eyelet | I | Fixed pin connection |
| 耳环连接 | I | 固定销连接 |
| Flange | F | Rigid connection for heavy loads |
| 法兰 | F | 刚性连接，适合重载 |
| Technical Specifications | ||||
| Bore Diameter (mm) | Rod Diameter (mm) | Stroke Length (mm) | Working Pressure (MPa) | Maximum Force (kN) |
| 40 | 25 | 100-1000 | 10-31.5 | 12.6-100.5 |
| 50 | 30 | 100-1500 | 10-31.5 | 19.6-157.1 |
| 63 | 36 | 100-2000 | 10-31.5 | 31.2-249.4 |
| 80 | 45 | 100-2500 | 10-31.5 | 50.3-402.1 |
| 100 | 56 | 100-3000 | 10-31.5 | 78.5-628.0 |
| 125 | 70 | 100-3500 | 10-31.5 | 122.7-981.7 |
| 160 | 90 | 100-4000 | 10-31.5 | 201.1-1583.4 |
| 200 | 110 | 100-4500 | 10-31.5 | 314.2-2513.3 |
| 250 | 140 | 100-5000 | 10-31.5 | 490.9-3887.7 |
| Note: Other specifications can be customized according to your requirements | ||||
Double Acting Hydraulic Cylinder: Applications & Services
Application Areas
Double acting hydraulic cylinders are the most widely used type of hydraulic cylinder, suitable for almost all industrial applications requiring bidirectional movement:
•Industrial Machinery: Used in machine tools, presses, injection molding machines, and other industrial equipment
•Mobile Equipment: Used in construction machinery, agricultural equipment, and material handling vehicles
Special Applications: Custom designed for specific industry requirements including marine, mining, and aerospaceAvailable in a wide range of sizes, pressure ratings, and mounting configurations to suit any application requirement.
Quality Control
Quality is at the core of our manufacturing process. We implement a multi-stage inspection system to ensure every double acting cylinder meets international quality standards:
• Raw Material Inspection: All steel and components are inspected for chemical composition and mechanical properties before production
• Machining Tolerance Check: Critical dimensions are verified with precision measuring instruments to ensure proper fit
• Weld Quality Inspection: Non-destructive testing checks for internal defects in welds
• Pressure Testing: Each cylinder undergoes a 1.5x rated pressure holding test in both extend and retract directions to check for leaks and structural integrity
• Surface Finish Inspection: Chrome plating thickness and surface roughness are measured to guarantee long seal life
Final Assembly Check: Complete assembly verification and movement testing before packagingAll our hydraulic cylinders come with a 12-month warranty against manufacturing defects.
Customization Services
We specialize in custom hydraulic cylinder manufacturing to meet your exact requirements:
• Custom Dimensions: We can match any bore, rod, stroke combination you need for your application
• Different Mounting Styles: Flange, trunnion, clevis, foot, or any custom mounting configuration you require
• Pressure Rating Options: Available in any working pressure from 10 MPa to 70 MPa
• Special Material Options: Stainless steel, high-strength steel, or other special materials as required
• Special Seal Options: Special sealing materials for extreme temperature or corrosive environments
• Sample-based Manufacturing: If you have an existing cylinder that needs replacement, we can reverse-engineer it from your sample
Drawing-based Manufacturing: Send us your engineering drawings and we'll produce exactly what you specifiedOur engineering team works closely with you to ensure all your requirements are met before production begins.
