In hydraulic systems, selecting the right type of pump is crucial for achieving efficiency, reliability, and longevity. Two of the most commonly used pumps are vane pumps and gear pumps. Understanding the differences between these pumps can help engineers and equipment designers choose the right solution for their applications.
1. Design and Operation

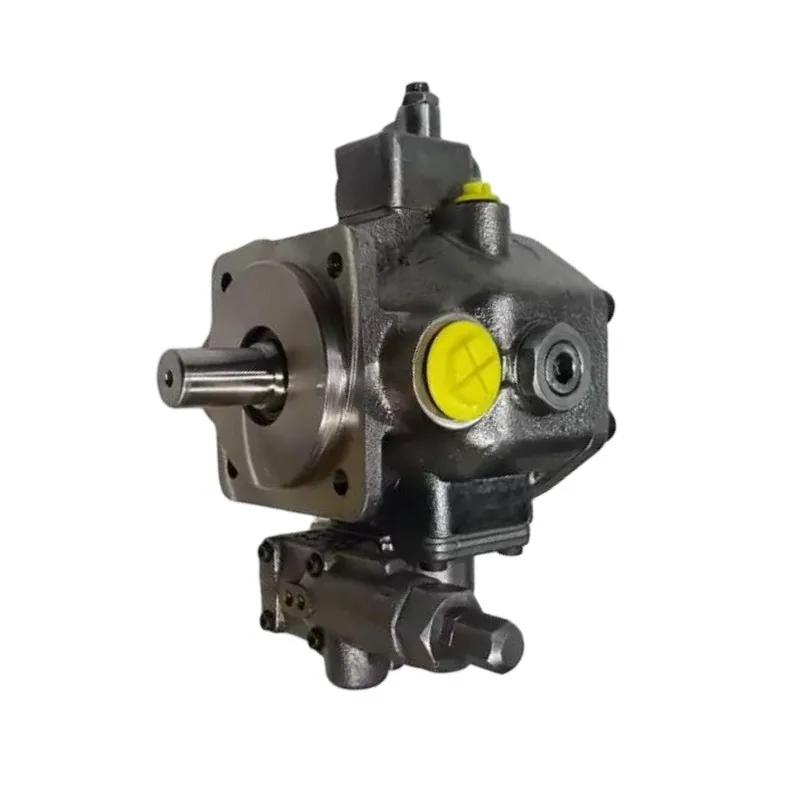

Vane Pumps:
Vane pumps are a type of positive displacement pump that uses a series of vanes mounted on a rotor to move hydraulic fluid. As the rotor turns, the vanes slide in and out of slots to maintain contact with the pump housing, creating chambers that carry fluid from the inlet to the outlet. This design allows for smooth, continuous flow and adjustable displacement in variable models.

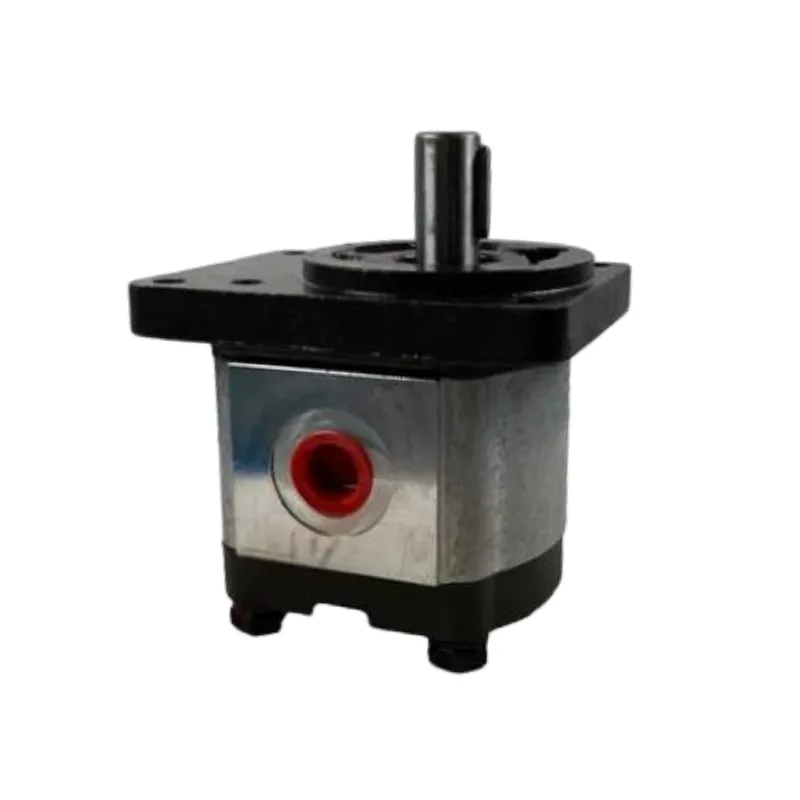

Gear Pumps:
Gear pumps are also positive displacement pumps but operate using two meshing gears to move fluid. Fluid is trapped between the gear teeth and the pump casing, transported from the inlet to the outlet. Gear pumps are typically simpler in design, highly durable, and offer fixed displacement operation.
2. Performance Characteristics
Flow and Pressure: Vane pumps generally provide smoother and more consistent flow than gear pumps, which may have more pulsation. Vane pumps are suitable for applications requiring precision and reduced noise. Gear pumps excel in high-pressure applications and are robust under continuous heavy-duty conditions.
Efficiency: Both vane and gear pumps can be efficient, but vane pumps often have higher volumetric efficiency at partial loads because of reduced internal leakage. Gear pumps maintain efficiency at full load but may experience more slip under varying conditions.
Noise and Vibration: Vane pumps operate quietly due to their smooth action, making them ideal for sensitive machinery. Gear pumps generate more noise and vibration, which is generally acceptable in rugged industrial environments.
3. Maintenance and Durability
Vane Pumps: Require clean hydraulic fluid to prevent vane wear and may need periodic maintenance to replace vanes and seals. However, high-quality vane pumps can operate reliably for thousands of hours in demanding conditions.
Gear Pumps: Extremely durable and simple, with fewer moving parts. They are less sensitive to fluid contamination and typically require less maintenance than vane pumps.
4. Applications
Vane Pumps: Used in applications requiring smooth, pulse-free flow, such as CNC machinery, injection molding machines, and mobile hydraulic systems where precise control is critical.
Gear Pumps: Ideal for hydraulic power units, construction machinery, agricultural equipment, and other systems where robustness and high pressure are needed.
5. Vane Vs Gear Pump: Key Takeaways
| Feature | Vane Pump | Gear Pump |
|---|
| Flow Type | Smooth, low-pulsation | Pulsating |
| Pressure Capability | Medium to high | High |
| Noise Level | Low | Moderate to high |
| Sensitivity to Contaminants | Moderate | Low |
| Maintenance | Moderate | Low |
| Applications | Precision machinery, mobile hydraulics | Heavy-duty machinery, power units |
In conclusion, vane pumps and gear pumps serve different needs within hydraulic systems. Vane pumps excel in precision, smooth operation, and low noise, while gear pumps offer simplicity, durability, and high-pressure capability. Choosing between a vane pump vs gear pump depends on system requirements, operating conditions, and maintenance considerations.
