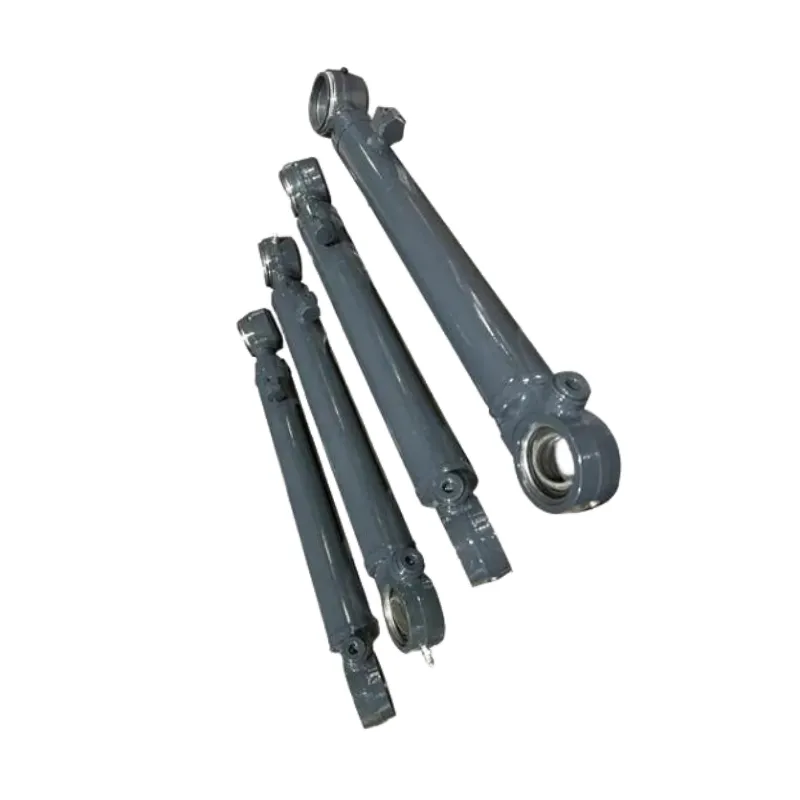

Material selection is a critical part of designing custom hydraulic cylinders. The performance, durability, and service life of a hydraulic cylinder depend largely on the materials used in its major components. Since hydraulic cylinders operate under high pressure, heavy loads, and often harsh environmental conditions, selecting the appropriate materials ensures structural strength, wear resistance, and long-term reliability.

When designing customized hydraulic cylinders for industrial equipment, engineers carefully evaluate the materials used for key components such as the cylinder barrel, piston rod, piston, end caps, seals, and guide elements. Each component must be manufactured from materials that meet the mechanical and environmental requirements of the application.

Cylinder Barrel Material Selection

The cylinder barrel is one of the most important structural components of a hydraulic cylinder. It must withstand internal hydraulic pressure while maintaining dimensional stability and smooth internal surfaces for piston movement.

High-strength carbon steel or alloy steel is commonly used for cylinder barrels. These materials provide excellent tensile strength and pressure resistance. In most industrial cylinders, the inner surface of the barrel is precision honed to create a smooth finish that allows seals to operate effectively and reduces internal friction.

For heavy-duty applications such as mining equipment or construction machinery, thicker cylinder barrels made from high-strength steel are often required to handle higher pressure loads.

Piston Rod Material and Surface Treatment

The piston rod transmits the hydraulic force generated inside the cylinder to the external mechanical system. Because the rod is exposed to both mechanical stress and environmental conditions, its material and surface treatment are extremely important.

Piston rods are typically manufactured from high-strength alloy steel that offers excellent tensile strength and resistance to deformation. In addition to material strength, surface treatment is necessary to improve durability.

Chrome plating is one of the most common surface treatments used for piston rods. Hard chrome plating provides several advantages:

• Improved wear resistance

• Reduced friction between the rod and seals

• Enhanced corrosion resistance

• Longer service life in harsh environments

For applications requiring even higher corrosion protection, additional coatings or specialized surface treatments may be applied.

Piston Material Considerations

The piston is the component that separates the hydraulic chambers inside the cylinder and converts hydraulic pressure into mechanical force. The material used for the piston must provide strength, dimensional stability, and compatibility with sealing components.

In many industrial hydraulic cylinders, pistons are manufactured from high-strength steel or ductile iron. These materials provide the necessary mechanical strength to handle high hydraulic pressure.

For certain applications, lightweight materials such as aluminum alloys may be used to reduce overall cylinder weight, especially in mobile equipment. However, strength and durability must always remain the primary considerations.

Cylinder End Caps and Structural Components

Cylinder end caps seal the hydraulic chamber and provide mounting interfaces for the equipment. These components must withstand both hydraulic pressure and mechanical loads transmitted through the cylinder structure.

End caps are usually manufactured from high-strength forged steel or cast steel. These materials provide excellent structural integrity and resistance to deformation under high pressure.

Proper machining and welding techniques are also important for ensuring the strength and reliability of these structural components.

Seal Materials and Performance Requirements

Sealing systems are essential for maintaining hydraulic pressure and preventing fluid leakage. Seal materials must be selected according to the operating conditions of the hydraulic system.

Several factors influence seal material selection, including:

• Operating pressure

• Temperature range

• Type of hydraulic fluid

• Exposure to contaminants or chemicals

Common seal materials include polyurethane, nitrile rubber, and fluoropolymer-based materials. These materials provide good resistance to wear, pressure, and temperature variations.

Rod seals, piston seals, and wiper seals each serve different functions within the hydraulic cylinder, and their materials must be selected to maintain long-term sealing performance.

Guide Rings and Wear Components

Guide rings, sometimes called wear rings, are used to guide the piston and piston rod within the cylinder. These components prevent metal-to-metal contact between moving parts and help maintain alignment.

Guide rings are typically manufactured from durable composite materials or reinforced polymers. These materials offer excellent wear resistance while minimizing friction.

Proper guide ring material selection helps reduce internal wear and extends the operational lifespan of the hydraulic cylinder.

Corrosion Resistance and Environmental Protection

Hydraulic cylinders often operate in challenging environments, including construction sites, agricultural fields, marine environments, and industrial plants. Exposure to moisture, chemicals, dust, or abrasive materials can affect the performance of cylinder components.

To improve corrosion resistance, manufacturers may apply protective treatments such as:

• Chrome plating

• Nickel plating

• Anti-corrosion coatings

• Stainless steel components for specific environments

Selecting materials that match the operating environment helps prevent premature wear and structural damage.

Balancing Strength, Weight, and Cost

Material selection also involves balancing performance requirements with manufacturing costs and equipment weight. High-strength materials may increase production cost but provide greater durability and longer service life.

For heavy industrial machinery, strength and reliability are typically the highest priorities. In mobile equipment, reducing weight while maintaining structural integrity may also be an important consideration.

Engineers must evaluate all these factors when selecting materials for customized hydraulic cylinder components.

Working with Experienced Manufacturers

Selecting the correct materials for a custom hydraulic cylinder requires engineering expertise and knowledge of hydraulic system design. Experienced manufacturers can provide guidance on material selection based on application requirements, pressure ratings, and environmental conditions.

By working closely with a professional hydraulic cylinder manufacturer, equipment designers can ensure that all cylinder components are manufactured from materials that meet performance and durability expectations.

Conclusion

Material selection is a fundamental part of designing customized hydraulic cylinders. The strength, wear resistance, and corrosion protection of each component directly affect the performance and service life of the cylinder.

By carefully selecting appropriate materials for the cylinder barrel, piston rod, piston, end caps, seals, and guide components, manufacturers can produce hydraulic cylinders capable of operating reliably under demanding industrial conditions. Proper material selection not only improves durability but also helps ensure efficient and stable operation across a wide range of hydraulic applications.
