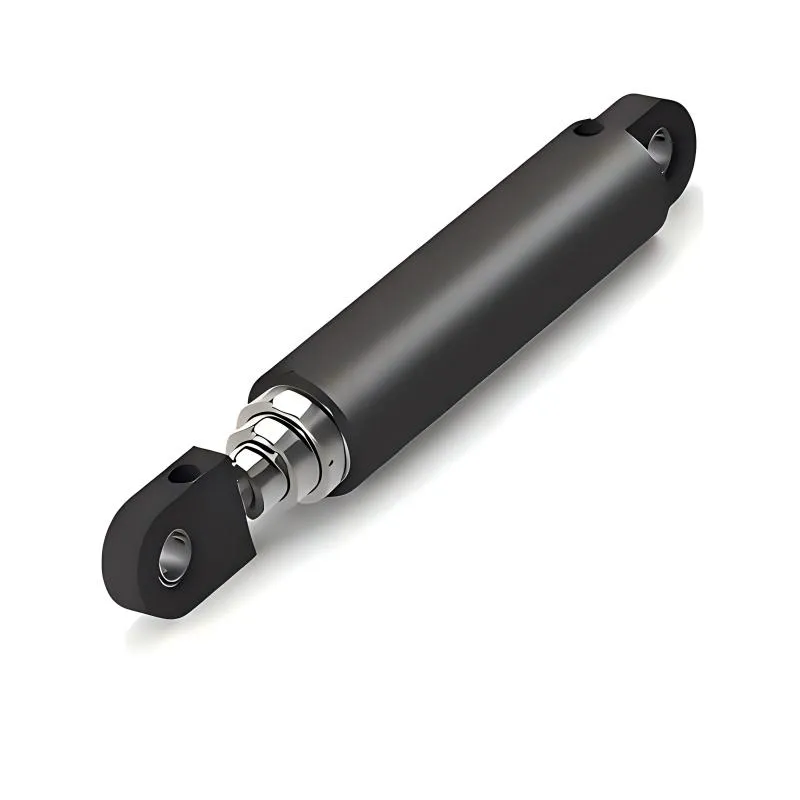

Hydraulic cylinders are critical components in hydraulic systems, providing the force and motion required for various types of industrial equipment. When ordering a customized hydraulic cylinder, it is essential to clearly define key technical parameters such as bore size, stroke length, and working pressure. These specifications directly determine the cylinder’s performance, load capacity, and operational reliability.

Accurate parameter selection helps ensure that the hydraulic cylinder matches the mechanical design of the equipment while delivering efficient and stable operation. Understanding how to specify these custom requirements is an important step for equipment manufacturers, system integrators, and engineers.

Understanding Hydraulic Cylinder Bore

The bore of a hydraulic cylinder refers to the inner diameter of the cylinder tube where the piston moves. Bore size plays a major role in determining the force output of the cylinder. A larger bore allows the cylinder to generate greater pushing force under the same hydraulic pressure.

When specifying bore size, engineers usually calculate the required output force based on the equipment’s load conditions. The relationship between pressure and force determines the appropriate cylinder diameter.

If the bore is too small, the cylinder may not produce sufficient force to operate the equipment effectively. If the bore is excessively large, it may increase hydraulic fluid consumption and system cost without improving performance.

Selecting the correct bore size ensures efficient energy use and proper system balance.

Determining the Correct Stroke Length

Stroke length refers to the distance the piston travels within the cylinder from the fully retracted position to the fully extended position. This parameter must match the mechanical movement required by the equipment.

Different machines require different stroke lengths depending on their working functions. For example:

• Excavator arms require long stroke cylinders for large movement ranges

• Dump trucks use cylinders with long extension distances for lifting cargo beds

• Industrial presses may require short but high-force strokes

When designing a customized hydraulic cylinder, engineers evaluate the motion path of the equipment to determine the required stroke length. The cylinder should provide sufficient movement without exceeding the mechanical limits of the system.

In addition, adequate safety margins should be considered to prevent mechanical interference during operation.

Selecting the Appropriate Working Pressure

Working pressure is another critical parameter when specifying a hydraulic cylinder. Hydraulic systems operate within a certain pressure range, and the cylinder must be designed to withstand both the normal working pressure and potential pressure peaks.

Typical industrial hydraulic systems operate between 16 MPa and 35 MPa, although specialized applications may require higher pressure ratings.

When specifying pressure requirements, several factors should be considered:

• Maximum operating pressure of the hydraulic system

• Load conditions during peak operation

• Safety factors required by industry standards

• Structural strength of the cylinder components

The cylinder barrel, piston rod, seals, and end caps must all be designed to safely handle the specified pressure level.

Matching Bore, Stroke, and Pressure for Optimal Performance

Bore, stroke, and pressure are interconnected parameters that must be carefully balanced during cylinder design. Together, they determine the cylinder’s force output, speed, and overall performance.

For example, increasing the bore size increases force output but also requires more hydraulic fluid to fill the cylinder. Increasing stroke length affects the total travel distance and influences system cycle time. Higher pressure allows more force with a smaller bore but requires stronger materials and sealing systems.

A well-designed customized hydraulic cylinder balances these parameters to achieve efficient performance without excessive system load.

Considering Rod Diameter and Structural Strength

Although bore, stroke, and pressure are primary specifications, the piston rod diameter is also an important design factor. The rod must be strong enough to withstand the forces generated by the hydraulic pressure without bending or buckling.

For long-stroke cylinders or heavy-load applications, larger rod diameters are often required to maintain structural stability. Engineers typically calculate rod strength based on load conditions, cylinder orientation, and mounting configuration.

Surface treatment of the piston rod, such as chrome plating, is also important for wear resistance and corrosion protection.

Evaluating Mounting Configuration and Installation Space

When specifying a customized hydraulic cylinder, it is also important to consider how the cylinder will be installed within the equipment. Mounting configuration affects load distribution, movement alignment, and overall system performance.

Common mounting styles include:

• Flange mounting

• Clevis mounting

• Trunnion mounting

• Foot mounting

• Pin connections

The mounting style should match the mechanical design of the equipment and allow the cylinder to move freely without generating unnecessary stress on the components.

Proper installation alignment improves cylinder efficiency and extends service life.

Considering Environmental and Operating Conditions

Hydraulic cylinders often operate in demanding environments such as construction sites, mining operations, or outdoor agricultural fields. Environmental conditions can significantly affect cylinder durability.

When specifying custom requirements, it is important to evaluate:

• Exposure to dust, mud, or abrasive particles

• Temperature variations

• Corrosive environments such as marine applications

• Continuous or intermittent operating cycles

These factors influence material selection, seal design, and surface protection requirements for the cylinder.

Providing Detailed Technical Information to the Manufacturer

To ensure accurate customization, equipment manufacturers should provide detailed technical information when ordering a hydraulic cylinder. This helps the cylinder manufacturer design a product that matches the application precisely.

Important information typically includes:

• Required bore diameter

• Stroke length

• Working pressure range

• Mounting configuration

• Installation dimensions

• Operating environment

• Required load capacity

Providing clear technical specifications reduces the risk of design errors and helps manufacturers deliver cylinders that meet performance expectations.

Conclusion

Specifying the correct bore size, stroke length, and pressure rating is essential when designing or ordering customized hydraulic cylinders. These parameters determine the cylinder’s force output, motion range, and structural strength.

A well-designed cylinder must balance these factors while also considering mounting configuration, rod strength, and environmental conditions. By carefully defining custom requirements and working with an experienced hydraulic cylinder manufacturer, equipment designers can obtain hydraulic cylinders that deliver reliable performance and long service life in demanding industrial applications.
