How Stroke Length and Bore Size Affect Hydraulic Cylinder Performance

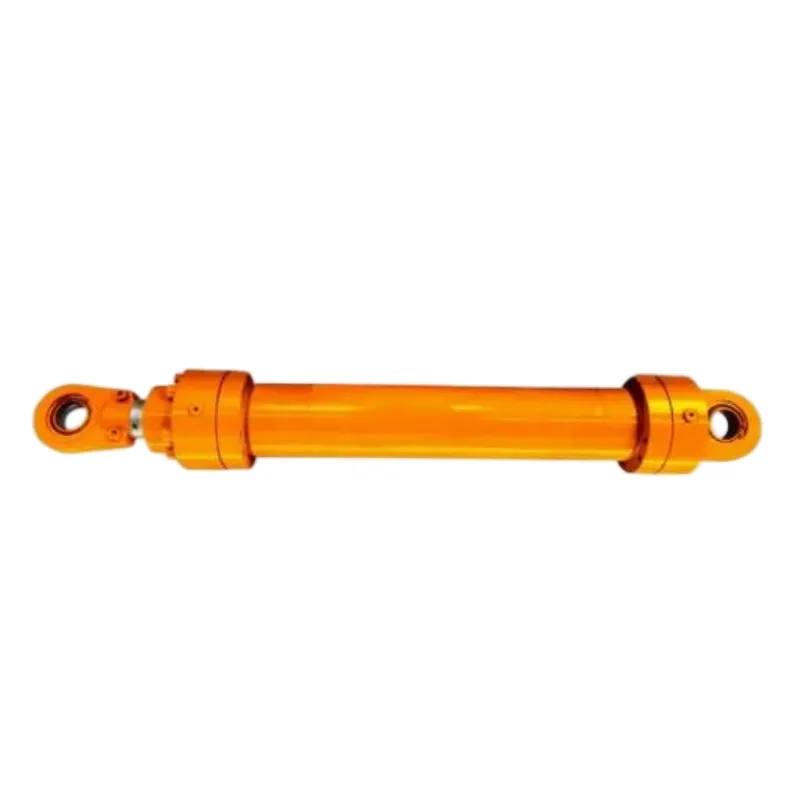

Hydraulic cylinders are widely used in industrial machinery, construction equipment, agricultural systems, and manufacturing processes. Their performance depends on several design parameters, among which stroke length and bore size are two of the most important. These two factors directly influence the force output, movement range, operating speed, and efficiency of the hydraulic system.
When designing or selecting a customized hydraulic cylinder, understanding how stroke length and bore size affect overall performance helps ensure that the cylinder matches the requirements of the equipment and operates reliably under working conditions.
The bore size of a hydraulic cylinder refers to the internal diameter of the cylinder barrel in which the piston moves. Bore size determines the piston area that hydraulic pressure acts upon, and therefore directly affects the force generated by the cylinder.
A larger bore diameter increases the piston surface area, allowing the cylinder to produce greater force under the same hydraulic pressure. This makes large-bore cylinders suitable for heavy-load applications such as construction machinery, mining equipment, and industrial presses.
Conversely, a smaller bore diameter generates less force but requires less hydraulic fluid to operate. Smaller cylinders are often used in lighter machinery, automation systems, or equipment where compact design is important.
Selecting the appropriate bore size is essential for balancing force requirements and hydraulic system efficiency.
The output force of a hydraulic cylinder is determined by the relationship between hydraulic pressure and piston area. As bore size increases, piston area increases, allowing more hydraulic pressure to act on the piston surface.
This means that two cylinders operating at the same hydraulic pressure can generate very different forces depending on their bore diameters. For heavy-duty equipment that requires significant pushing or pulling force, engineers typically specify cylinders with larger bores.
However, increasing bore size also increases the amount of hydraulic fluid required to move the piston, which can affect system speed and pump capacity.
Stroke length refers to the distance the piston travels inside the cylinder from the fully retracted position to the fully extended position. This parameter determines the movement range that the hydraulic cylinder can provide within a mechanical system.
Different machines require different stroke lengths depending on their operational functions. For example:
Excavators require long strokes to move boom and arm structures
Dump trucks use long-stroke cylinders to lift cargo beds
Industrial presses may require short strokes but high force
Selecting the correct stroke length ensures that the hydraulic cylinder can achieve the required movement range without exceeding the mechanical limits of the equipment.
Stroke length affects several aspects of hydraulic cylinder performance, including equipment motion, system cycle time, and structural stability.
A longer stroke allows the cylinder to move components over greater distances, which is necessary for equipment with large mechanical movements. However, long-stroke cylinders require more hydraulic fluid to complete each cycle, which may slow down system operation if pump capacity is limited.
Longer strokes also require careful design of the piston rod to prevent bending or buckling under load. In heavy-duty equipment, larger rod diameters are often used for long-stroke cylinders to maintain structural stability.
Short-stroke cylinders typically provide faster movement and more compact designs but are limited in their range of motion.
Bore size and stroke length are interconnected parameters that must be balanced carefully during cylinder design. Together, they determine the force capacity, motion range, and efficiency of the hydraulic system.
For example, a cylinder with a large bore and long stroke can generate high force and long movement range, making it suitable for heavy lifting equipment. However, such cylinders require a significant volume of hydraulic fluid and strong structural support.
A smaller bore with a shorter stroke may be ideal for compact industrial machinery where precise movement and space efficiency are more important than high load capacity.
Properly balancing these parameters ensures that the hydraulic cylinder delivers the required performance without overloading the hydraulic system.
Bore size and stroke length also influence the overall efficiency of the hydraulic system. Larger bores require higher fluid volume to move the piston, which increases demand on hydraulic pumps and reservoirs.
Similarly, longer strokes require more fluid displacement per cycle. If the hydraulic system is not designed to handle this volume efficiently, it can reduce operational speed and increase energy consumption.
Engineers must evaluate the hydraulic system capacity when selecting cylinder dimensions to ensure that the system can deliver adequate flow and pressure.
When stroke length increases, the piston rod becomes more susceptible to mechanical stress and potential bending. To maintain stability, engineers may increase the rod diameter or select stronger materials.
Cylinder barrels must also be designed to handle the pressure generated by larger bore sizes. Thicker walls and high-strength materials are often required for cylinders operating at high pressure levels.
In customized hydraulic cylinder design, these structural factors are carefully evaluated to ensure long-term durability and safe operation.
In construction machinery such as excavators and loaders, hydraulic cylinders often feature large bore diameters and long strokes to provide powerful lifting capabilities and extended movement range.
In agricultural machinery, cylinder designs may vary depending on the specific task, such as lifting equipment attachments or adjusting machine components.
Industrial automation systems often use smaller bore cylinders with shorter strokes for precise positioning and faster operation cycles.
Each application requires a specific balance between bore size and stroke length to achieve optimal performance.
Stroke length and bore size are two fundamental parameters that significantly affect the performance of hydraulic cylinders. Bore size determines the force output of the cylinder, while stroke length defines the movement range required by the equipment.
Selecting the correct combination of these parameters ensures that the hydraulic cylinder can deliver sufficient force, efficient motion, and reliable operation within the hydraulic system. By carefully analyzing equipment requirements and hydraulic system capacity, engineers can design customized hydraulic cylinders that provide optimal performance across a wide range of industrial applications.
