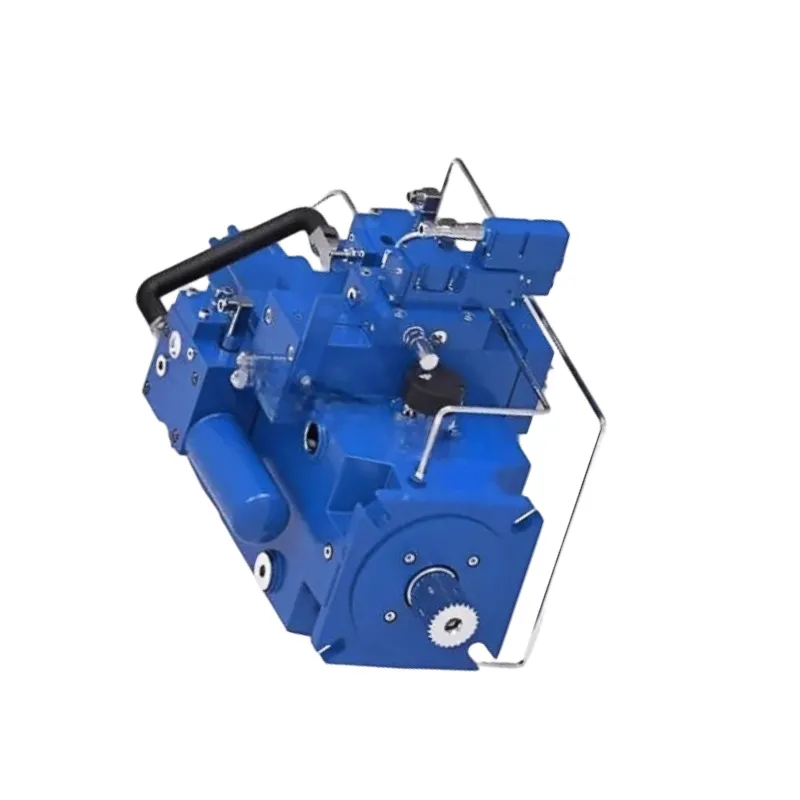

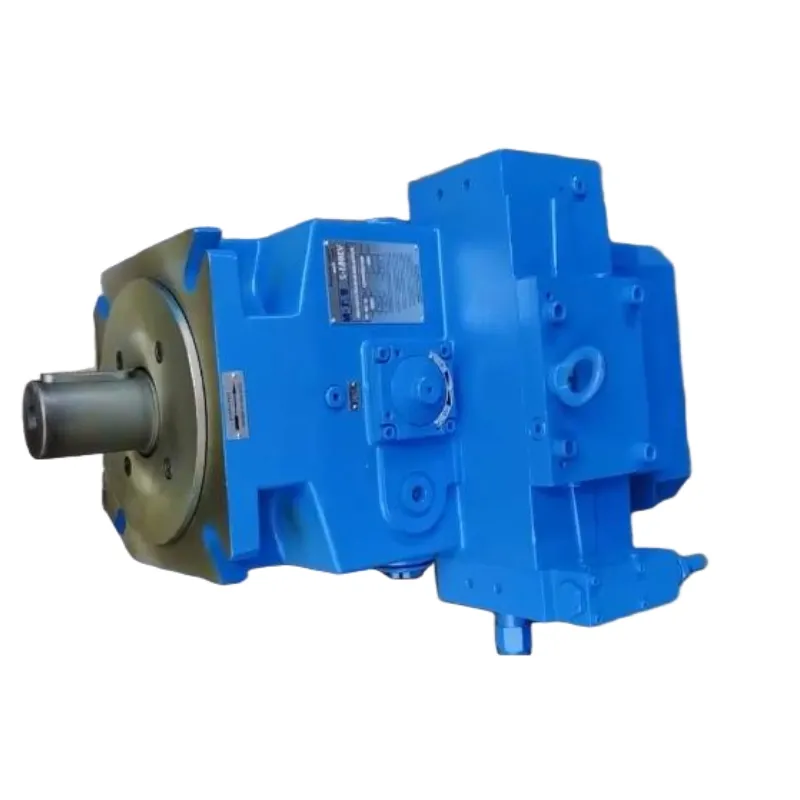

KC-PVW130-750 Danfoss series Axial Piston Variable Pump Industrial Machinery

The PVW series belongs to the axial piston variable displacement pump series of Danfoss and is commonly used in open - circuit hydraulic systems. The pump body is usually made of high - strength cast iron, which has excellent compressive and impact - resistant properties. Key moving parts such as pistons are mostly made of wear - resistant alloy steel to ensure long - term stable operation. By changing the angle of the swash plate, the pistons move back and forth in the cylinder block, thereby changing the displacement of the pump and completing the processes of oil suction and oil discharge.

Inquire Now Next Prodcut

Advantages

RS & AST eff prevent leakage, ensure LTR operation.

Sup wide range of RS, adapt to DWCs with ease.

MD allows quick D & R of comps, sig reduce MT & costs.

Opt HFP & VD design reduce ON, create a quieter WE.

Technical Data

Type	Displacementcm³/rev	Operating pressure up to bar	Peakpressure bar	Max speedRmp	Shaft Type	Control Method
PVW130	130	350	420	2200	Splined shaft	PC、LSC、EPC、FC
PVW180	180	350	420	2000	Splined shaft	PC、LSC、EPC、FC
PVW250	250	350	420	1800	Splined shaft	PC、LSC、EPC、FC
PVW350	350	350	420	1600	Splined shaft	PC、LSC、EPC、FC
PVW500	500	350	420	1400	Splined shaft	PC、LSC、EPC、FC
PVW750	750	350	420	1200	Splined shaft	PC、LSC、EPC、FC

Applications

Port cranes, providing stable and precise lifting power for heavy - duty cargo handling.

Road pavers, powering the hydraulic mechanisms for uniform asphalt spreading.

Metal extruders, supplying high - pressure hydraulic force for shaping metal materials.

Tunnel boring machines, driving the hydraulic cylinders for cutterhead rotation and forward thrust.

FAQ

How do you ensure product reliability without in-house production?

We hold ISO 9001/TS 16949 certifications and have over 15 years of hydraulic manufacturing experience. Each batch undergoes a 5-stage quality verification, including pressure cycle testing and material composition analysis.
How to handle component failures during the warranty period?

We offer a 12-month limited warranty (covering manufacturing defects). Simply send a diagnostic video via our platform, and our engineers will confirm repair/replacement solutions online.
Can technical drawings be provided for custom projects?

After confirming the deposit, engineering schematics can be shared under an NDA. Our advanced production system shortens lead times by 30% compared to traditional suppliers.
What is the minimum order quantity (MOQ) for hydraulic valves?

Standard models have a flexible MOQ of 50 pieces. Sample orders start from 20 pieces.
How to handle urgent breakdowns?

Our national partners stock critical spare parts in 6 regional centers, with priority delivery services available at major ports.
What are the payment terms for new customers?

A 50% T/T advance payment is required for the first transaction. Payment terms can be further discussed after three consecutive successful deliveries.
Are certification documents available?

Each shipment includes CE/ISO/REACH certificates. Special certifications (e.g., ATEX) require 45 days' prior notice.
Can you provide samples?

Yes. We can supply samples for your testing and verification needs. For sample requests, please inform us of the specific product model, quantity, and any special requirements. We’ll communicate details like sample preparation time, shipping arrangements, and relevant costs (e.g., sample production fees, logistics charges; partial costs may be negotiable under certain conditions).
