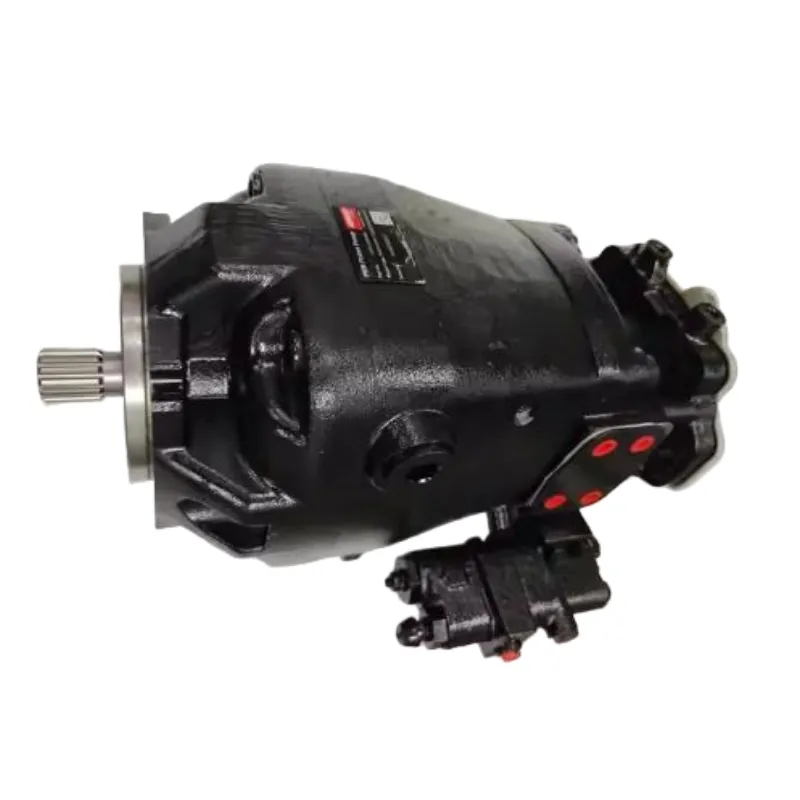

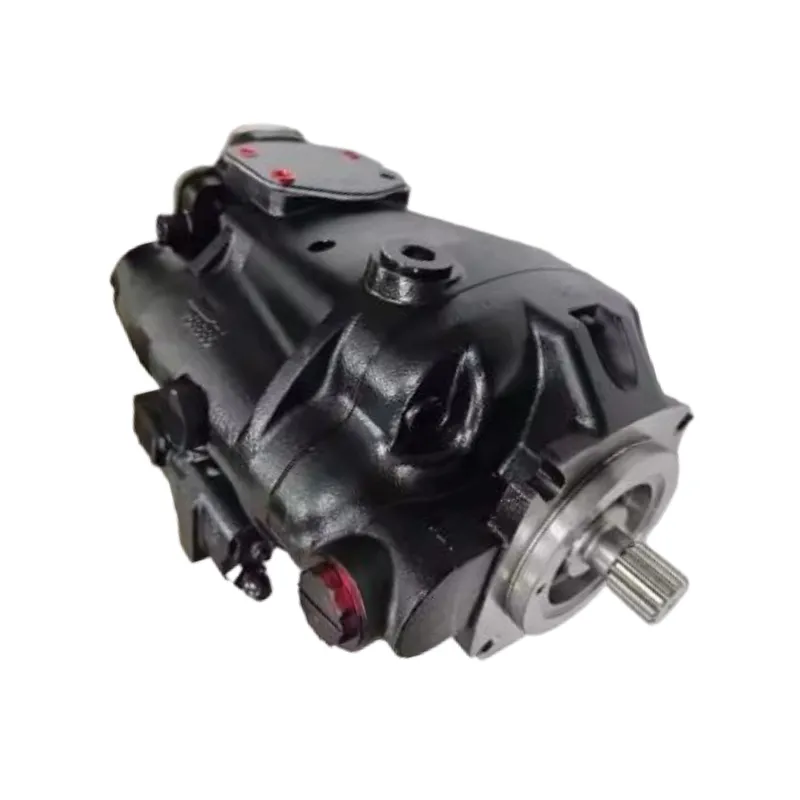

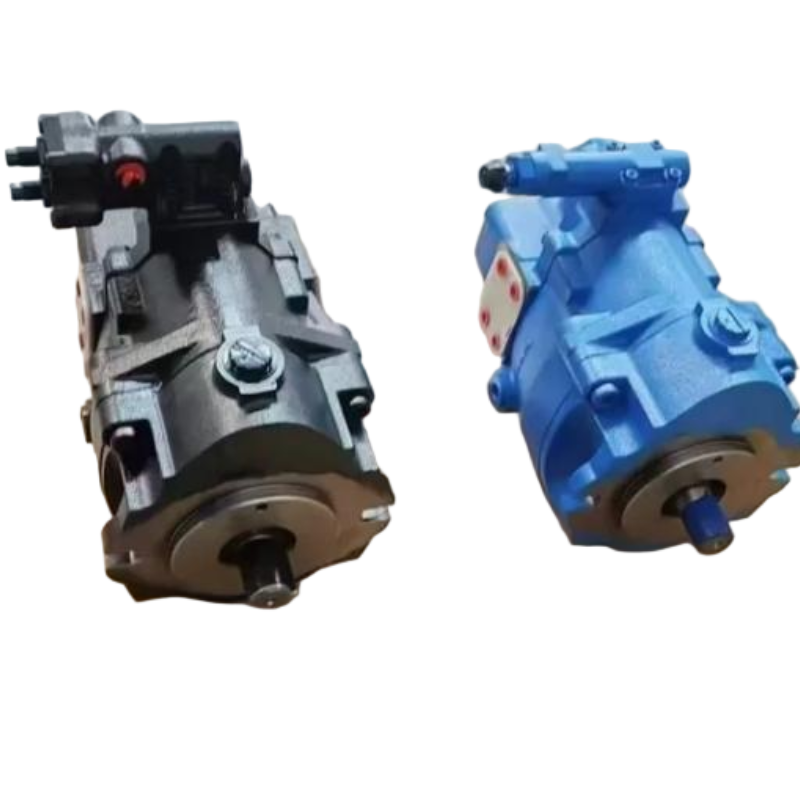

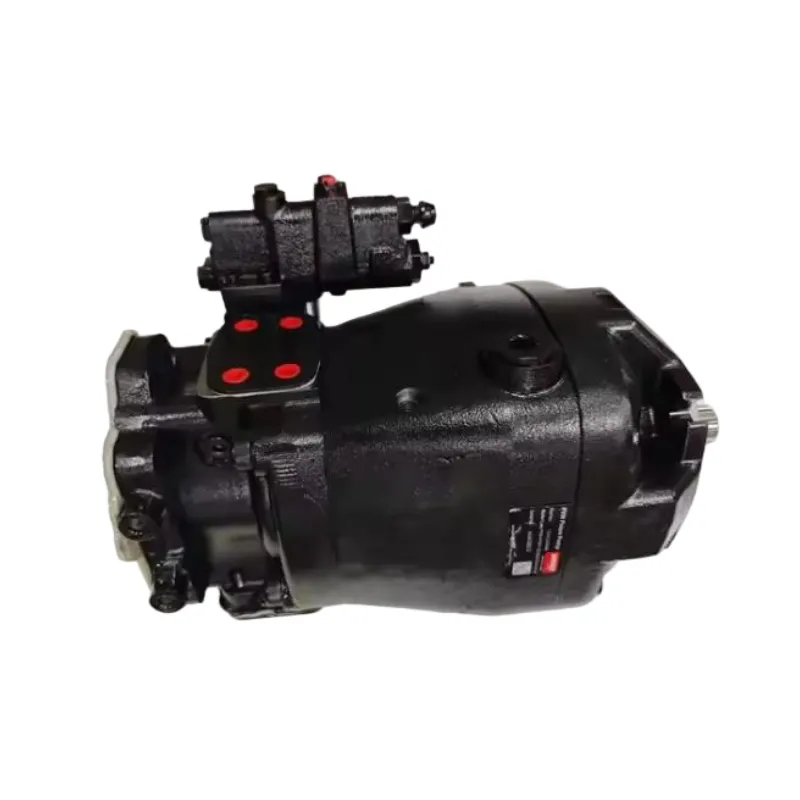

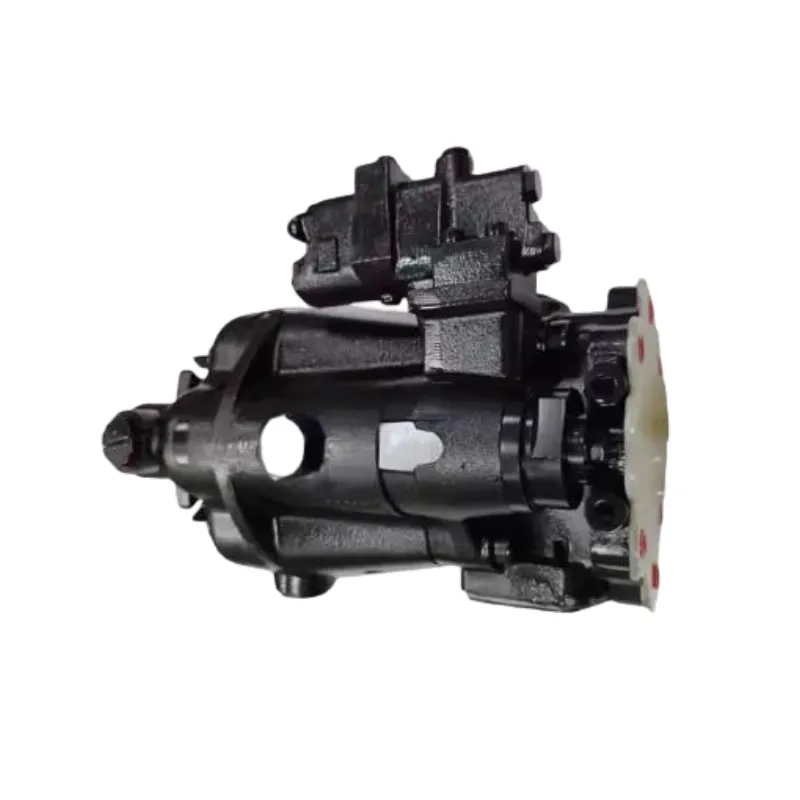

KC-PVM18-141 Danfoss series Axial Piston Variable Pump Agricultural Machinery

PVM is an open - circuit axial piston variable displacement pump. The pump body is made of cast iron, and the pistons are made of wear - resistant alloys. The motor drives the drive shaft to rotate the cylinder block, causing the pistons to move back and forth. By changing the angle of the swash plate, the displacement of the pump is adjusted to achieve oil suction and discharge.

Inquire Now Next Prodcut

Advantages

Ultra - quiet operation reduces environmental noise pollution.

Compact design enables installation in space - constrained areas.

High - pressure rating allows for heavy - duty applications.

Wide displacement range provides versatility.

Technical Data

Type	Displacementcm³/rev	Operating pressure up to bar	Peakpressure bar	Max speedRmp	Shaft Type	Control Method
PVM018	18	350	400	3000	Splined shaft	PC、LSC、EPC
PVM045	45	350	400	2800	Splined shaft	PC、LSC、EPC
PVM074	74	350	400	2500	Splined shaft	PC、LSC、EPC
PVM098	98	350	400	2200	Splined shaft	PC、LSC、EPC
PVM131	131	350	400	2000	Splined shaft	PC、LSC、EPC
PVM141	141	350	400	1800	Splined shaft	PC、LSC、EPC

Applications

Metal cutting machines for precise machining.

Oil & gas extraction equipment for powering drilling operations.

Mining machinery to drive conveying and lifting systems.

Marine deck equipment like winches and cranes.

Energy production facilities for hydraulic power needs.

FAQ

How do you ensure product reliability without in-house production?

We hold ISO 9001/TS 16949 certifications and have over 15 years of hydraulic manufacturing experience. Each batch undergoes a 5-stage quality verification, including pressure cycle testing and material composition analysis.
How to handle component failures during the warranty period?

We offer a 12-month limited warranty (covering manufacturing defects). Simply send a diagnostic video via our platform, and our engineers will confirm repair/replacement solutions online.
Can technical drawings be provided for custom projects?

After confirming the deposit, engineering schematics can be shared under an NDA. Our advanced production system shortens lead times by 30% compared to traditional suppliers.
What is the minimum order quantity (MOQ) for hydraulic valves?

Standard models have a flexible MOQ of 50 pieces. Sample orders start from 20 pieces.
How to handle urgent breakdowns?

Our national partners stock critical spare parts in 6 regional centers, with priority delivery services available at major ports.
What are the payment terms for new customers?

A 50% T/T advance payment is required for the first transaction. Payment terms can be further discussed after three consecutive successful deliveries.
Are certification documents available?

Each shipment includes CE/ISO/REACH certificates. Special certifications (e.g., ATEX) require 45 days' prior notice.
Can you provide samples?

Yes. We can supply samples for your testing and verification needs. For sample requests, please inform us of the specific product model, quantity, and any special requirements. We’ll communicate details like sample preparation time, shipping arrangements, and relevant costs (e.g., sample production fees, logistics charges; partial costs may be negotiable under certain conditions).
