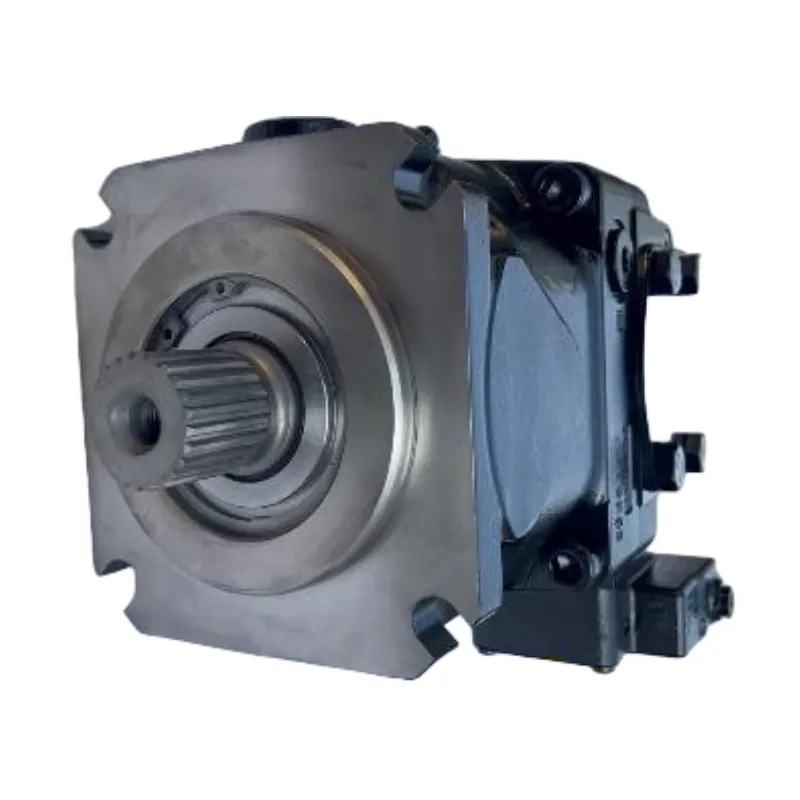

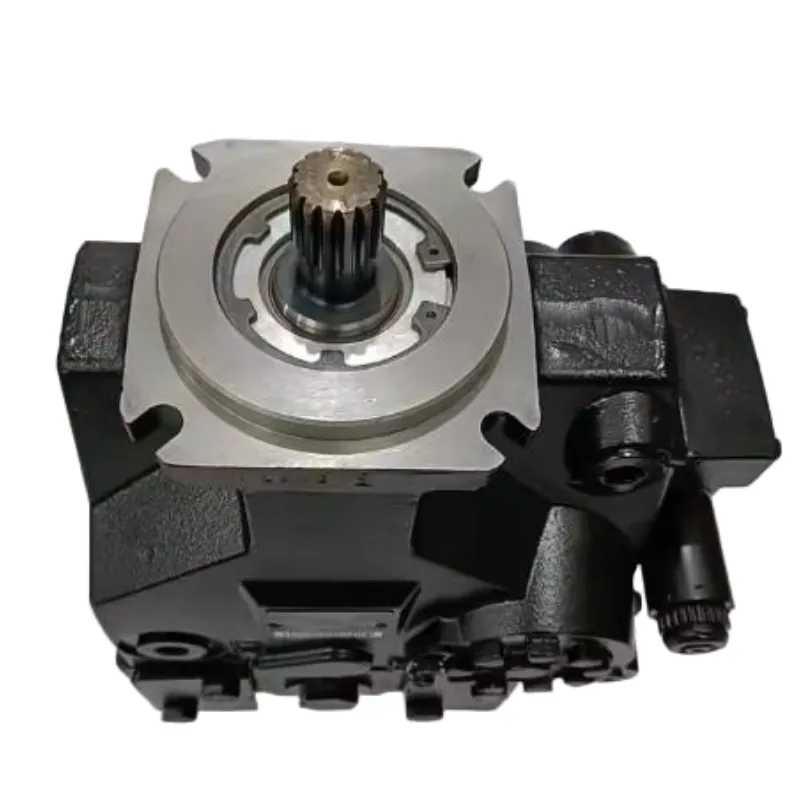

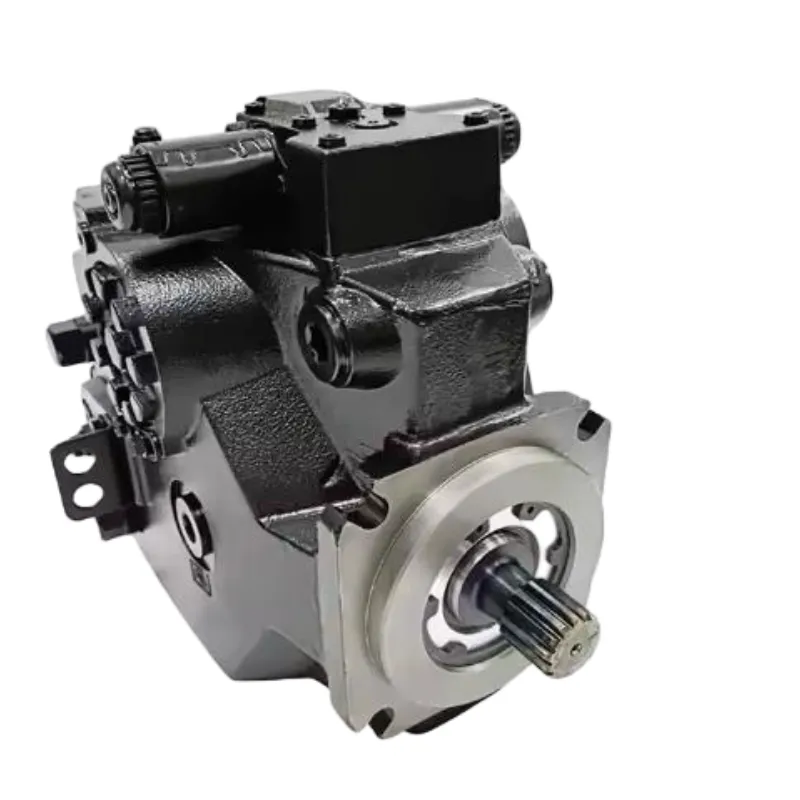

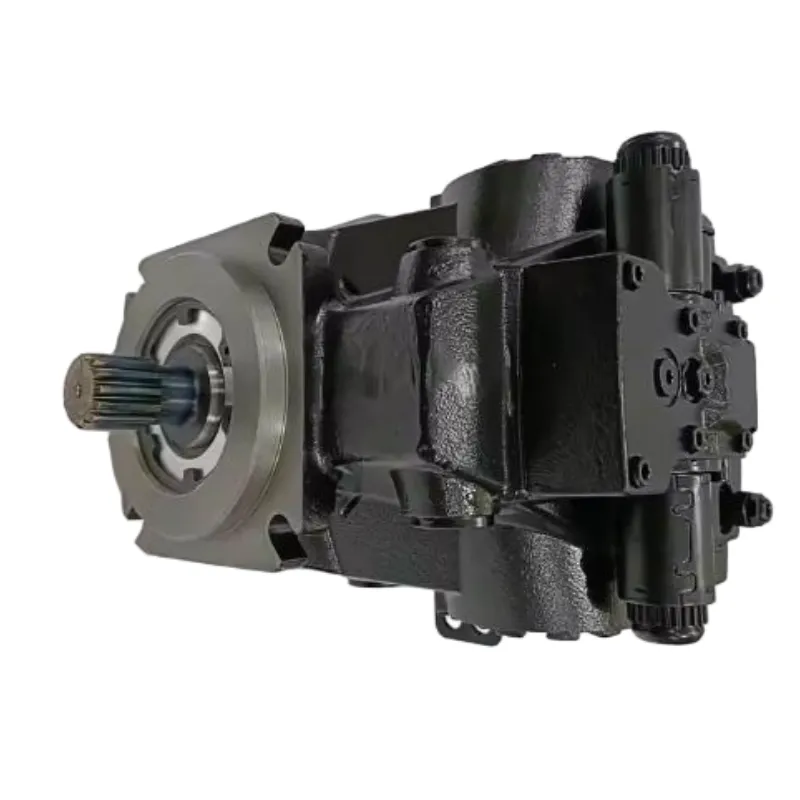

KC-H1P045-280 Danfoss series Axial Piston Variable Pump Agricultural Machinery

When the H1P series closed axial piston pump is working, the motor drives the pump shaft to rotate, so that the plunger in the cylinder body does reciprocating motion. When the plunger moves outward, the volume of the plunger cavity increases, forming a negative pressure, and the oil is sucked into the plunger cavity from the oil tank through the distribution plate; When moving inward, the volume of the plunger cavity decreases, and the oil is compressed and output to the hydraulic system through the distribution plate. By changing the angle of the swash plate, the piston stroke can be adjusted, and then the displacement and output flow of the pump can be adjusted.

Inquire Now Next Prodcut

Advantages

High efficiency, reducing energy consumption.

Compact design, saving installation space.

Excellent control performance for precise operation.

Technical Data

Type	Displacementcm³/rev	Operating pressure up to bar	Peakpressure bar	Max speedRmp	Shaft Type	Control Method
H1P045	45	350	400	3000	Splined shaft	FC, PC, EC
H1P60	60	350	400	3000	Splined shaft	FC, PC, EC
H1P78	78	350	400	2500	Splined shaft	FC, PC, EC
H1P89	89	350	400	2500	Splined shaft	FC, PC, EC
H1P100	100	350	400	2200	Splined shaft	FC, PC, EC
H1P115	115	350	400	2200	Splined shaft	FC, PC, EC
H1P130	130	350	400	2000	Splined shaft	FC, PC, EC
H1P210	210	350	400	1800	Splined shaft	FC, PC, EC
H1P250	250	350	400	1500	Splined shaft	FC, PC, EC
H1P280	280	350	400	1500	Splined shaft	FC, PC, EC

Applications

Construction machinery for powering various functions.

Agricultural machinery for efficient farming operations.

Industrial vehicles for smooth movement and operation.

FAQ

How do you ensure product reliability without in-house production?

We hold ISO 9001/TS 16949 certifications and have over 15 years of hydraulic manufacturing experience. Each batch undergoes a 5-stage quality verification, including pressure cycle testing and material composition analysis.
How to handle component failures during the warranty period?

We offer a 12-month limited warranty (covering manufacturing defects). Simply send a diagnostic video via our platform, and our engineers will confirm repair/replacement solutions online.
Can technical drawings be provided for custom projects?

After confirming the deposit, engineering schematics can be shared under an NDA. Our advanced production system shortens lead times by 30% compared to traditional suppliers.
What is the minimum order quantity (MOQ) for hydraulic valves?

Standard models have a flexible MOQ of 50 pieces. Sample orders start from 20 pieces.
How to handle urgent breakdowns?

Our national partners stock critical spare parts in 6 regional centers, with priority delivery services available at major ports.
What are the payment terms for new customers?

A 50% T/T advance payment is required for the first transaction. Payment terms can be further discussed after three consecutive successful deliveries.
Are certification documents available?

Each shipment includes CE/ISO/REACH certificates. Special certifications (e.g., ATEX) require 45 days' prior notice.
Can you provide samples?

Yes. We can supply samples for your testing and verification needs. For sample requests, please inform us of the specific product model, quantity, and any special requirements. We’ll communicate details like sample preparation time, shipping arrangements, and relevant costs (e.g., sample production fees, logistics charges; partial costs may be negotiable under certain conditions).
