KC-A6VM32-215 Rexroth series Axial Piston Variable Motor Industrial Machinery

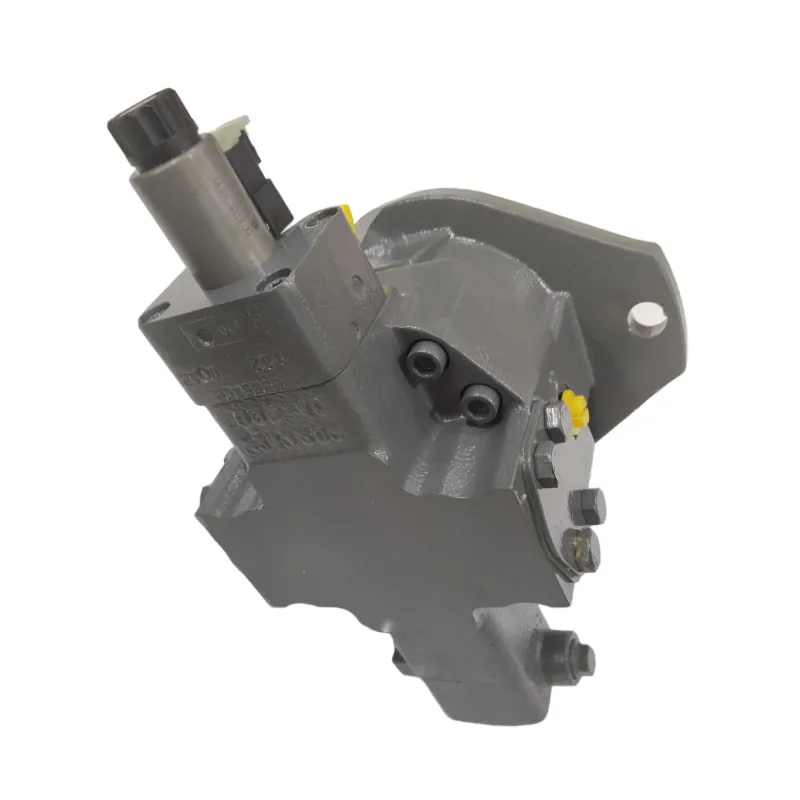

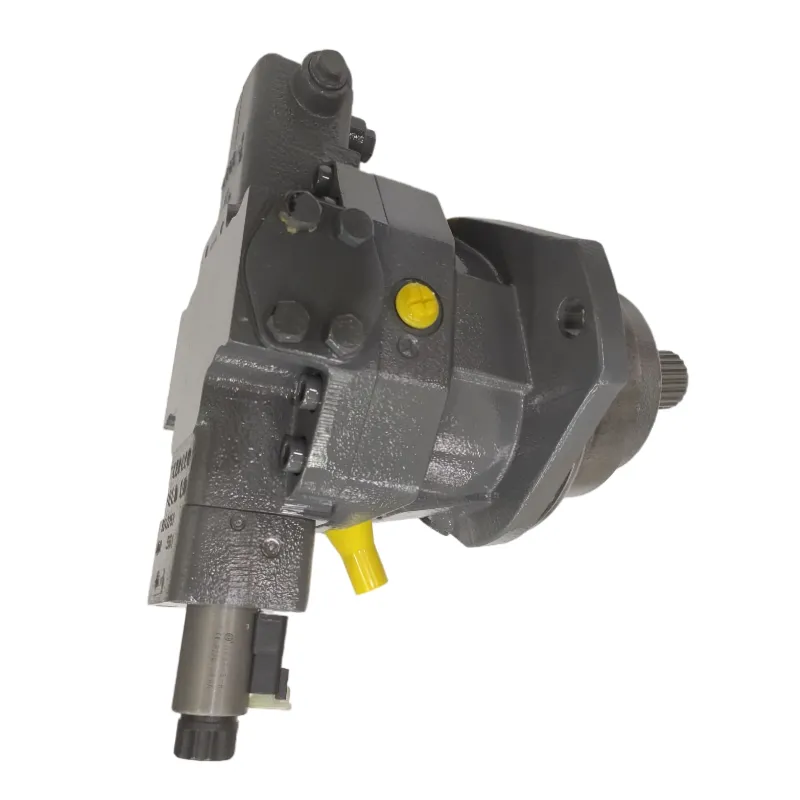

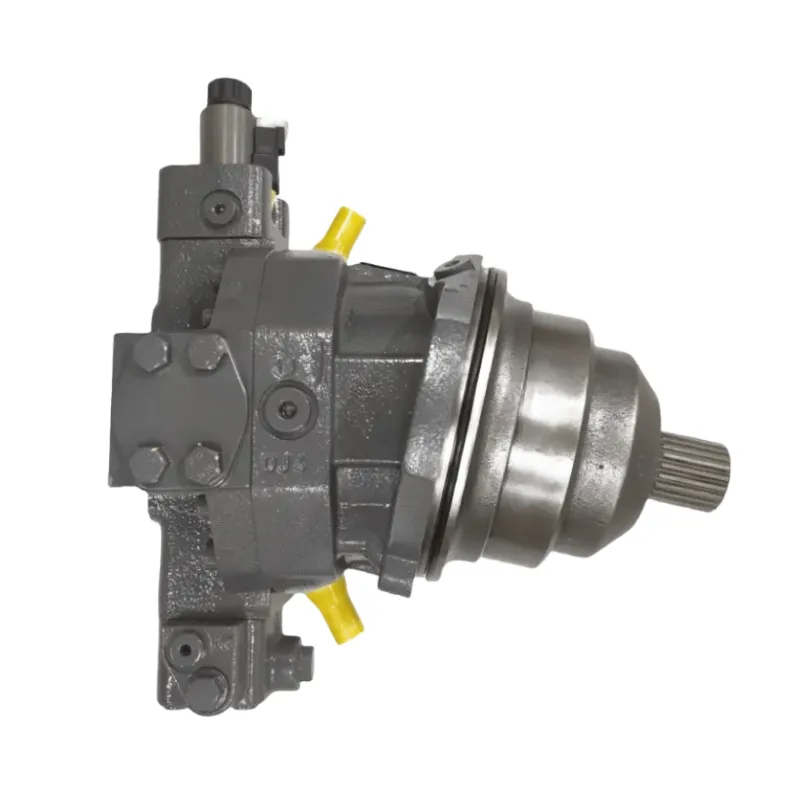

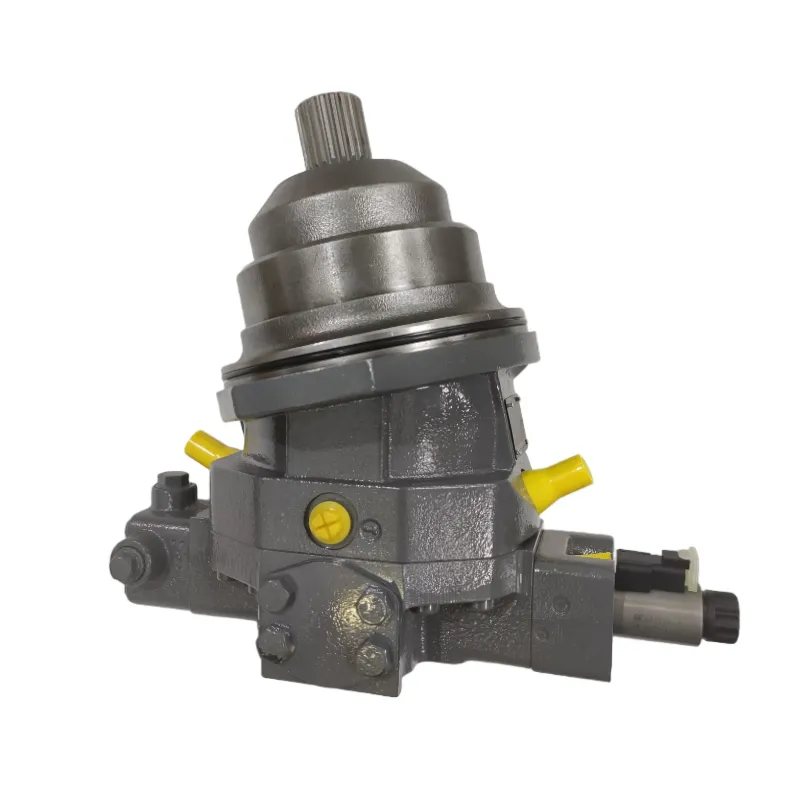

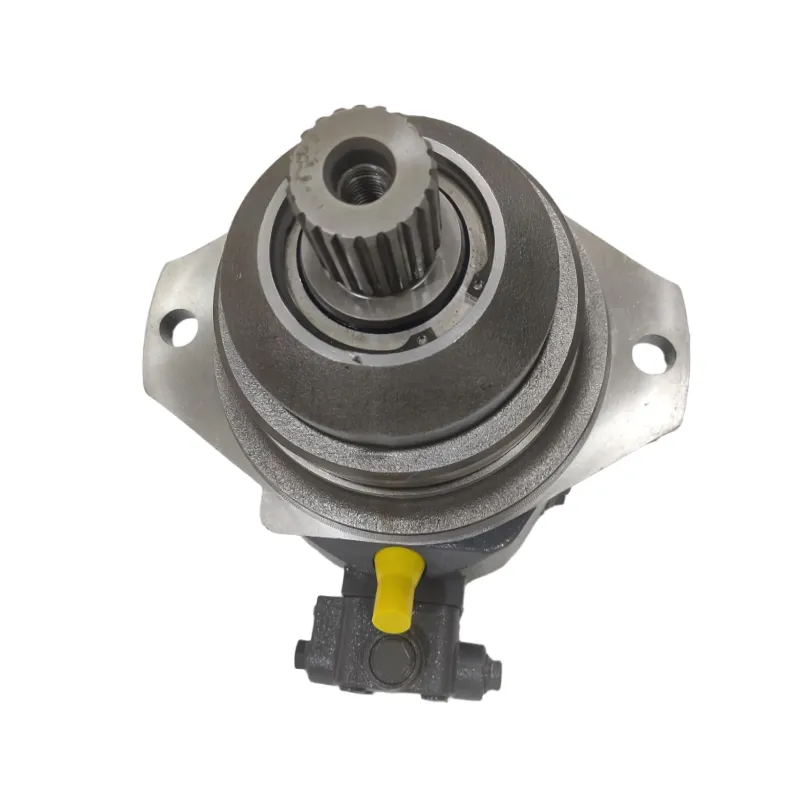

The A6VM series axial piston variable motors adopt an axial conical piston rotor group with a swash-axis design. The pump body is commonly made of cast iron, and some components are made of steel. Cast iron is solid and durable, while steel has high strength and good wear resistance.In various mechanical equipment, the A6VM series axial piston variable motors play an important role and are widely used in fields that require precise control of power output.

Inquire Now

Advantages

High variable displacement ratio: Allows for wide - range adjustment of output torque and speed.

Compact and high - power design: Delivers strong power in a relatively small size.

Good self - lubrication performance: Ensures smooth operation and long service life.

Technical Data

Type	Displacement cm³/rev	Maximum angular power （kw）	Continuous pressure max. Bar	Peak pressure Bar	Max speed Rmp	Max. output torque Nm	Mounting flange
KC-A6VM28	32	74.67	400	450	5550	200	4-hole IOS
KC-A6VM55	55	96.25	400	450	4450	394	4-hole IOS
KC-A6VM80	80	116.67	400	450	3900	610	6-hole IOS
KC-A6VM107	107	124.17	400	450	3550	828	6-hole IOS
KC-A6VM160	160	149.33	400	450	3100	1230	8-hole IOS
KC-A6VM200	200	163.33	400	450	2900	1550	8-hole IOS
KC-A6VM215	215	170.1	400	450	2900	1650	8-hole IOS

Applications

Mobile concrete pumps: Provide power for pumping concrete.

Wind power generation equipment: Drive the pitch adjustment mechanism of wind turbine blades.

Marine winches: Power the winch for loading and unloading operations on ships.

FAQ

How do you ensure product reliability without in-house production?

We hold ISO 9001/TS 16949 certifications and have over 15 years of hydraulic manufacturing experience. Each batch undergoes a 5-stage quality verification, including pressure cycle testing and material composition analysis.
How to handle component failures during the warranty period?

We offer a 12-month limited warranty (covering manufacturing defects). Simply send a diagnostic video via our platform, and our engineers will confirm repair/replacement solutions online.
Can technical drawings be provided for custom projects?

After confirming the deposit, engineering schematics can be shared under an NDA. Our advanced production system shortens lead times by 30% compared to traditional suppliers.
What is the minimum order quantity (MOQ) for hydraulic valves?

Standard models have a flexible MOQ of 50 pieces. Sample orders start from 20 pieces.
How to handle urgent breakdowns?

Our national partners stock critical spare parts in 6 regional centers, with priority delivery services available at major ports.
What are the payment terms for new customers?

A 50% T/T advance payment is required for the first transaction. Payment terms can be further discussed after three consecutive successful deliveries.
Are certification documents available?

Each shipment includes CE/ISO/REACH certificates. Special certifications (e.g., ATEX) require 45 days' prior notice.
Can you provide samples?

Yes. We can supply samples for your testing and verification needs. For sample requests, please inform us of the specific product model, quantity, and any special requirements. We’ll communicate details like sample preparation time, shipping arrangements, and relevant costs (e.g., sample production fees, logistics charges; partial costs may be negotiable under certain conditions).
