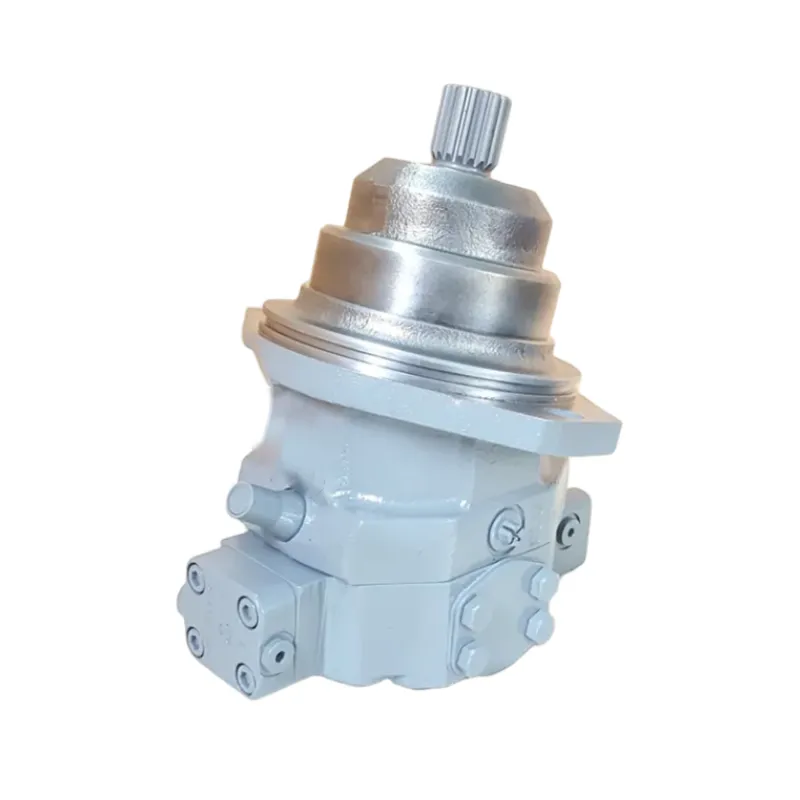

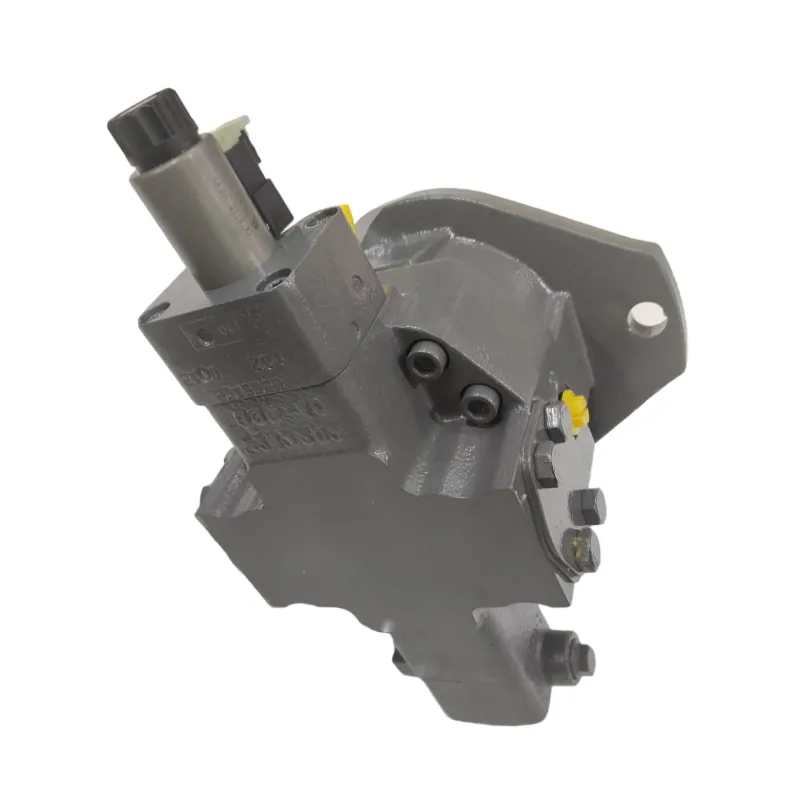

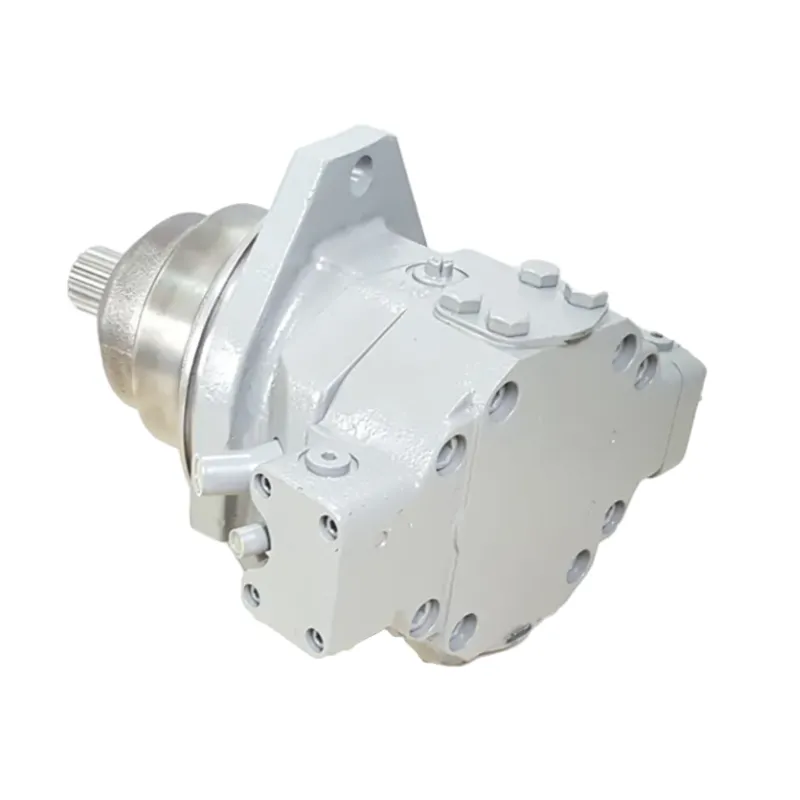

KC-A6VE28-250 Rexroth series Axial Piston Variable Motor Industrial Machinery

The A6VE series is a swash-plate type axial piston variable hydraulic motor. The main body is mostly made of cast iron, while key components are made of steel. It can withstand high pressure and frequent frictional impacts, ensuring the motor's efficient and stable operation. It can dynamically adjust the displacement according to actual working conditions, meeting the diverse requirements for speed and torque in different working scenarios.

Inquire Now Next Prodcut

Advantages

Variable displacement for flexible operation: Allows for efficient adaptation to various load conditions.

High power density design: Delivers high power output within a compact structure.

Robust construction for durability: Ensures long - term reliable operation under harsh conditions.

Technical Data

Type	Displacement cm³/rev	Maximum angular power （kw）	Continuous pressure max. Bar	Peak pressure Bar	Max speed Rmp	Max. output torque Nm	Mounting flange
KC-A6VE28	28	73.5	350	400	4000	150	4-hole SAE/ ISO
KC-A6VE55	55	96.25	350	400	3000	290	4-hole SAE/ ISO
KC-A6VE80	80	116.67	350	400	2500	420	8-hole SAE/ ISO
KC-A6VE107	107	124.17	350	400	2200	560	8-hole SAE/ ISO
KC-A6VE160	160	140	350	400	1800	840	12-hole SAE/ ISO
KC-A6VE250	250	145.83	350	400	1500	1320	16-hole SAE/ ISO

Applications

Mobile crushers: Power the crushing and conveying mechanisms for on - site material processing.

Forestry harvesters: Drive the cutting and handling components for efficient tree harvesting.

Off - highway vehicles: Provide traction and power for vehicles operating in rough terrains.
