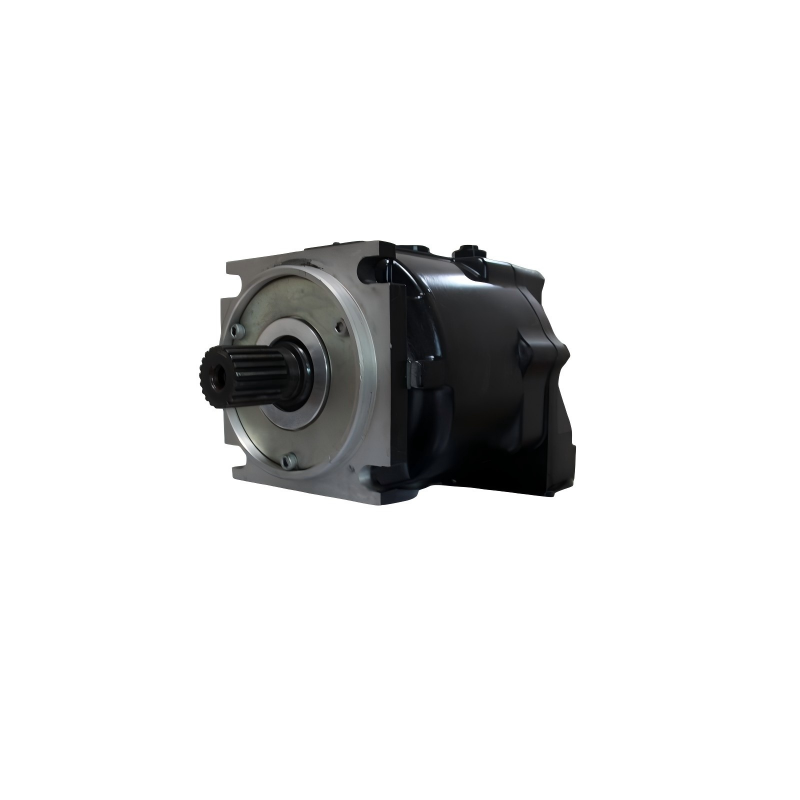

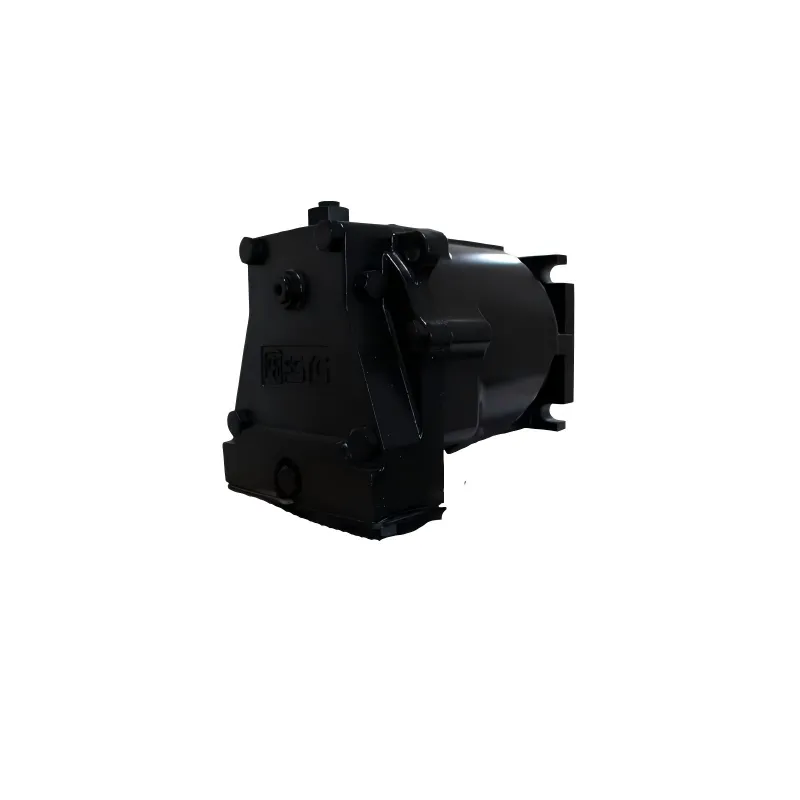

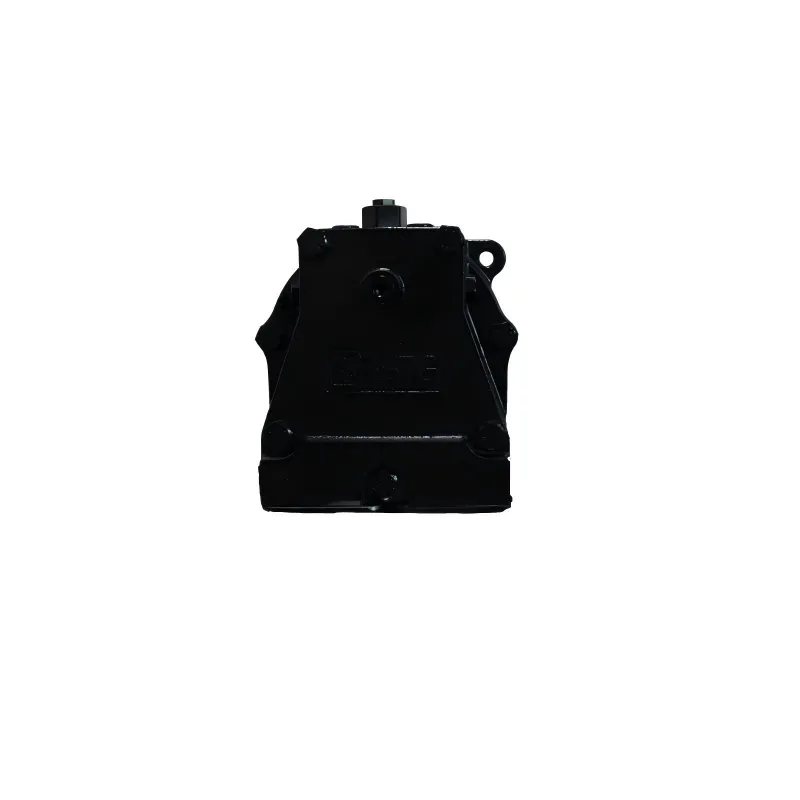

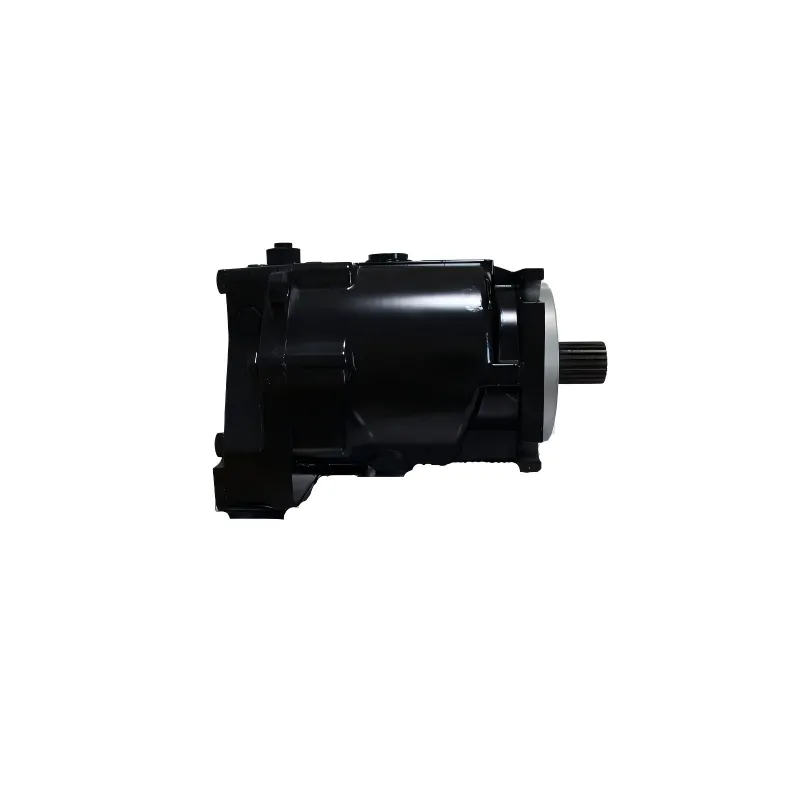

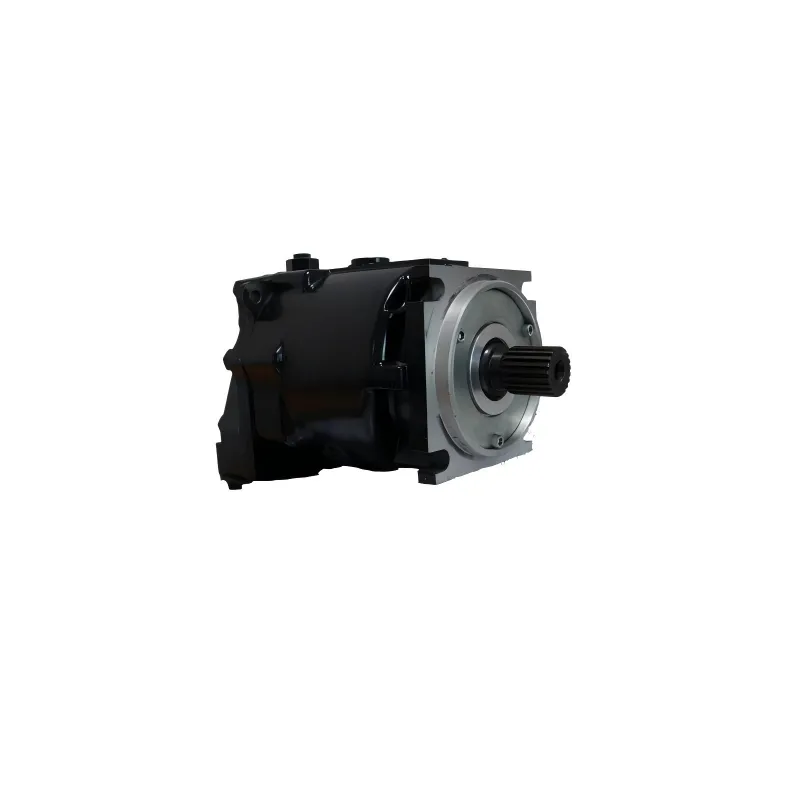

KC-FAM50-130 Danfoss series Axial Piston Fixed Motor Agricultural Machinery

KC-FAM is axial piston motors set a new standard in industrial and mobile applications with their advanced axial piston design, delivering exceptional performance and reliability. These motors feature high efficiency, compact design, and a wide range of control options to meet the most demanding operating conditions.

Inquire Now

Advantages

Superior Efficiency: Advanced axial piston technology ensures high volumetric and mechanical efficiency

Flexible Control: Multiple control options including manual, hydraulic, and electric controls

Bidirectional Rotation: Supports both forward and reverse operation for versatile applications

Robust Design: Engineered to withstand high pressures and harsh operating environments

Easy Maintenance: Modular design simplifies maintenance and repair procedures

Wide Application Range: Suitable for construction machinery, agricultural equipment, mining machinery, and more.

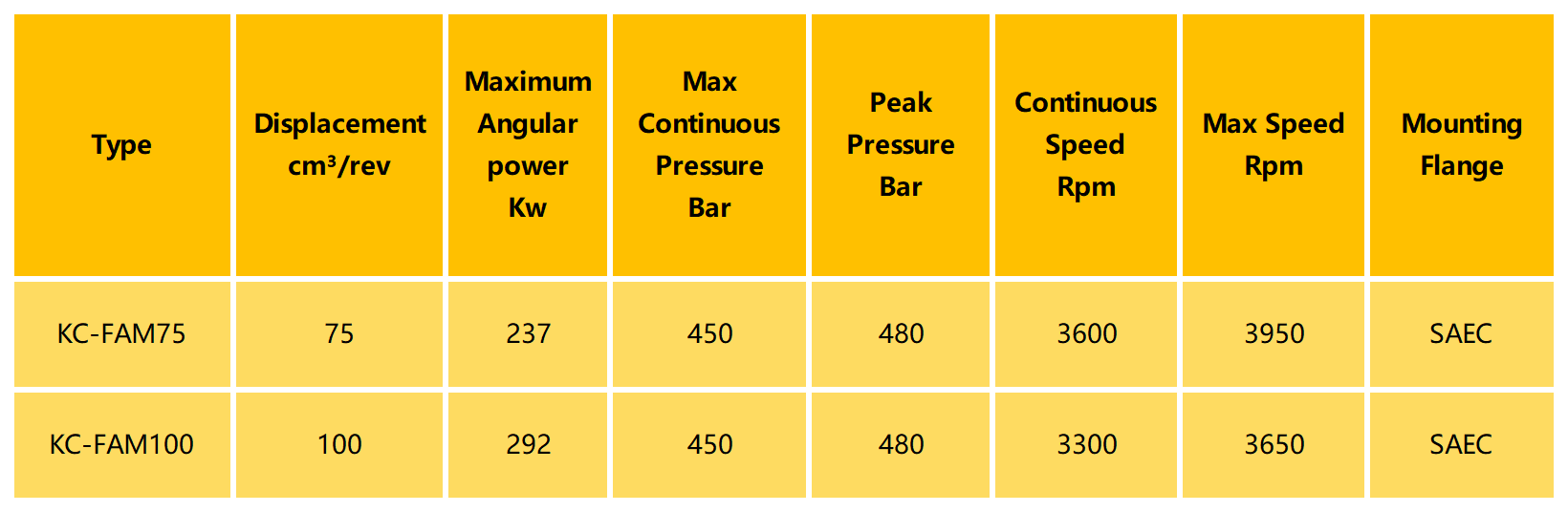

Technical Data

Type	Displacement cm³/rev	Maximum angular power Kw	Max Continuous Pressure Bar	Peak Pressure Bar	Max Speed Rpm	Mounting Flange
KC-FAM75	75	237	450	480	3950	SAEC
KC-FAM100	100	292	450	480	3650	SAEC

Applications

Construction Machinery: Widely used in excavators, loaders, cranes, bulldozers, road rollers, graders and other equipment. In excavators, it is used to drive the slewing mechanism, the lifting of the boom and stick, and the digging action of the bucket; in loaders, it is used for the travel drive and the lifting and loading/unloading operations of the working device; in cranes, it provides power for the hoisting, luffing and slewing mechanisms.

Agricultural Machinery: Such as combine harvesters, tractors, seeders, harvesters, cotton pickers, sugar cane harvesters, silage harvesters, etc. For combine harvesters, it is used for the lifting of the cutting table, the conveying device and the travel drive; for tractors, the power take - off is used to drive various agricultural implements for plowing, sowing, harvesting and other operations.

Mining Machinery: Suitable for mining winches, scraper conveyors, crushers, ball mills and other equipment. It provides power for the lifting and lowering of ores in mining winches; the drive of the scraper conveyor ensures the efficient transportation of materials; the operation of crushers and ball mills also relies on the stable power provided by the piston motor.

Shipbuilding Industry: Applied to ship steering gears, anchor windlasses, winches, propellers and other equipment. The steering control of the steering gear, the anchor - lifting and anchor - dropping operations of the anchor windlass, and the rope - winding and rope - releasing of the winch all require reliable power provided by the piston motor.

Industrial Automation Equipment: It plays an important role in large - scale material handling equipment, industrial robots, automated production lines and other fields. The long - distance and high - load transportation of material handling equipment; the joint drive of industrial robots to achieve precise motion control all rely on the high - performance output of the piston motor.

Road Machinery: Used in road mixers, cold recyclers, milling machines, pavers, asphalt distributors, etc. The drive of the mixing device of the road mixer; the crushing and mixing of old road materials by the cold recycler; the drive of the milling drum of the milling machine; the vibration of the screw conveyor and the screed of the paver are all powered by the piston motor.

FAQ

How do you ensure product reliability without in-house production?

We hold ISO 9001/TS 16949 certifications and have over 15 years of hydraulic manufacturing experience. Each batch undergoes a 5-stage quality verification, including pressure cycle testing and material composition analysis.
How to handle component failures during the warranty period?

We offer a 12-month limited warranty (covering manufacturing defects). Simply send a diagnostic video via our platform, and our engineers will confirm repair/replacement solutions online.
Can technical drawings be provided for custom projects?

After confirming the deposit, engineering schematics can be shared under an NDA. Our advanced production system shortens lead times by 30% compared to traditional suppliers.
What is the minimum order quantity (MOQ) for hydraulic valves?

Standard models have a flexible MOQ of 50 pieces. Sample orders start from 20 pieces.
How to handle urgent breakdowns?

Our national partners stock critical spare parts in 6 regional centers, with priority delivery services available at major ports.
What are the payment terms for new customers?

A 50% T/T advance payment is required for the first transaction. Payment terms can be further discussed after three consecutive successful deliveries.
Are certification documents available?

Each shipment includes CE/ISO/REACH certificates. Special certifications (e.g., ATEX) require 45 days' prior notice.
Can you provide samples?

Yes. We can supply samples for your testing and verification needs. For sample requests, please inform us of the specific product model, quantity, and any special requirements. We’ll communicate details like sample preparation time, shipping arrangements, and relevant costs (e.g., sample production fees, logistics charges; partial costs may be negotiable under certain conditions).
