Agricultural Machinery

Tailored Hydraulic Excellence for Your Agri-Machinery! We specialize in custom hydraulic solutions for agricultural equipment, combining precision engineering with responsive service. From initial consultation to after-sales support, our expert team delivers 1-on1 collaboration to ensure perfect system integration –– empowering your productivity with reliability and care!

Mini Excavators

Technical Data

Type	Displacement cm³/rev	Maximum Working Pressure	Peak Pressure Bar	Max Speed Rmp	Shaft Type	Control Method
KC-A10VO28	28	280	350	1800	Parallel keyed shaft, Splined shaft	PC,PFC,EHPC,EPSAC
KC-A10VO45	45	280	350	1800	Parallel keyed shaft, Splined shaft	PC,PFC,EHPC,EPSAC
KC-A10VO60	60	280	350	1800	Parallel keyed shaft, Splined shaft	PC,PFC,EHPC,EPSAC
KC-A10VO71	71	280	350	1800	Parallel keyed shaft, Splined shaft	PC,PFC,EHPC,EPSAC
KC-A10VO85	85	280	350	1800	Parallel keyed shaft, Splined shaft	PC,PFC,EHPC,EPSAC
KC-A10VO100	100	280	350	1800	Parallel keyed shaft, Splined shaft	PC,PFC,EHPC,EPSAC

Core product series

KC-A10VO

Working principle

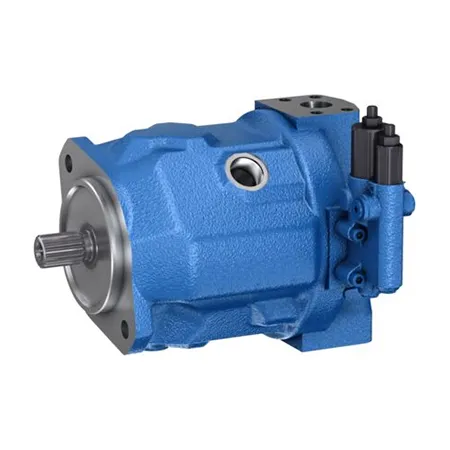

The KC-A10VO is an axial piston variable displacement pump. The pump body is mostly made of cast iron, and some key components are made of alloy steel. This endows the pump body with both good rigidity and compression resistance, and also ensures the wear resistance and fatigue resistance of the key parts under high-pressure and high-frequency operation. It can stably adapt to a variety of harsh working environments and continuously supply stable and adjustable hydraulic power for various hydraulic systems.

Advantages

Precise variable displacement: Allows for highly accurate adjustment of output flow according to system needs.

Compact and lightweight: Features a space - saving design without sacrificing performance.

Wide range of control options: Offers multiple control methods for versatile applications.

High efficiency across operating conditions: Maintains good energy efficiency in various working scenarios.

< None

> Forestry Machinery

LATEST SOLUTION

Agricultural Machinery

Core product series

KC-A10VO

Working principle

Advantages

Precise variable displacement: Allows for highly accurate adjustment of output flow according to system needs. Compact and lightweight: Features a space - saving design without sacrificing performance. Wide range of control options: Offers multiple control methods for versatile applications. High efficiency across operating conditions: Maintains good energy efficiency in various working scenarios.

Forestry Machinery

Core product series

KC-A11VO

Working principle

KC-A11VO is an axial piston variable pump with a swashplate structure. During operation, it relies on the swashplate to change the stroke of the pistons, thereby achieving flow rate adjustment. It is suitable for hydraulic transmission in open circuits, providing stable power for the system. The output flow rate can be adjusted according to actual working conditions to meet different work requirements.

Advantages

Precise flow adjustment: The swashplate allows stepless flow control, meeting various working needs. High power density: Compact size with high power output, saving space. High efficiency: Low losses ensure excellent energy conversion. Strong reliability: Durable materials resist shock and vibration.
